NIRUN RDV-2 + Pro Digital Viscometer Stepper Motor Direct Drive LCD Display

Name: NIRUN RDV-2 + Pro Digital Viscometer Stepper Motor Direct Drive LCD Display
Brand: NiRun
SKU: NB008753
Price: 3615.0 USD
Availability: InStock

$ 3615.00Ex works

Stepper motor direct drive to ensure accurate Rotation speed, Measurement accuracy +/- 1% F. S, repRoducibility +/- 0.5% F. S, can display the maximum viscosity value of the rotor at the current Rotation speed, beyond the range of alarm.

Model

Get Quote

Category : Rotational Viscometer

Brand : NiRun

SKU : NB008753

Service :The delivery and service By NBCLab.Com

Overview

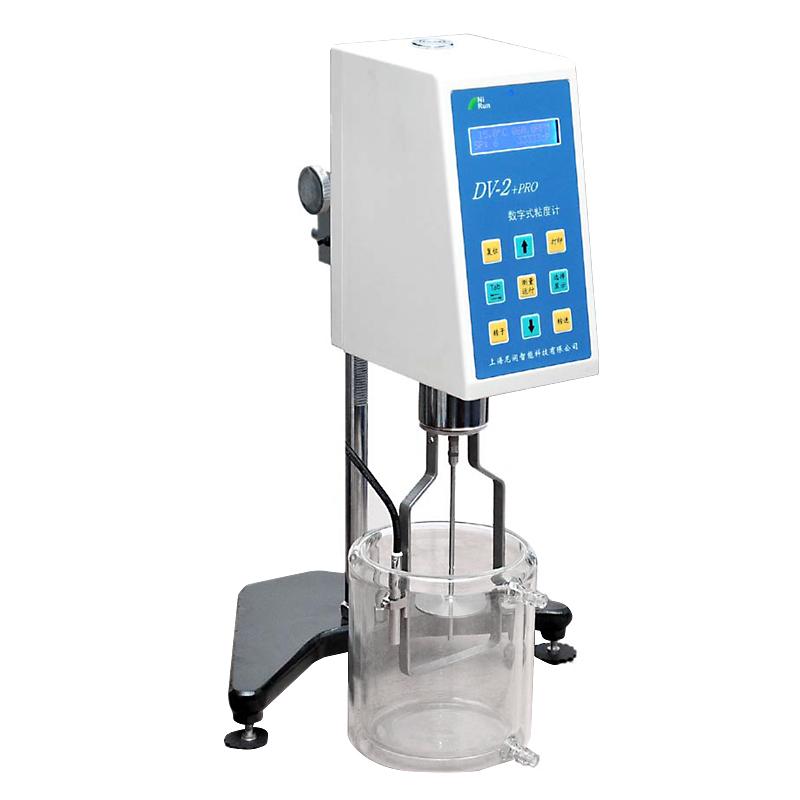

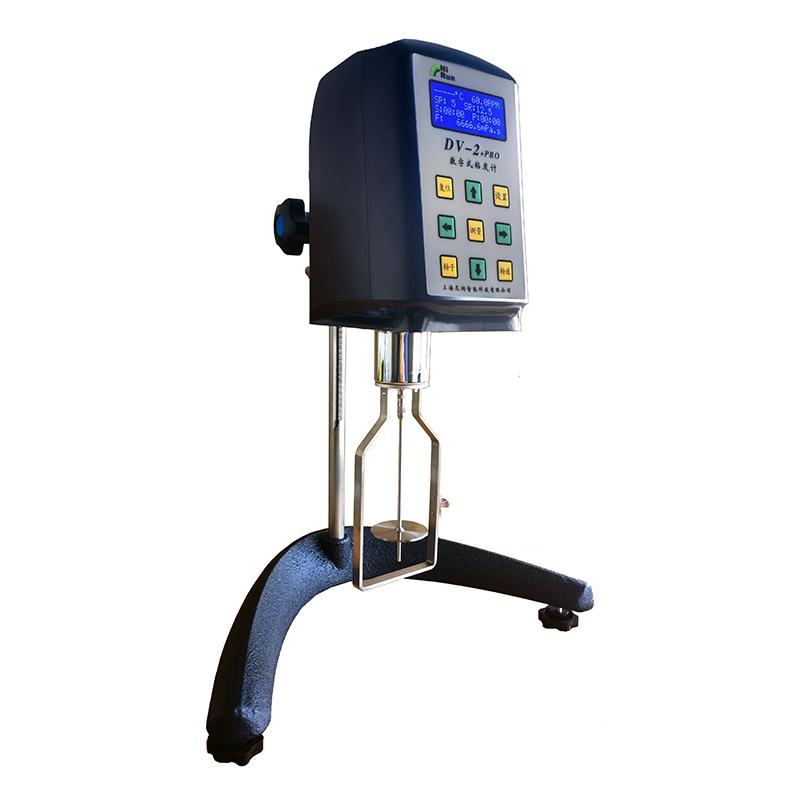

NIRUN RDV-2 + Pro Digital Viscometer is a High Accuracy measuring instrument with Stepper Motor Direct Drive and Microcomputer Control system for viscosity measurement in the range of 20 to 40000000mPa · s and LCD LCD with blue backlight display.

Features

1. Optional DV data collection and programmable software for measurement of rheological characteristics 2. Display shear rate and shear stress 3. Stepper motor direct drive, no gear, Rotation speed accurate 4. LCD liquid crystal with blue backlight, displaying a large amount of information 5. Display the maximum viscosity value of the rotor that can be measured at the current Rotation speed 6. The viscosity value shows continuous change 7. Measurement range beyond the alarm sound prompt 8. Standard RTD temperature sensor 9. Standard bidirectional RS232 or 485 interface 10. Computer full-scale linear correction 11. AC Power Adapter 100V-240V, good anti-interference

Principle

The instrument calculates the viscosity value by measuring the resistance of the sample to the rotor by directly driving the rotor to swirl/spin in the sample via a stepper motor. The microcomputer Control system processes the data and displays the shear rate, shear stress and viscosity values.

Applications

Inks, Glue, Emulsion, Solvent Adhesive, Polymer Solution, Petroleum, paints Coatings, solvents, cosmetics, milk products, products, juices

Viscosity Range
20~ 40 million mPa • s/cP (optional No. 1 rotor, the lower measurement limit can reach 5 mPa • s/cP)
Rotor speed
0.1~ 200.0 rpm stepless speed regulation
Rotor specification
6 kinds of rotors No. 2, 3, 4, 5, 6, 7 (No. 1 rotor is an optional accessory)
Measurement accuracy
+/- 1.0% (full scale)
Repeatability
0.5%
Interface
RS232 Communication interface
Power supply Voltage
AC100-240V
Input Frequency
50Hz/60Hz
output
DC17V 1.2A
Timing function
√
Shear rate index
√
shear stress index
√
Encasement material
Five-layer cardboard
collection method
continuous acquisition
sample Size
300~600 ml
Sample container Size
400 or 800 ml (optional)
protection framework
√
Lifting system
Metal lifting system
High Accuracy Stepper Motor
√
Bearing system
Ruby bearing
Torque material
beryllium bronze
Control system
Microcomputer
dedicated software
Data collection, programming, analysis
temperature sensor
PT100 temperature sensor
Encasement
aluminum alloy
Net weight
7 kg
Application
QC, studying fluid properties

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
