Overview

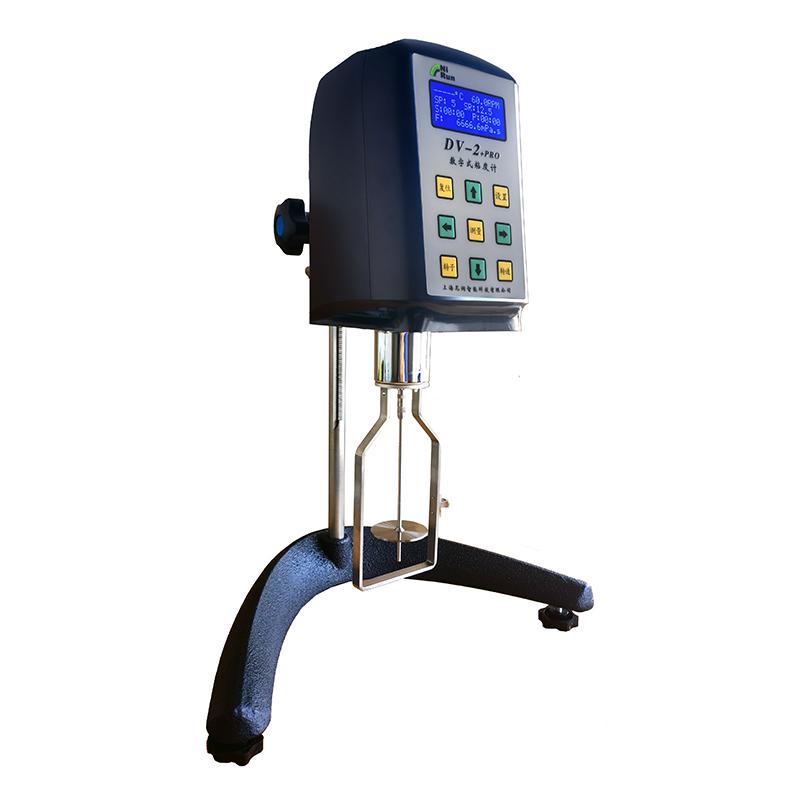

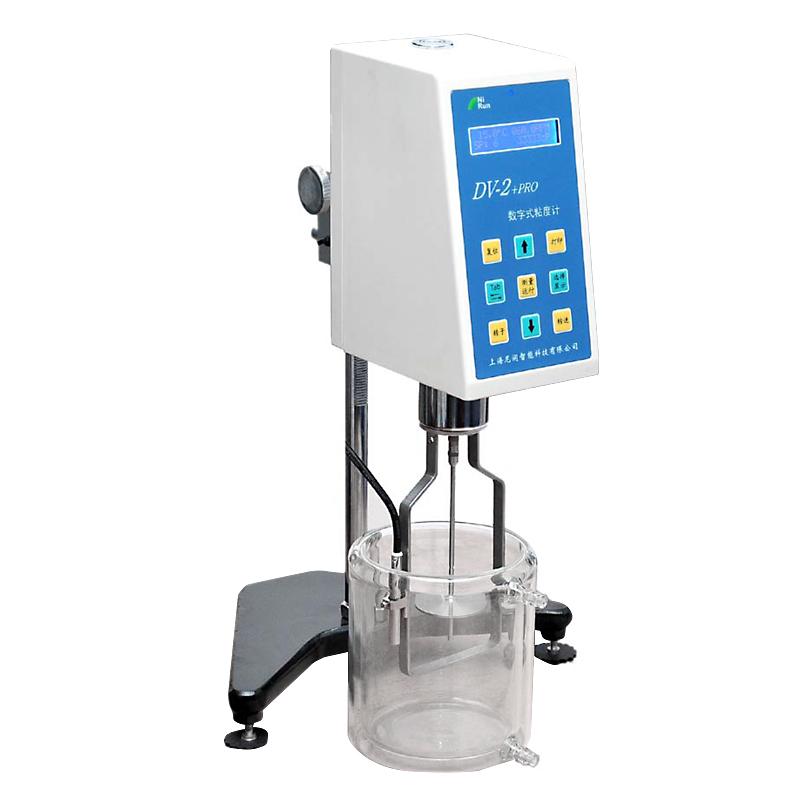

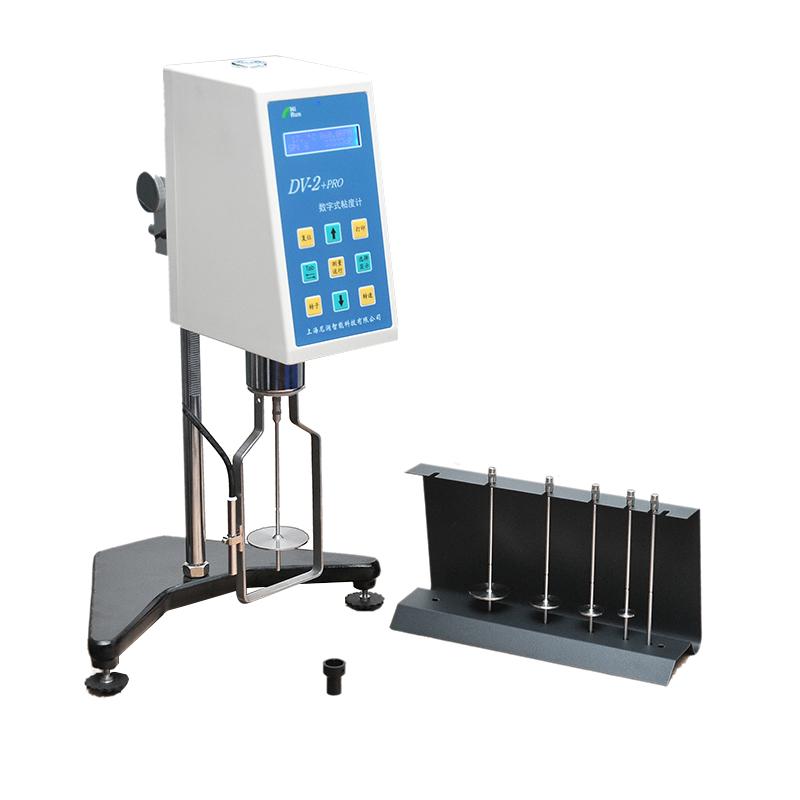

NIRUN HBDV-2 + Pro is a digital Viscometer with stepper motor direct drive and LCD LCD with blue backlight for viscosity measurement in the range of 1-6 million mPa · s (depending on rotor type). It is widely used in inks, glues, emulsions and other fluids.
Features
1. Optional DV data collection and programmable software for measurement of rheological characteristics
2. Display shear rate and shear stress
3. Stepper motor direct drive, no gear, Rotation speed accurate
4. LCD liquid crystal with blue backlight, displaying a large amount of information
5. Display the maximum viscosity value of the rotor that can be measured at the current Rotation speed
6. The viscosity value shows continuous change
7. Measurement range beyond the alarm sound prompt
8. Standard RTD temperature sensor
9. Standard bidirectional RS232 or 485 interface
10. Computer full-scale linear correction
11. AC Power Adapter 100V-240V, good anti-interference
Principle
The Viscometer swirls/spins the rotor directly through the sample with a stepper motor, measures the torque of the fluid against the rotor, calculates viscosity values in combination with Rotation speed, and displays shear rate and shear stress in real time.
Applications
Inks, Glue, Emulsion, Adhesive solvent, Polymer solution, Petroleum, paints Coatings, solvents, Cosmetics, Milk products, Juices
