Overview

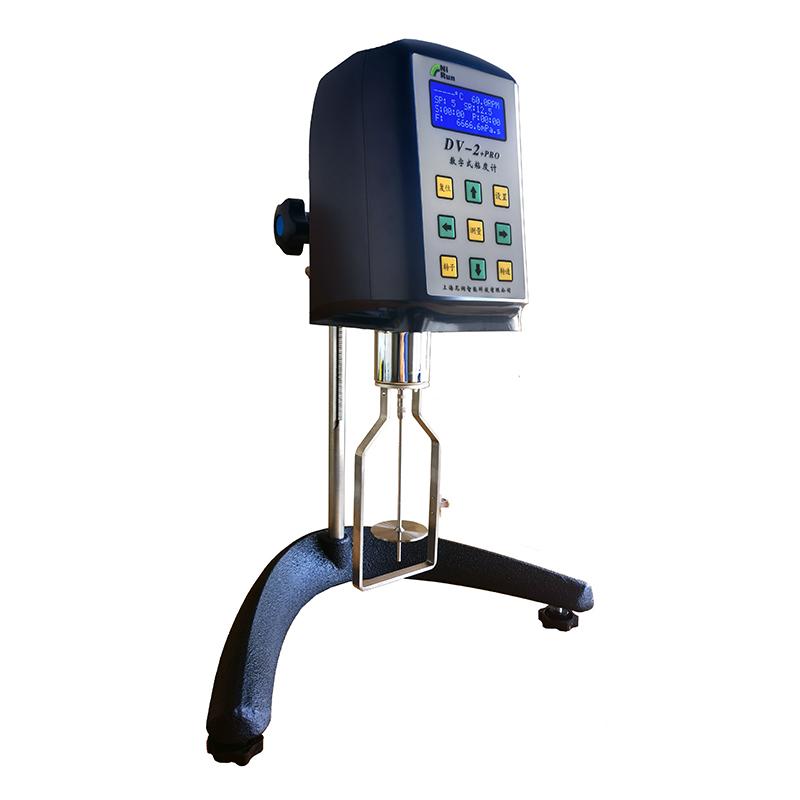

NIRUN LDV-1 + Pro is a digital Viscometer with stepper motor direct drive and LCD LCD with blue backlight for viscosity measurement in the range of 10 to 200,000mPa · s, with RTD temperature sensor and RS232 Interface.
Features
1. Optional DV data collection and programmable software for measurement of rheological characteristics
2. Display shear rate and shear stress
3. Stepper motor direct drive, no gear, Rotation speed accurate
4. LCD liquid crystal with blue backlight, displaying a large amount of information
5. Display the maximum viscosity value of the rotor that can be measured at the current Rotation speed
6. The viscosity value shows continuous change
7. Measurement range beyond the alarm sound prompt
8. Standard RTD temperature sensor
9. Standard bidirectional RS232 or 485 interface
10. Computer full-scale linear correction
11. AC Power Adapter 100V-240V, good anti-interference
Principle
The stepper motor directly drives the rotor to swirl/spin in the sample, measures torque and calculates viscosity values, while displaying shear rate and shear stress, and uses a microcomputer Control system to achieve continuously variable speed and continuous data collection.
Applications
Inks, Glue, Emulsion, Solvent Adhesive, Polymer Solution, Petroleum, paints Coatings, solvents, cosmetics, milk products, products, juices
