Overview

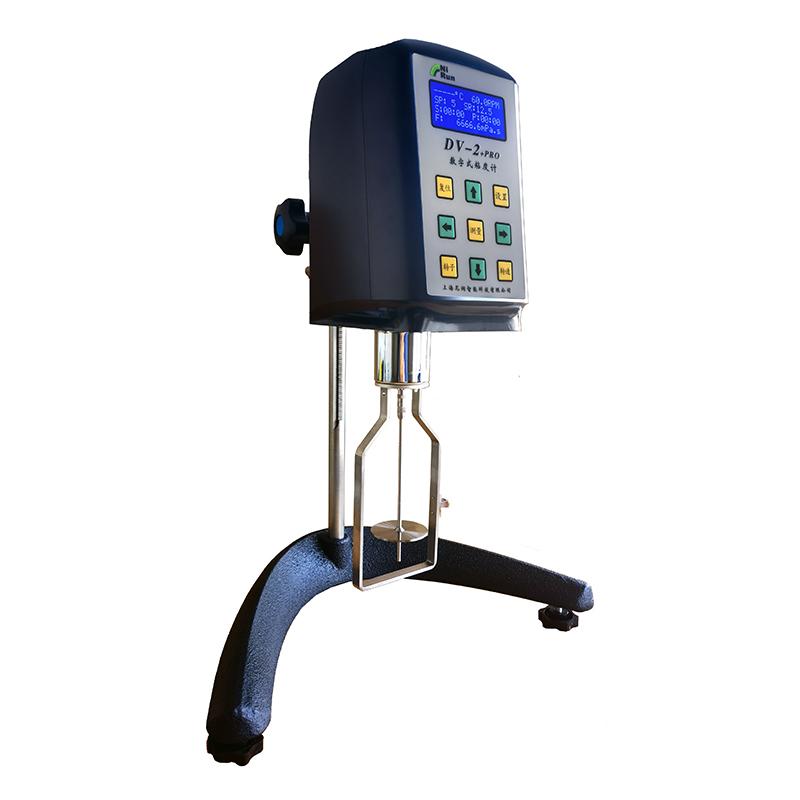

The NIRUN HADV-1 + Pro Digital Viscometer is a High Accuracy measuring instrument with stepper motor direct drive and LCD LCD with blue backlit display for continuous display of viscosity values, shear rate and shear stress. It is equipped with RTD temperature sensor and RS232/485 interface for a variety of fluid viscosity measurements.
Features
1. Optional DV data collection and programmable software for measurement of rheological characteristics
2. Display shear rate and shear stress
3. Stepper motor direct drive, no gear, Rotation speed accurate
4. LCD liquid crystal with blue backlight, displaying a large amount of information
5. Display the maximum viscosity value of the rotor that can be measured at the current Rotation speed
6. The viscosity value shows continuous change
7. Measurement range beyond the alarm sound prompt
8. Standard RTD temperature sensor
9. Standard bidirectional RS232 or 485 interface
10. Computer full-scale linear correction
11. AC Power Adapter 100V-240V, good anti-interference
Principle
The HADV-1 + Pro digital Viscometer directly drives the rotor to swirl/spin in the sample through a stepper motor, measuring the torque generated by the fluid resistance, the microcomputer system calculates the viscosity value according to the torque and Rotation speed, and displays the shear rate and shear stress in real time, enabling continuous acquisition and accurate measurement.
Applications
Inks, Glue, Emulsion, Solvent Adhesive, Polymer Solution, Petroleum, paints Coatings, solvents, cosmetics, milk products, products, juices
