Overview

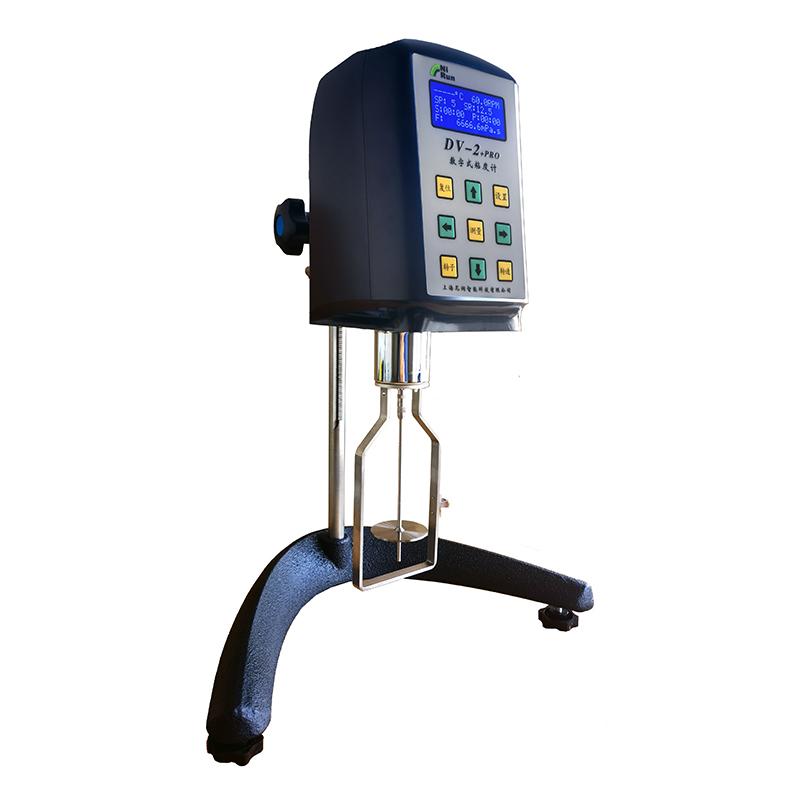

The NIRUN HBDV-1 + Pro is a digital Viscometer with stepper motor direct drive and LCD liquid crystal with blue backlight for continuous display of viscosity values, shear rate and shear stress. The device comes standard with an RTD temperature sensor and a bi-directional RS232 or 485 interface. It supports computer full-scale linear correction for a variety of fluid viscosity measurements.
Features
1. Optional DV data collection and programmable software for measurement of rheological characteristics
2. Display shear rate and shear stress
3. Stepper motor direct drive, no gear, Rotation speed accurate
4. LCD liquid crystal with blue backlight, displaying a large amount of information
5. Display the maximum viscosity value of the rotor that can be measured at the current Rotation speed
6. The viscosity value shows continuous change
7. Measurement range beyond the alarm sound prompt
8. Standard RTD temperature sensor
9. Standard bidirectional RS232 or 485 interface
10. Computer full-scale linear correction
11. AC Power Adapter 100V-240V, good anti-interference
Principle
The HBDV-1 + Pro digital Viscometer directly drives the rotor to swirl/spin in the sample through a stepper motor, and measures the torque generated by the fluid resistance. The microcomputer Control system calculates and displays the viscosity value, shear rate and shear stress in real time. The continuous acquisition method is used, combined with the PT100 temperature sensor for temperature compensation to ensure the accuracy of measurement.
Applications
Inks, Glue, Emulsion, Solvent Adhesive, Polymer Solution, Petroleum, paints Coatings, solvents, cosmetics, milk products, products, juices
Steps
1. Connect the Power Adapter and turn it on
2. Install suitable rotor and set Rotation speed
3. Pour the sample into the beaker or adapter
4. Immerse the rotor to the specified depth
5. Start the measurement and observe the LCD display
6. Optional software for data collection and analysis
7. Clean the rotor after measurement
Notice
* Power supply voltage in AC100-240V range
Check whether the rotor is firmly installed before use
* Avoid measurement of samples beyond the range of the device
Regularly clean rotors and sample containers
* Optional Accessories need to be connected correctly according to the instructions
* Note the effect of sample temperature on measurement results
