Overview

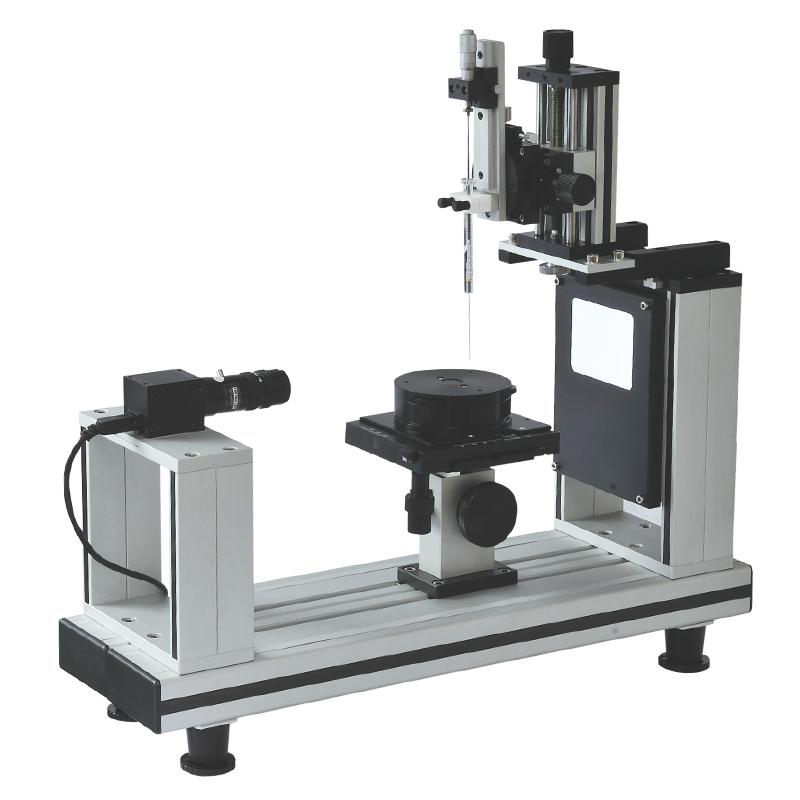

JCY-1 contact angle tester is a standard instrument of FANGRUI brand, which uses image analysis method to measure solid contact angle, surface energy and liquid surface tension. Through CCD camera and image acquisition system, with professional software to automatically analyze contact angle data, it is suitable for the measurement of various shape items, especially for the test of sample surface tension under high temperature conditions.
Features
1, using CCD camera system, the highest resolution 1280 × 1024, frame rate 15 or 45/sec
2. High Accuracy Level Control, Combining Hardware and Software Level Correction
3. Aviation aluminum body, light and stable
4, contact angle automatic calculation and left and right comparison function
5. Dynamic contact angle analysis system, including time change analysis, forward angle/backward angle, tilt angle, roll angle
6. Solid surface energy estimation, support Fowkes one-liquid method, Owen two-liquid method, Zisman method, Acid-Based method
7, the software comes with luminance correction function
8. Test methods: hanging drop method, seat drop method
9. Liquid surface tension measurement by hanging drop method
10. Database management functions: query, backup, compression, export EXCEL tables
11. The operating software is based on WIN XP and VIAST systems
Principle
The instrument uses image analysis method to capture the droplet image through CCD camera and image acquisition system, and automatically analyzes the contact angle value by software. Compared with force measurement method, image analysis method has lower environmental requirements, can measure various shape items, and supports the test of sample surface tension under high temperature conditions.
Applications
Metal welding, printing industry, adhesive research, aerospace industry, military science, oil exploration, nanomaterials research, aluminum foil hydrophilic angle determination
Steps
1. Adjust the position of the storage table (move the knobs back and forth, up and down)
2. Adjust the luminance of the backlight screen
3. Adjust the injection rack (left and right, up and down, angle fine-tuning)
4. Inject the sample using the injection knob
5. Capture images through industrial cameras
6, software automatically or manually calculate the contact angle value
Notice
• The maximum thickness of the sample does not exceed 35mm
• Power supply voltage 220V/50Hz
• Power is 0.2KW
Measurement range and resolution of surface tension are not provided
• The tilted platform is not configured and related functions are not available
