Overview

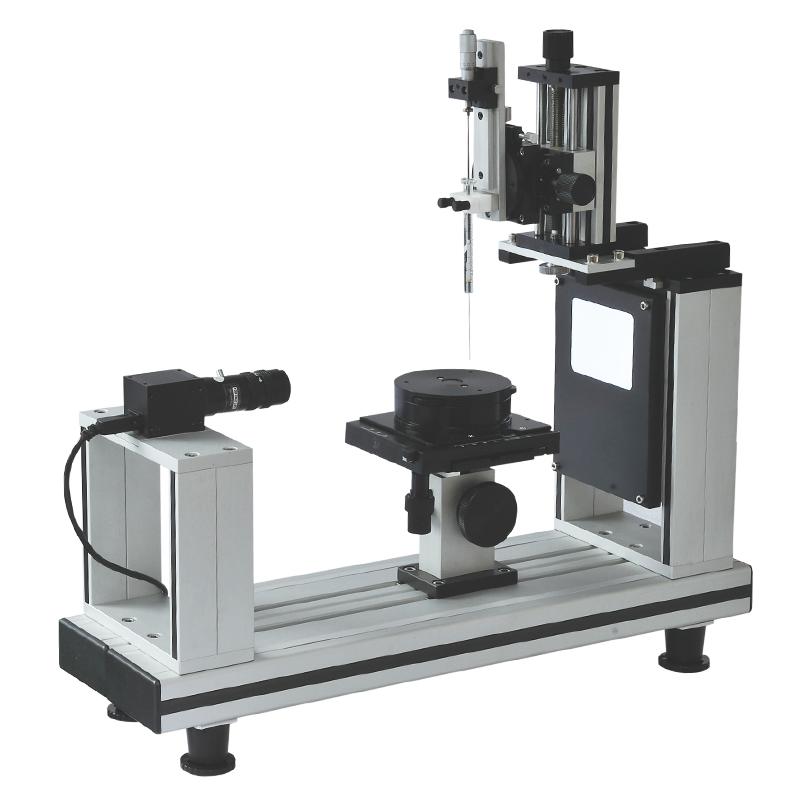

JCY-4 contact angle tester is a standard instrument of FANGRUI brand, which uses image analysis method to measure solid contact angle, surface energy and liquid surface tension. Through CCD camera and image acquisition system, with professional software to automatically analyze the contact angle value, it is suitable for the measurement of various shape items, including samples under high temperature conditions such as melted polymers.
Features
1. Adopt a new CCD camera system, the highest resolution is 1280 × 1024, the frame rate is 15 or 45/sec, and the droplet image is clearly displayed for High Accuracy Analysis
2. High Accuracy Level Control, Combined with Hardware and Software Level Correction, Ensure Accurate Contact angle Linear dispersion Baseline
3. Aviation aluminum body, light and stable
4, automatically calculate the contact angle, support left and right contact angle comparison
5, dynamic contact angle analysis system, including time-varying contact angle, forward angle/backward angle, tilt angle, rolling angle analysis
6. Solid surface energy estimation, support Fowkes one-liquid method, Owen two-liquid method, Zisman method, Acid-Based method
7. The software comes with luminance correction function, which can adjust the image luminance
8. Test methods: hanging drop method, seat drop method (static drop method)
9, surface tension measurement: hanging drop method (young's equation)
10. Database management functions: query, backup, compression, export EXCEL tables
11. The operating software is compatible with WIN XP and VIAST systems
Principle
Based on the image analysis method, the instrument captures the droplet image through the CCD camera and image acquisition system, and automatically analyzes the contact angle value using professional software. Compared with the force measurement method, the image analysis method has lower Environmental requirements and can adapt to various shapes and high temperature conditions, such as melting polymers, to ensure measurement accuracy and wide applicability.
Applications
Metal welding process detection of flux adhesion, printing industry inks and metal or paper adhesion, adhesive and solid adhesion degree research, aerospace industry rain fog on aircraft matrix wetting degree detection, military science shrapnel and rain fog contact angle determination, oil extraction additives and crude oil advance angle and retreat angle determination, nano materials and active agent wettability determination, aluminum foil hydrophilic angle determination
Standards
ASTM D 724、ASTM D 5946、ISO15969
Steps
1. Adjust the position of the storage table and use the front and rear, up and down movement knobs
2. Adjust the luminance of the backlight screen to ensure clear images
3. Adjust the position of the injection rack, including left and right, up and down, and angle fine-tuning
4. Inject the sample through the injection knob
5. Use the injection needle for manual injection
6. Start the industrial camera to capture images
7. Run the software to automatically analyze the contact angle value, choose theta/2 method or tangent method
8. Perform dynamic contact angle analysis or surface tension measurement as required
9. Use database functions to manage data, such as queries, backups, or exports
Notice
- Power supply voltage is 220V/50Hz to avoid voltage instability affecting equipment operation
The maximum thickness of the sample does not exceed 35mm to prevent measurement errors
- When using manual Sample injector, pay attention to smooth operation to avoid uneven droplets
Periodically check level controls, combined with hardware and software corrections, to ensure Baseline accuracy
When testing under high temperature conditions, pay attention to safety protection to avoid burns
Software operation is based on WIN XP or VIAST system to ensure compatibility
- Adjust LED Cold Illuminant luminance during image acquisition for clear profile
- Regular backup of data during database management to prevent loss
