Overview

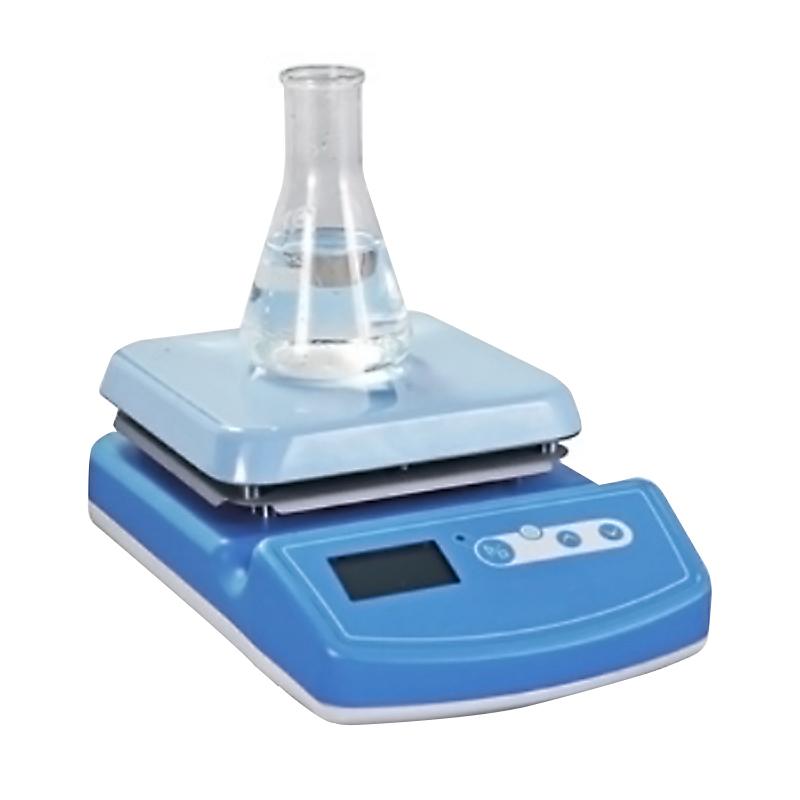

YIHENG IT-07A3 thermostatic Magnetic Stirrer is a heating type Magnetic Stirrer. The external temperature sensor can directly measure and control the temperature of the liquid in the container, with high measurement accuracy. The maximum stirring capacity is 3 liters, and the Heating power is 450W. The swirl/spin magnetic field is driven by the micro-motor to drive the swirl/spin magnetic field to drive the stirrer to rotate, and the liquid in the container is stirred, mixed or assisted by heating, so that the solution is fully mixed at the set temperature.
Features
1. LCD screen, Menu Operating interface, Temperature, Rotation speed and countdown parameters such as a screen display, easy to understand
2. Microcomputer control technology ensures that Rotation speed remains constant when stirring viscosity changes
3. Aluminum alloy die casting shell, high temperature resistance, corrosion resistance, easy to clean
4. The countertop is made of aluminum alloy die-casting, and the external spray enamel material has good thermal conductivity and corrosion resistance, smooth and easy to clean without contaminants
5. Large output torque, suitable for stirring low viscosity large capacity or high viscosity small capacity solution
6. There is an anti-corrosion liquid conducting tank above the control panel, and the liquid overflow will not damage the internal electronic devices
Principle
The thermostatic Magnetic Stirrer is driven by a micro-motor to generate a swirl/spin magnetic field, which drives the stirrer in the container to rotate, so as to stir, mix or assist in heating the liquid in the container, so that the solution is fully mixed at the set temperature.
Applications
Biology, chemistry
Standards
Temperature deviation protection, anti-scalding warning light, special protection
Steps
1. Connect the temperature sensor
2. Set the required temperature, Rotation speed and countdown parameters
3. Stirrer to work
Notice
• Temperature deviation protection: heating will stop when the measured temperature exceeds the set temperature of 10 ℃ -30 ℃
• Anti-scalding warning light: When the temperature of the working disc exceeds 55 ° C, the indicator light flashes to remind that it cannot be touched.
• Optional all-round anti-scalding cover provides additional protection
