Overview

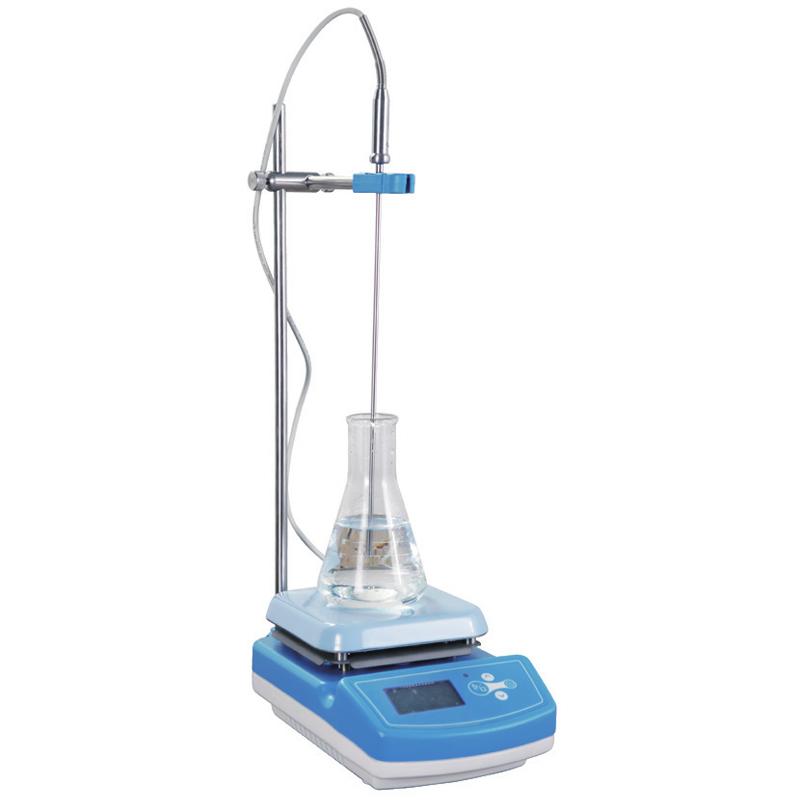

YIHENG IT-09A5 Magnetic heating Stirrer is a thermostatic Magnetic Stirrer with a maximum stirring capacity of 5 liters and a Heating power of 550W. The product uses an aluminum alloy die-cast shell with high temperature and corrosion resistance. It is equipped with microcomputer control technology. When the measured temperature exceeds the set temperature, the heating will be automatically stopped to ensure accurate and reliable temperature control.
Features
1. LCD screen, Menu Operating interface, Temperature, Rotation speed and countdown parameters such as a screen display, easy to understand, easy to observe and operate.
2. With microcomputer control technology, ensure that the Rotation speed remains constant when the stirring viscosity is constantly changing.
3. Aluminum alloy die-casting shell, with high temperature resistance and corrosion resistance and easy cleaning.
4. The countertop is die-cast from aluminum alloy material, and the external spray enamel material has both good thermal conductivity and corrosion resistance. The smooth mixing countertop is easy to clean and has no contaminants to stay.
5. High output torque, suitable for stirring solutions with low viscosity and large capacity or high viscosity and small capacity.
6. The top of the control panel is designed with anti-corrosion liquid conduction tank, even if the liquid overflows during stirring, it will not cause damage to the electronic devices in the Stirrer.
Principle
The magnetic heating Stirrer is driven by a micro-motor to generate a swirl/spin magnetic field to drive the stirrer in the container to rotate, so that the liquid in the container is stirred, mixed or assisted by heating, so that the solution is fully mixed at the set temperature.
Applications
Biology, chemistry
Steps
1. Connect the power supply and turn on the device.
2. Set the required temperature, Rotation speed and countdown parameters through the LCD screen.
3. Place the container and stirrer to start the stirring function.
4. Monitor the parameters on the display screen to ensure the normal operation of the equipment.
Notice
• Temperature deviation protection: when the measured temperature exceeds a certain value of the set temperature (10 ℃ -30 ℃), heating will be stopped.
• Anti-scalding warning light: If the temperature of the working disc exceeds 55 ° C, the indicator light flashes to remind the user that the working disc cannot be touched.
• Special protection: Optional all-round anti-scalding cover to enhance safety protection.
