Overview

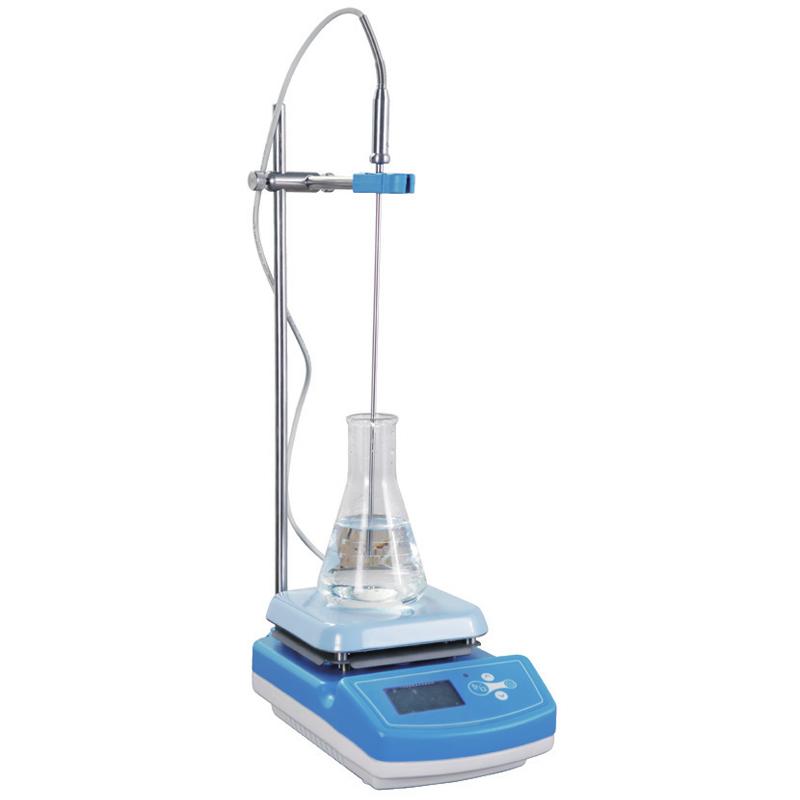

YIHENG IT-09A12 Magnetic Stirrer is a thermostatic Magnetic Stirrer with a maximum stirring capacity of 12 liters and a Heating power of 750W. It uses a micro-motor to drive a high temperature resistant strong magnet swirl/spin to generate a swirl/spin magnetic field, which drives the stirrer in the container to rotate, so as to stir, mix or assist heating the liquid in the container, so that the solution can be fully mixed at the set temperature, suitable for biological, chemical and other fields.
Features
1. Aluminum alloy die-casting shell, with high temperature resistance, corrosion resistance and easy cleaning.
2. LCD screen, Menu Operating interface, Temperature, Rotation speed and countdown parameters such as a screen display, easy to understand, easy to observe and operate.
3. Microcomputer control technology ensures that the Rotation speed remains constant when the stirring viscosity is constantly changing.
4. The countertop is die-cast from aluminum alloy material, and the external spray enamel material has both good thermal conductivity and corrosion resistance. The smooth mixing countertop is easy to clean and has no contaminants to stay.
5. High output torque, suitable for stirring solutions with low viscosity and large capacity or high viscosity and small capacity.
6. There is an anti-corrosion liquid conducting tank above the control panel, even if the liquid overflows during stirring, it will not cause damage to the electronic devices.
Principle
The Magnetic Stirrer is driven by a micro-motor to generate a swirl/spin magnetic field, which drives the stirrer in the container to rotate, so as to stir, mix or assist in heating the liquid in the container, so that the solution is fully mixed at the set temperature.
Applications
Biology, chemistry
Notice
• Temperature deviation protection: when the measured temperature exceeds a certain value of the set temperature (10 ℃ -30 ℃), heating will be stopped.
• Anti-scalding warning light: If the temperature of the working disc exceeds 55 ° C, the indicator light flashes to remind the user that the working disc cannot be touched.
• Special protection: all-round anti-scalding cover (optional accessories).
