Overview

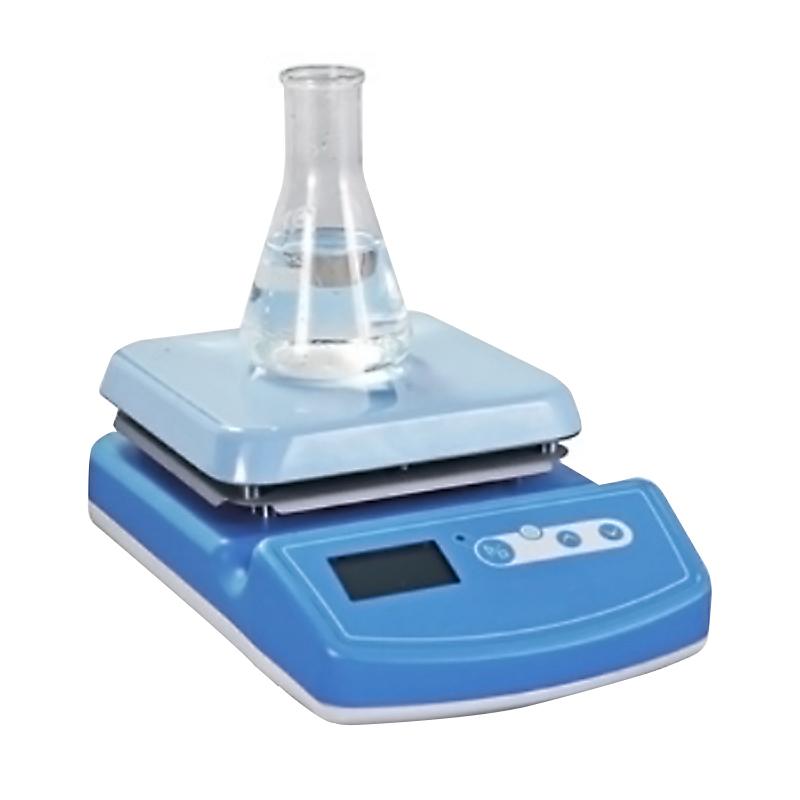

YIHENG IT-07B3 Magnetic Stirrer belongs to heating Magnetic Stirrer, which can measure the temperature of the working plate and has a maximum stirring capacity of 3 liters. This product is widely used in biological, chemical and other fields. It adopts aluminum alloy die-cast shell and has high temperature resistance, corrosion resistance and long service life.
Features
1. LCD screen, Menu Operating interface, Temperature, Rotation speed and countdown parameters such as a screen display, easy to understand, easy to observe and operate
2. With microcomputer control technology, ensure that the Rotation speed remains constant when the stirring viscosity is constantly changing
3. Aluminum alloy die-cast shell, with high temperature resistance and corrosion resistance and easy cleaning
4. The countertop is die-cast from aluminum alloy material, and the external spray enamel material has both good thermal conductivity and corrosion resistance. The smooth mixing countertop is easy to clean and no pollutants stay
5. Large output torque, suitable for stirring solutions with low viscosity and large capacity or high viscosity and small capacity
6. There is an anti-corrosion liquid conducting tank above the control panel, even if the liquid overflows during stirring, it will not cause damage to the electronic devices in the Stirrer
Principle
IT-07B3 Magnetic Stirrer is driven by a micro-motor to generate a swirl/spin magnetic field, which drives the stirrer in the container to rotate, so as to stir, mix or assist in heating the liquid in the container, so that the solution is fully mixed at a set temperature.
Applications
Biology, chemistry
Steps
Step 1 Put the mixer into a container
2. Place the container on the work surface
3. Operating interface settings required temperature, Rotation speed and other parameters
4. Start the equipment to start stirring and heating
Notice
• Temperature deviation protection: heating will be stopped when the measured temperature exceeds a certain value of the set temperature
• Anti-scalding warning light: When the temperature of the working disc exceeds 55 ° C, the indicator light flashes to remind the user not to touch it
• Optional all-round anti-scalding cover provides additional protection
• Please confirm that the maximum mixing capacity is 3L before use
• Note that the working plate Temperature range is RT + 5~ 320 ℃
• Keep equipment clean to avoid contaminants from staying
