Overview

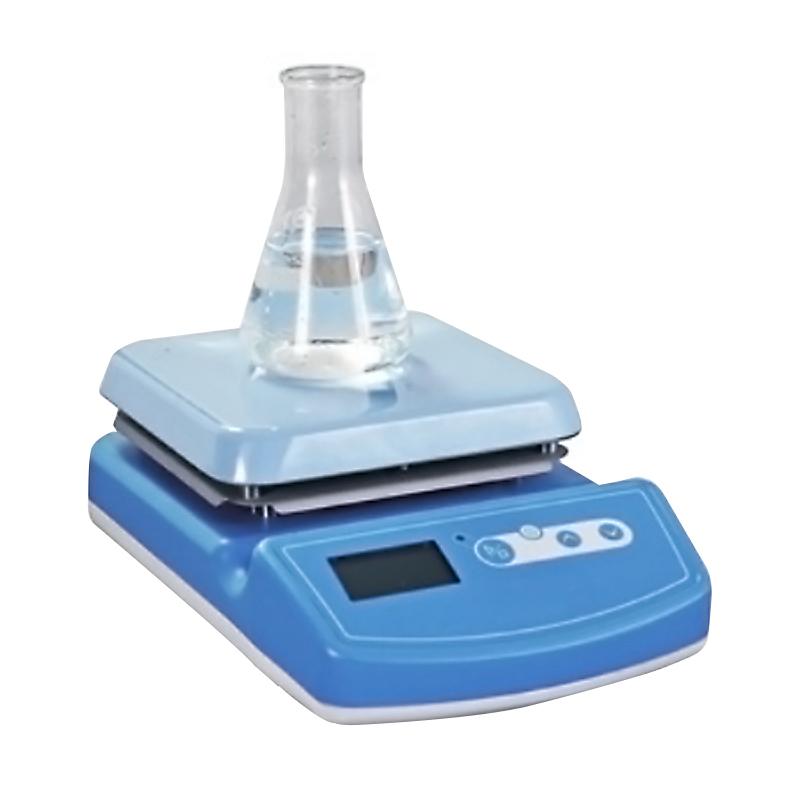

YIHENG IT-09B15 Magnetic Stirrer is a heating electromagnetic Stirrer with a maximum temperature of 450 ° C and a maximum stirring capacity of 15 liters. The equipment can measure the temperature of the working plate, automatically stop heating when the measured temperature exceeds the set value, and can be equipped with an all-round anti-scalding cover for Safety protection, suitable for biological, chemical and other fields, high safety.
Features
1. LCD screen, Menu Operating interface, Temperature, Rotation speed and countdown parameters such as a screen display, easy to understand, easy to observe and operate.
2. With microcomputer control technology, ensure that the Rotation speed remains constant when the stirring viscosity is constantly changing.
3. Aluminum alloy die-casting shell, with high temperature resistance and corrosion resistance and easy cleaning.
4. The countertop is die-cast from aluminum alloy material, and the external spray enamel material has both good thermal conductivity and corrosion resistance. The smooth mixing countertop is easy to clean and has no contaminants to stay.
5. High output torque, suitable for stirring solutions with low viscosity and large capacity or high viscosity and small capacity.
6. The top of the control panel is designed with anti-corrosion liquid conduction tank, even if the liquid overflows during stirring, it will not cause damage to the electronic devices in the Stirrer.
Principle
IT-09B15 Electromagnetic Stirrer is driven by a micro-motor to generate a swirl/spin magnetic field by a high temperature resistant strong magnet swirl/spin, which drives the stirrer in the container to rotate, thereby stirring, mixing or auxiliary heating of the liquid in the container, so that the solution is fully mixed at a set temperature.
Applications
Biology, chemistry
Notice
• Temperature deviation protection: when the measured temperature exceeds a certain value of the set temperature (10 ℃ -30 ℃), heating will be stopped.
• Anti-scalding warning light: If the temperature of the working disc exceeds 55 ° C, the indicator light flashes to remind the user that the working disc cannot be touched.
• Special protection: Optional all-round anti-scalding cover for additional safety protection.
