Overview

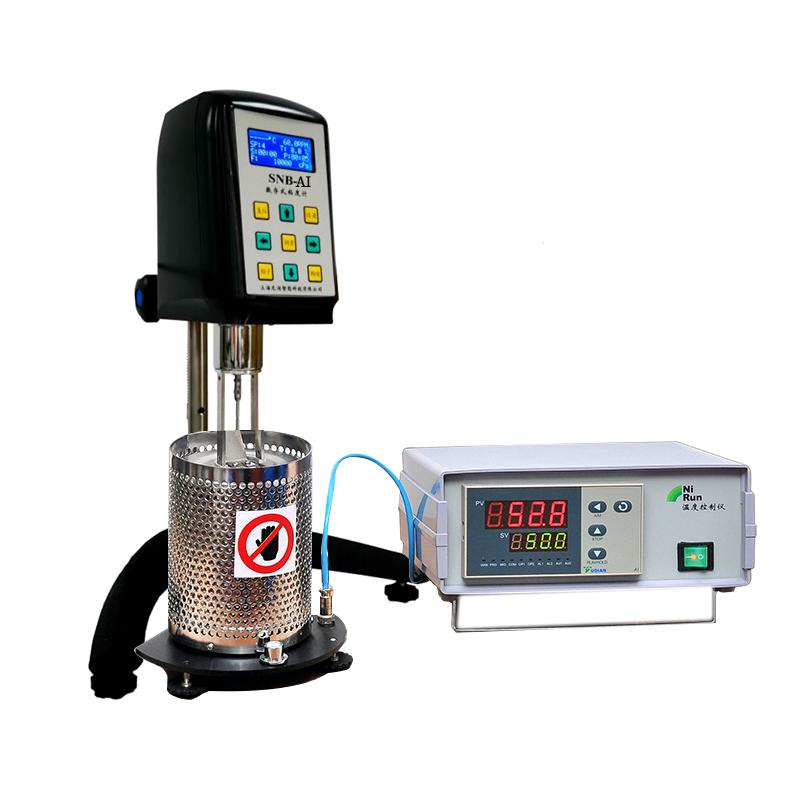

NIRUN SNB-AI Digital Viscometer is a High Accuracy measuring instrument with an improved 16-bit microcomputer processor as the core. It has the characteristics of strong anti-interference performance, accurate Rotation speed and clear display. It is widely used in a variety of fluid viscosity measurement.
Features
1. Using an improved 16-bit microcomputer processor as the core, the anti-interference performance is greatly improved
2. Digital LCD 4-line digital display with blue backlight function
3. Optional SNB data collection and drawing software
4. Stepper motor direct drive, no gear, Rotation speed accurate
5. Display the maximum viscosity value of the rotor that can be measured at the current Rotation speed
6. Measurement timing function, printing time interval setting, Viscosity unit selection
7. The viscosity value shows continuous change, and there is an alarm sound beyond the Measurement range
8. Standard RTD temperature sensor, computer full scale linear correction
9. AC Power Adapter 100V-240V, good anti-interference
Principle
The instrument drives the rotor swirl/spin directly through the stepper motor, and the gearless design ensures the accurate Rotation speed; the improved 16-bit microcomputer processor is used to process the measurement data, and the temperature is monitored in real time through the RTD temperature sensor to achieve full-scale linear correction and accurate measurement of fluid viscosity.
Applications
Inks, Glue, Emulsion, Solvent Adhesive, Polymer Solution, Petroleum, paints Coatings, solvents, cosmetics, milk products, products, juices
Steps
1. Connect the Power Adapter and turn it on
2. Choose the right rotor and Rotation speed
3. Pour the sample into the container
4. Start the measurement, the instrument automatically displays the viscosity value
5. If you need data logging, you can connect to SNB data collection software
6. Shut down and clean the instrument after measurement
Notice
• Power supply voltage within AC100-240V range before use
• Pay attention to the viscosity measurement range when selecting the rotor
Measurement range beyond the instrument will issue an alarm sound, need to be adjusted in time
• Regularly clean rotors and measurement containers
• Avoid use in strong electromagnetic interference environments
• For precise temperature control, special viscosity measurement Thermostatic water bath is available
