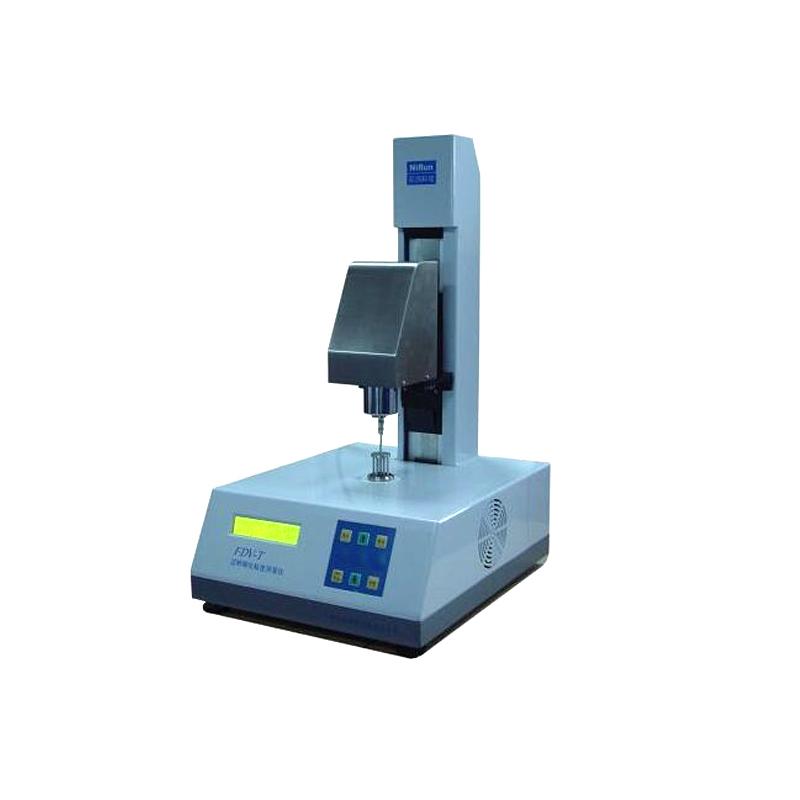

NIRUN FDV-T Starch Viscosity-Tester Starch Gelatinization Viscosity Test Device

Name: NIRUN FDV-T Starch Viscosity-Tester Starch Gelatinization Viscosity Test Device
Brand: NiRun
SKU: NB008854
Price: 16115.0 USD
Availability: InStock

$ 16115.00Ex works

Automatic lifting and stepless speed regulation function, viscosity range of 50~ 1000000mPa · s, built-in temperature program temperature control accuracy +/- 0.1 ℃, fully automatic gelatinization Linear dispersion analysis.

Model

FDV-T

Get Quote

Category : Other Viscometers

Brand : NiRun

SKU : NB008854

Service :The delivery and service By NBCLab.Com

Overview

NIRUN FDV-T Starch Viscosity-Tester is a professional instrument for starch viscosity measurement, with automatic lifting and Rotor speed stepless adjustable function, built-in automatic temperature program control, support real-time data display and automatic measurement.

Features

1. Viscosity-Tester automatic lifting, Viscosity-Tester Rotor speed stepless adjustable (0.1-300 rpm) 2. Built-in automatic optimized temperature program control (adjustable rise/fall rate, rise/fall rate up to 8 degrees/minute) 3. One special starch F1 rotor, sample volume 10ml 4. Temperature measurement directly in the sample material 5. Fully automatic measurement and sample data evaluation are fully automated by FDV starch gelatinization viscosity characteristics Linear dispersion analysis software 6. Real-time display: Measurement time progress, current measured temperature, set temperature, measured viscosity value

Principle

The instrument uses a stepless adjustable rotor to swirl/spin viscosity measurement in the sample, combined with the built-in Temperature Control system to measure the temperature directly in the sample, and automatically performs measurement and Data analysis using FDV software to display key parameters in real time.

Steps

Prepare a 10ml sample and use a dedicated F1 rotor 2. Set temperature program and Rotation speed by software 3. Start automatic measurement process 4. Real-time monitoring and display data 5. Software automatically completes data evaluation and Linear dispersion analysis

Rotor speed
0.1~ 300 rpm (continuously variable speed)
Number of rotors
1 F1 rotor
sample Size
10ml
Temperature Range
-1~ 150℃ (built-in automatic optimized temperature program control, adjustable rise/fall rate, rise/fall speed up to 8/min, temperature control accuracy +/- 0.1)
Temperature control accuracy
±0.1℃
Measurement accuracy
±2.0%（F/S）
Repeatability
1.0%（F/S）
configuration
FDV data collection and programmable analysis software (RS232-USB interface)

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
