Overview

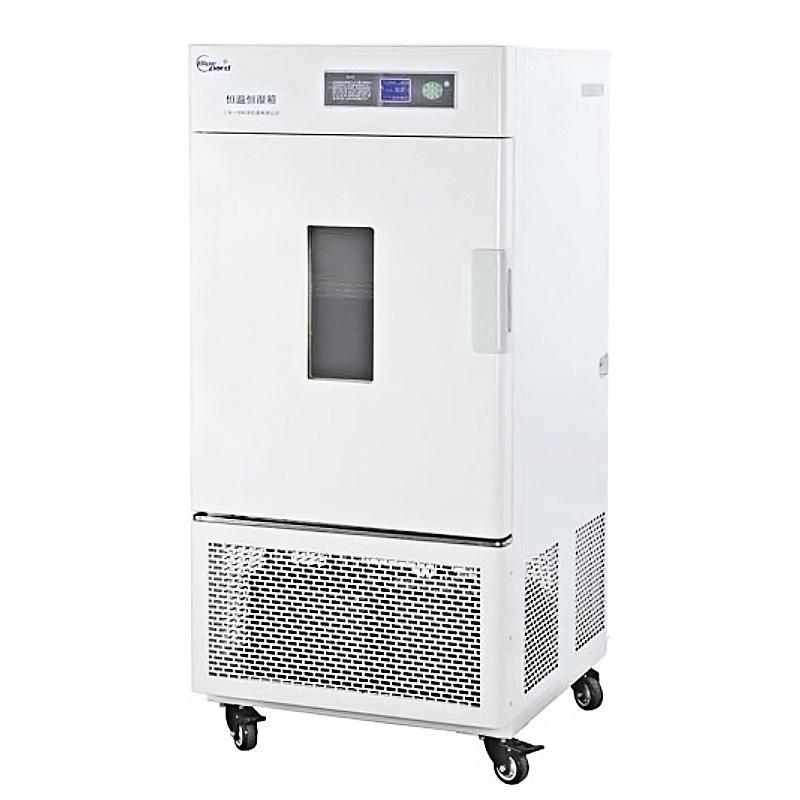

YIHENG LHS-250SC humidity chamber is a simple Constant Temperature and Humidity Chamber with a new fluorine-free design. Temperature resolution is 0.1 ° C and Humidity Control Range is 60~ 85% RH. The equipment is used to test the performance of materials in various environments and test the heat resistance, cold resistance, dry resistance and moisture resistance of various materials.
Features
1. Adopt a new fluorine-free design
2, mirror stainless steel liner, four corners half arc easy to clean, shelf spacing adjustable
3. Humidity Sensor, Microcomputer Temperature Humidity Controller, Accurate and Reliable Temperature Control
4. Equipped with an independent temperature limit alarm system, which automatically interrupts when the temperature exceeds the limit to ensure the safe operation of the experiment (optional)
5. Can be equipped with RS485 interface, used to connect to the computer, can record the change of temperature and Humidity parameters (optional)
6. There is a 25mm diameter test hole on the left side of the box, which is convenient for experimental operation and testing (optional).
Principle
Humidity environment in the humidity chamber is precisely controlled by a microcomputer temperature Humidity controller, and Humidity Sensor is used to monitor Humidity changes, so as to realize the performance test of materials under various environment conditions.
Applications
Material performance testing, heat test, cold test, dry test, moisture test
Steps
1. Connect power supply AC220V 50HZ
2. Set Required Temperature and Humidity Parameters
3. Place the test sample on the shelf
4. Start the device for testing
5. Experimental operation and monitoring through test holes (optional)
6. Running time can reach 180 hours
Notice
• Independent temperature limit alarm system, RS485 interface, and test hole are all optional accessories, and users need to buy them separately.
• Working ambient temperature range is 5~ 35 ℃
• This model is simple and cannot be equipped with an optional printer.
• Humidity fluctuates greatly and cannot operate for a long time
• Net weight of equipment 190Kg, be careful when handling
