Overview

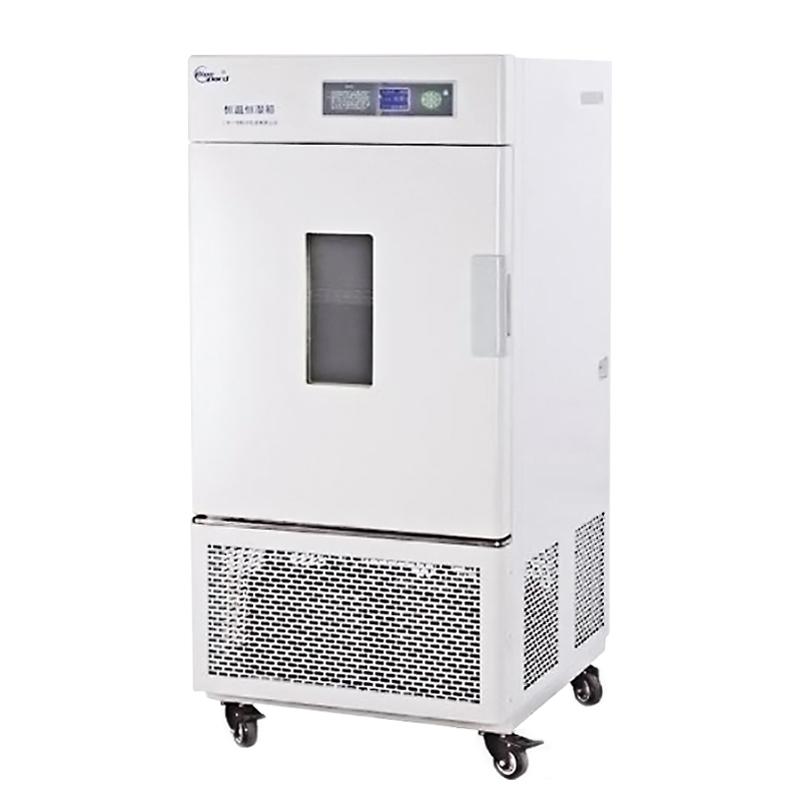

YIHENG LHS-100CL Constant Temperature and Humidity Chamber adopts equilibrated control, including refrigeration system, and needs to be used at Ambient Temperature not higher than 27 ° C. Humidity Control Range is 45~ 95% RH, Temperature range is -10~ 85 ° C. The product is fully fluorine-free design, with precise temperature and Humidity Control system, which can provide various simulated environmental conditions required for industrial research and biotechnology testing.
Features
1. Adopt a new fluorine-free design
2. Mirror stainless steel liner, four corners and half arcs are easy to clean, and the shelf spacing in the box is adjustable
3. Microcomputer Temperature and Humidity Controller, TMHM equilibrating Conditioning method, stable operation, accurate, safe and reliable temperature and humidity control
4. Equipped with an independent temperature limit alarm system, which automatically interrupts when the temperature exceeds the limit to ensure the safety of the experiment
5. There is a 25mm diameter test hole on the left side of the box, which is convenient for experimental operation and Measuring temperature
6. Can be equipped with recorder to record temperature Humidity Linear dispersion (optional)
Principle
The LHS-100CL Constant Temperature and Humidity Chamber adopts the TMHM equilibrated Conditioning method, and the environment in the box is precisely controlled by the microcomputer temperature and Humidity controller to achieve stable temperature and Humidity regulation. Key components such as controllers and Compressors are imported to ensure reliable operation.
Applications
Spinning & weaving, Food processing and other aseptic tests, Stability inspection, Raw material performance testing of industrial products, Encasement testing, product life testing
Steps
1. Ensure that the Working Ambient Temperature is within the range of 5~ 30 ℃
2. Connect the AC220V50HZ power supply (LHS-100CB is AV380V50HZ)
3. Set the required temperature and Humidity parameters through the microcomputer temperature and Humidity controller
4. The test hole on the left side of the box can be used for experimental operation and temperature measurement
5. Optional recorder to record Humidity Linear dispersion
Notice
• Operating Environment Temperature not higher than 27 ℃
• It is necessary to ensure good heat dissipation conditions
• When the temperature exceeds the limit, the system will automatically interrupt to ensure safety
• Working ambient temperature range is 5~ 30 ℃
• Power supply voltage requirements: AC220V50HZ (LHS-100CB is AV380V50HZ)
