Overview

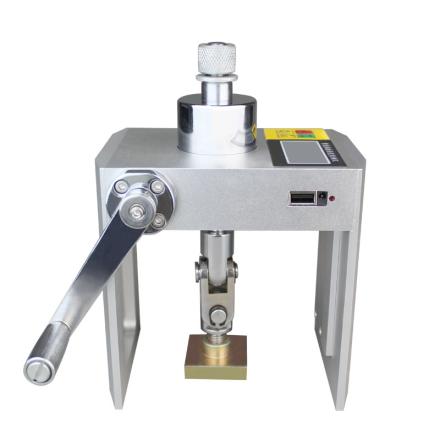

RUNJIE RJ-6000C Bond strength tester is a professional testing equipment with aluminum alloy main structure, built-in micro hydraulic system and embedded digital pressure meter. The instrument is suitable for bond strength detection of various materials such as exterior facing bricks and thermal insulation materials. High Accuracy and Reliability, three years of quality assurance.
Features
1. Aluminum alloy body, high accuracy, small error
2. Built-in micro hydraulic system
3. Equipped with embedded digital pressure gauge
4. Chinese setting menu, with peak, clear, store, query, delete functions
5. Numerical 5-segment polyline correction to ensure instrument accuracy
6. Ultra-low power design, automatic shutdown without operation, Continuous Operating Time can exceed 200 hours
7. Measurement modes of strength (MPa) and force value (KN)
Principle
Measurement accuracy is ensured by the embedded digital pressure meter to monitor and display the force data in real time. Measurement accuracy is ensured by the 5-segment fold line numerical correction.
Applications
Bond strength testing of exterior tiles, exterior insulation materials, mosaics, various plates, paints and other materials
Standards
JGJ110-97、JGJ126-2000、JGJ144-2004、JG158-2004、JG149-2003、GB/T 5210-2006、TB-T2965-2011
Steps
1. Power on and select Measurement mode (MPa or KN)
2. Install the instrument on the surface of the material to be tested
3. Manually apply tension
4. Observe the display reading, and the instrument automatically maintains the peak value
5. Store or query measurement data
6. Clear and shut down after use
Notice
• Make sure the instrument is fully charged before use
• Correct choice of Measurement mode (MPa or KN)
• Ensure full contact with the test surface during installation
• Avoid exceeding the range of 6.000KN/3.75Mpa
• Regularly calibrate the instrument
• Automatic shutdown to save power when not in use for a long time
• Secure stored measurement data
