Overview

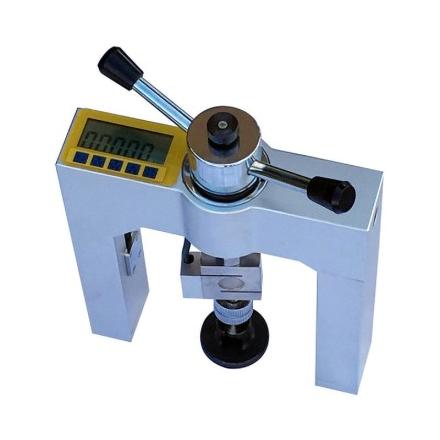

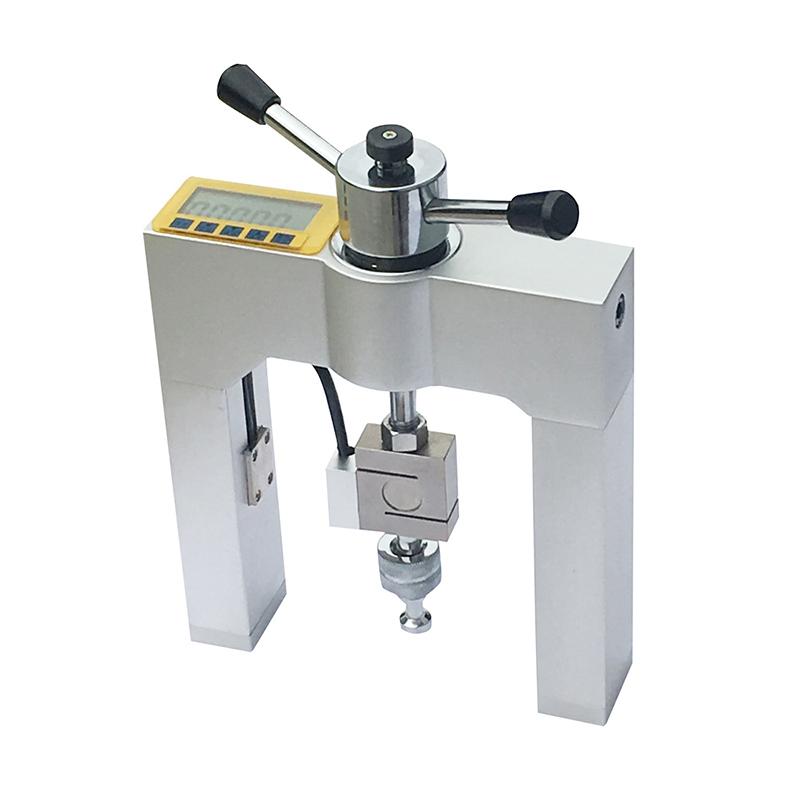

RJTJ-10 Bond strength tester is a RUNJIE brand instrument used to detect the tensile bond strength between carbon fiber sheet and concrete in civil construction structures. It can be verified or calibrated by any domestic appraisal agency and issued with corresponding certificates.
Features
1. Light alloy body, S-type tensile Sensor, the highest accuracy in China;
2. Built-in micro hydraulic system;
3. Equipped with an embedded digital pressure gauge;
4. Chinese setting menu, with peak, clear, store, query, delete functions;
5. Value 5-segment polyline correction to ensure instrument accuracy;
6. Ultra-low power design, automatic shutdown without operation, Continuous Operating Time can exceed 200 hours;
7. Measurement modes of strength (MPa) and force value (KN).
Principle
Driven by a built-in micro hydraulic system, the detector uses S-type Tension Sensor for accurate measurement, displays data in real time through an embedded digital pressure meter, and uses the numerical 5-segment polyline correction technology to ensure Measurement accuracy and realize the detection of tensile bond strength between carbon fiber sheet and concrete.
Applications
Civil building structure
Steps
1. Manual operation measurement;
2. Use the Chinese menu to set parameters;
3. Perform peak, clear, store, query or delete function operations;
4. The instrument automatically shuts down or waits for automatic shutdown when there is no operation.
Notice
• Ensure that the instrument is used within the range.
Periodic verification or calibrating to maintain accuracy;
• Pay attention to the ultra-low power consumption design, and automatically shut down when there is no operation;
Store no more than 500 pieces of data.
• Keep it properly after use to avoid damage to the main aluminum alloy material.
