Overview

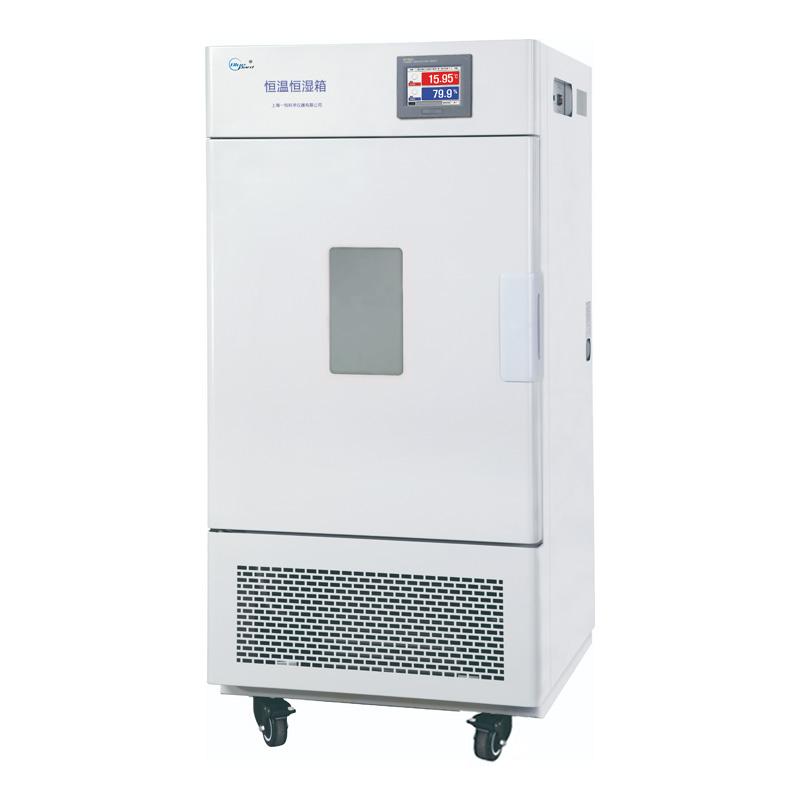

YIHENG BPS-100CH Constant Temperature and Humidity Chamber is a test chamber without cooling function, input Power 1650W, Temperature range RT + 10~ 85 ℃, Humidity Control Range 80~ 95% RH. Using large screen touch screen screen, simple operation, support Chinese and English interface switching.
Features
1. Humanized design: fluorine-free design, multi-stage programmable PID controller, TMHM equilibrated Conditioning method, imported 304 mirror stainless steel liner, four corners and half arc transition, free loading and unloading shelf bracket
2. Quality assurance: power failure automatic storage parameters, brand Compressor and circulating fan, environmentally friendly refrigerant R134a, unique air duct circulation system, φ 25mm test hole
3. Safety functions: independent temperature limit alarm system, high/low/over-temperature alarm, Compressor overheating/overcurrent/overload protection, fan overheating protection, water shortage protection
4. Convenient data processing (optional): can be connected to the printer or 485 Communication interface, computer display and print Temperature Humidity and Time Linear dispersion

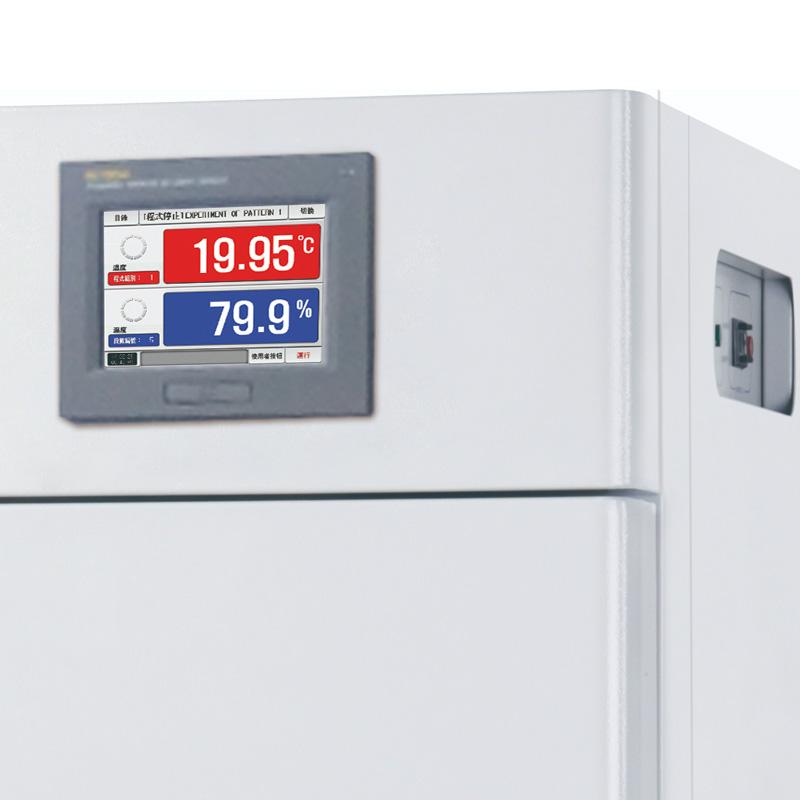

5. Programmable Touchscreen controller: large Touchscreen, Chinese and English interface, real-time operation Linear dispersion display, 100 sets of programs 1000 segments 999 cycle step capacity, screen lock function, P.I.D automatic calculation, RS-232/RS-485 communication interface (optional)
Principle
TMHM equilibrated Conditioning method and multi-stage programmable PID controller are adopted to ensure the uniform temperature and Humidity in the working room through the unique air duct circulation system, and achieve accurate and stable temperature and Humidity control.
Applications
Constant temperature and humidity test, environment test
Steps
1. Turn on the power supply AC220V 50HZ
2. Select Chinese and English Operating interface through Touchscreen
3. Set Temperature and Humidity Parameters and Procedures
4. Start running, the screen shows real-time Linear dispersion
5. Optional connection to printer or computer for data monitoring
Notice
● Working Ambient Temperature should be kept at 5~ 30 ℃
● Pay attention to over-temperature alarm and temperature limit protection function
● Avoid human touch of the locked screen
Regularly check the water shortage protection system
● Optional function requires additional accessories
