Overview

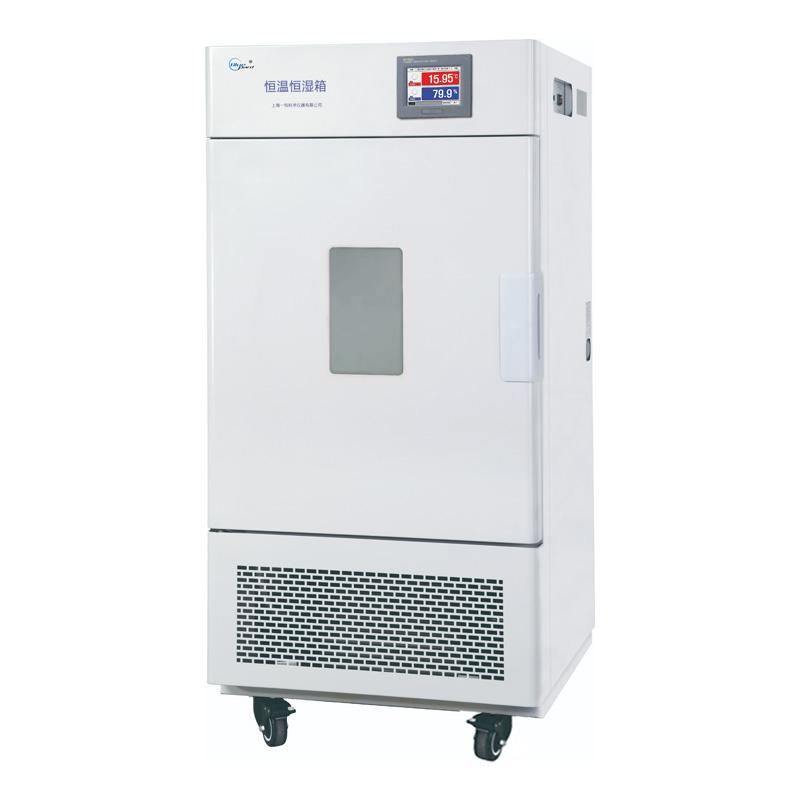

YIHENG BPS-100CB Constant Temperature and Humidity Chamber is a constant temperature and humidity test equipment with programmable Touchscreen control, Humidity Control Range is 35~ 95% RH, equipped with refrigeration system, suitable for industrial and mining enterprises, Universities & colleges, biological products, Food processing, agricultural research, environment protection, animal husbandry research and various laboratories for plant fostering, breeding tests, bacterial microbial fostering and preservation and testing of various specimens.
Features
1. Humanized design: fluorine-free design, multi-stage programmable PID controller adopts TMHM equilibrate Conditioning method, imported 304 mirror stainless steel liner four corners and half arc transition, free loading and unloading of shelf bracket for easy cleaning.
2. Quality assurance: power failure automatically stores parameters and resumes operation, brand Compressor and circulating fan use environmentally friendly refrigerant R134a, unique air duct circulation system to ensure uniform temperature and Humidity, diameter φ 25mm test hole.
3. Safety functions: independent temperature limit alarm system, high and low temperature and over-temperature alarm, Compressor overheating and overcurrent overload protection, fan overheating protection, water shortage protection.

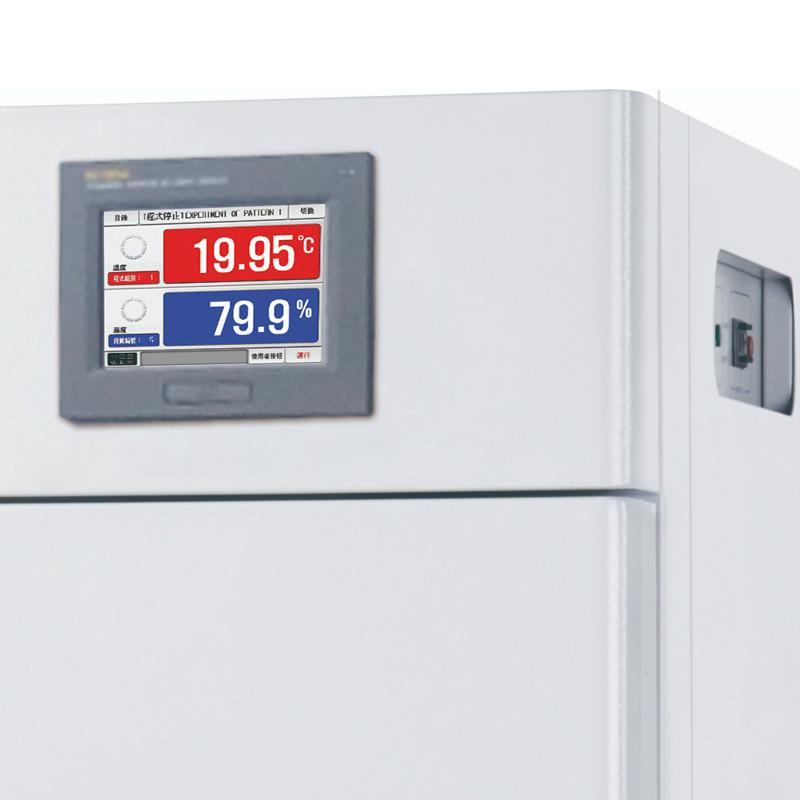

4. Programmable Touchscreen Controller: Large screen touch screen, Chinese and English Operating interface optional, 100 sets of programs 1000 segments 999 cycle step capacity, screen lock function, P.I.D automatic calculation function, RS-232 or RS-485 communication interface optional.
Principle
Humidity is precisely controlled by multi-stage programmable PID controller using TMHM equilibrated Conditioning method and P.I.D. automatic calculation function, and the unique air duct circulation system ensures uniform Humidity at room temperature to achieve constant temperature and humidity environment.
Applications
Electronics, electricians, electrical appliances, plastics, optical fibers, LCD, crystals, Inductance, PCB, batteries, computers, mobile phones, televisions, aerospace, scientific research, colleges, automobiles, automotive parts, Wires and cables and other parts Storage, transportation and use adaptability test under high and low temperature alternating heat and humidity environment
Steps
1. Connect the power supply AC380V 50HZ to ensure that the working Ambient Temperature is + 5~ 30 ℃.
2. Set the Temperature and Humidity parameters through the Touchscreen controller, and the Chinese and English interfaces can be selected.
3. Use the multi-stage programmable function to edit the test program, with a maximum of 1000 999 loops per group of programs.
4. Start the device and monitor the real-time operation Linear dispersion diagram displayed on the screen.
5. After the test is completed, you can connect the printer or computer for data processing (optional).
Notice
● Operating Environment temperature is not higher than 27 ℃ indoor temperature.
Avoid touching the controller screen artificially to prevent unplanned downtime.
● Pay attention to over-temperature alarm and various protection functions to ensure safe operation.
● Regularly clean liner and check shelf support.
● Optional function requires additional configuration of Communication interface or printer.
