Overview

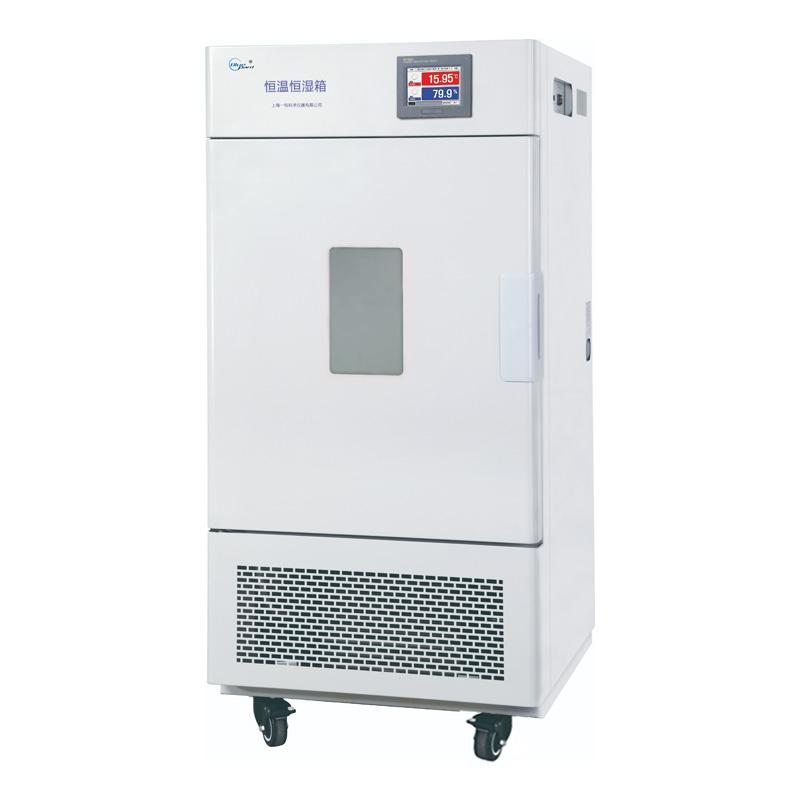

YIHENG BPS-250CL Constant Temperature and Humidity Chamber adopts fluorine-free design, which is environmentally friendly and healthy. Equipped with programmable Touchscreen controller, simple operation, easy editing, and PID automatic calculation function. Humidity Control Range is 35~ 95% RH, and the input Power is 2300W.
Features
1. Humanized design: fluorine-free design is environmentally friendly and healthy; multi-stage programmable PID controller adopts TMHM equilibrate Conditioning method, accurate fluctuation of temperature and humidity control; imported 304 mirror stainless steel liner, four corners and a half arc transition, free loading and unloading of shelf bracket for easy cleaning.
2. Quality assurance: automatic storage parameters after power failure, run the original program after power on; brand Compressor and circulating fan, environmentally friendly refrigerant (R134a) high efficiency and low energy consumption; unique air duct circulation system to ensure uniform temperature and Humidity, with φ 25mm test hole.
3. Safety function: independent temperature limit alarm system overtemperature automatic interruption and sound and light alarm; high temperature, low temperature and over-temperature alarm, Compressor overheating, overcurrent, overload protection, fan overheating protection, water shortage protection.

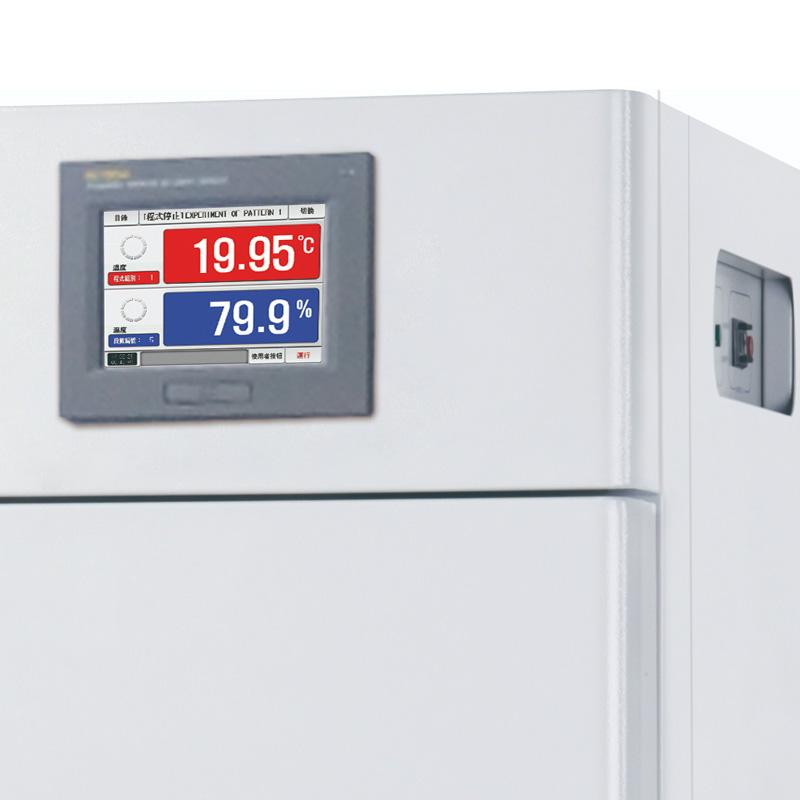

4. Programmable Touchscreen controller: Large screen touch screen operation is simple; Chinese and English Operating interface is optional, real-time operation Linear dispersion diagram display; 100 sets of programs 1000 segments 999 cycle step capacity, each time setting maximum 99 hours 59 minutes; Screen lock function to avoid accidental touch; PID automatic calculation function to correct temperature Humidity changes; optional RS-232 or RS-485 communication interface.
Principle
Adopt TMHM equilibrate Conditioning method and PID automatic calculation function, achieve precise temperature and Humidity control through brand Compressor and circulating fan, and ensure uniform working room temperature and Humidity with unique air duct circulation system.
Applications
Electronics, electricians, electrical appliances, plastics, optical fibers, LCD, crystals, Inductance, PCB, batteries, computers, mobile phones, televisions, aerospace, scientific research, colleges, automobiles, automotive parts, Wires and cables and other parts Storage, transportation and use adaptability test under high and low temperature alternating heat and humidity environment
Steps
1. Set Temperature and Humidity Parameters and Programs via Programmable Touchscreen Controller.
2. Optional connection printer or Communication interface for data processing and monitoring.
3. Start the equipment operation test, and the controller automatically corrects the change of Temperature and Humidity.
Notice
● Ambient Temperature should be between 5 and 30 ℃.
● Power supply voltage is AC220V 50HZ.
To avoid downtime caused by artificially touching the controller screen, use the screen lock function.
When the temperature exceeds, the system automatically interrupts the operation and alarms to ensure the safety of the experiment.
● Optional accessories include embedded printer, RS485 interface and communication software, wireless alarm system.
