Overview

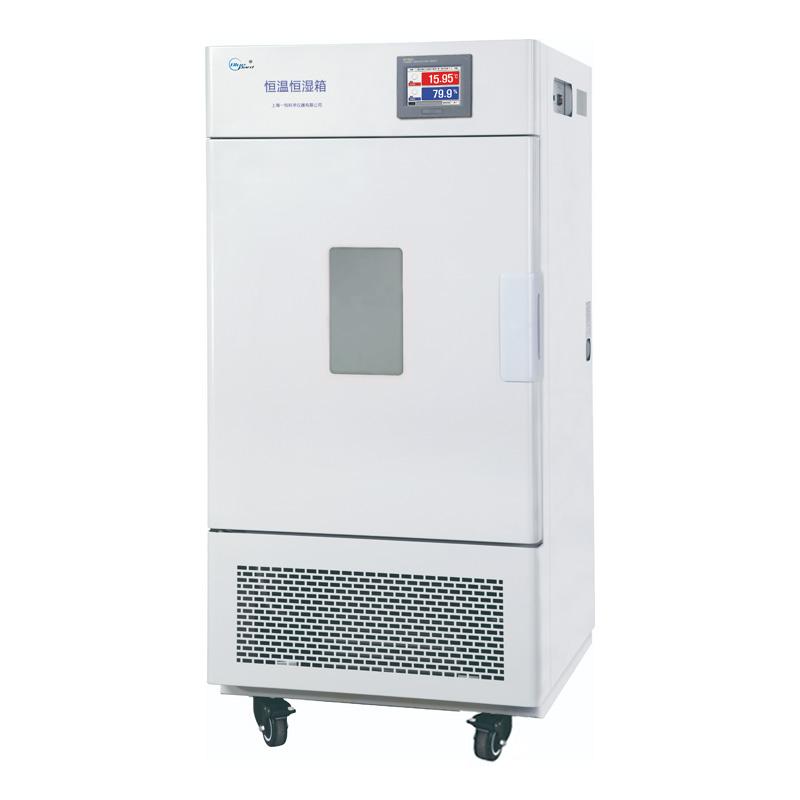

YIHENG BPS-500CB Constant Temperature and Humidity Chamber is a programmable Touchscreen control device, including a refrigeration system. The Humidity Control Range is 35~ 95% RH. It adopts a fully fluorine-free design, which is environmentally friendly and healthy. The equipment adopts imported 304 mirror stainless steel liner, with excessive four and a half corners and a half arcs. The shelf bracket can be freely loaded and unloaded, which is easy to clean in the box. Quality assurance, safety and reliability.
Features
1. Independent temperature limit alarm system, automatic interruption of operation over temperature and sound and light alarm
2. Multiple Safety protection: high temperature, low temperature and over-temperature alarm, Compressor overheating, overcurrent, overload protection, fan overheating protection, water shortage protection

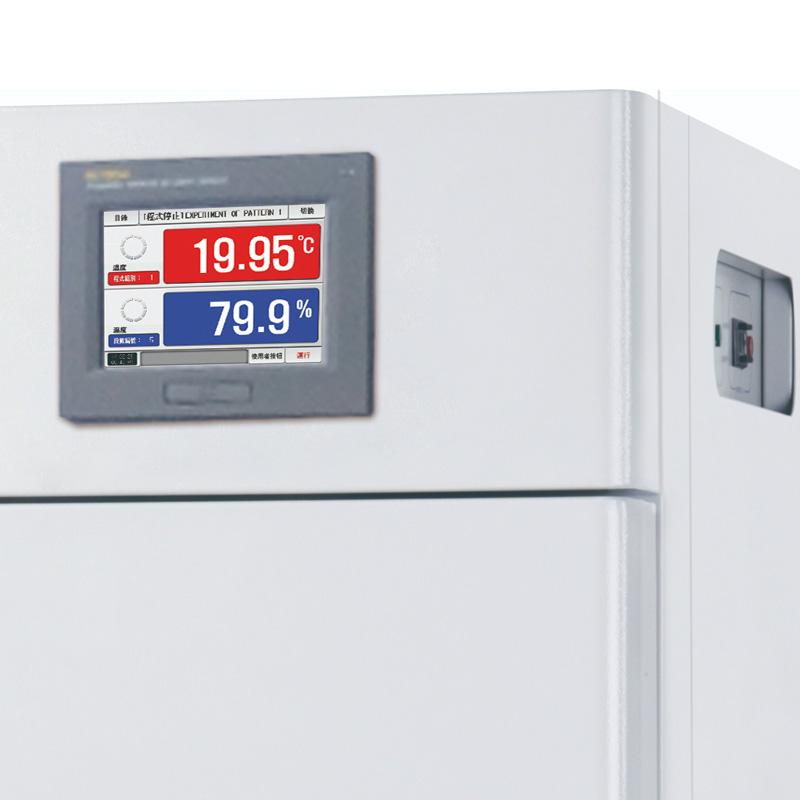

3. Programmable Touchscreen Controller: Large screen touch operation, Chinese and English interface optional, real-time display operation Linear dispersion
4. Large-capacity program storage: 100 sets of programs, 1000 segments, 999 cycle steps, each segment is set to a maximum of 99 hours and 59 minutes
5. Screen lock function to prevent accidental touch shutdown
6.P.I.D automatic calculation function, precise and stable control of temperature and Humidity
7. RS-232 or RS-485 communication interface optional (optional)
8. Fluorine-free environmentally friendly design
9. Multi-stage programmable PID controller, using TMHM equilibrating Conditioning method
10. Imported 304 mirror stainless steel liner, four corners and half arc transition, free loading and unloading of shelf brackets
11. The power-off parameters are automatically saved, and the original program is restored after power-on.
12. Brand Compressor and circulating fan, environmentally friendly refrigerant (R134a)
13. Unique Air Channel Circulation System to Ensure Uniform Temperature and Humidity
14.φ 25mm test hole, easy to operate and test
15. Optional data processing function: Connect the printer or 485 interface to display the print temperature Humidity time Linear dispersion
Principle
TMHM equilibrated Conditioning method and P.I.D automatic calculation function are used to precisely control the temperature and Humidity change through programmable Touchscreen controller, and the unique air duct circulation system is used to ensure the uniform distribution of temperature and Humidity in the working room, so as to realize the constant temperature and humidity environment.
Applications
Constant temperature and humidity test, environment test, Reliability test, material performance test
Steps
1. Set Temperature and Humidity Parameters and Programs via Touchscreen Controller
2. Select Chinese and English Operating interface
3. Edit program steps and loop settings
4. Start the device running
5. Linear dispersion and status monitoring in real time
6. Use test holes for data collection
7. Optional connection to computer or printer for data logging
Notice
● Working Ambient Temperature should be kept at 5~ 30 ℃
● Power supply voltage requirement AC380V 50HZ
● Pay attention to the over-temperature alarm prompt of the equipment and deal with it in time
Avoid unplanned downtime caused by human touch of the screen
Regularly clean the inside of the box to maintain hygiene
● Check whether the water shortage protection function is normal before use
● Optional function requires additional configuration of corresponding Accessories
