Overview

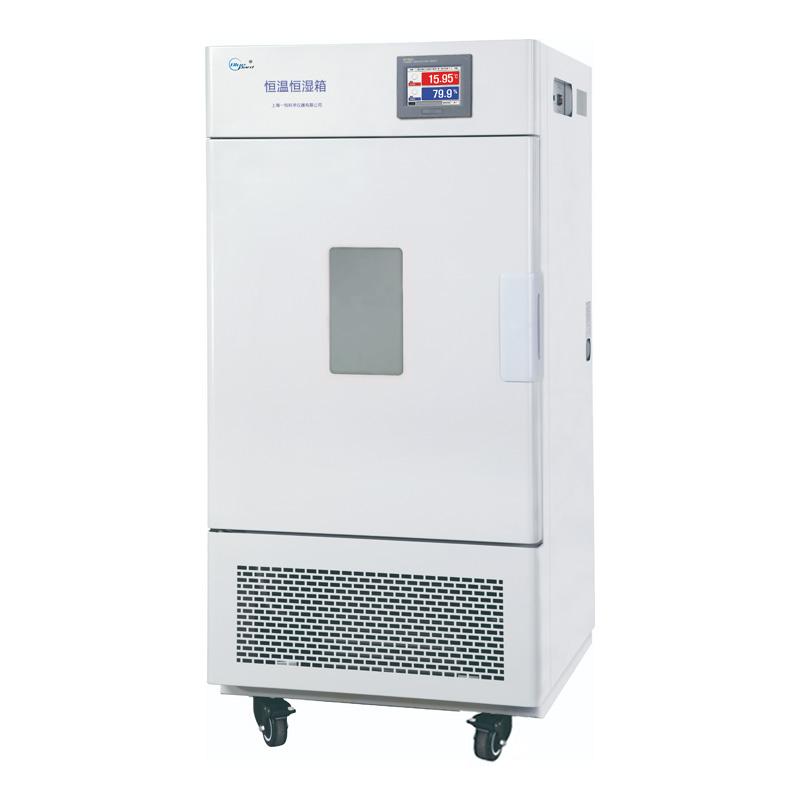

YIHENG BPS-800CA Constant Temperature and Humidity Chamber is a programmable Touchscreen control test equipment with a Humidity Control Range of 35~ 95% RH and an input Power of 8050W. It has the characteristics of humanized design, quality assurance, safety functions, convenient data processing and programmable Touchscreen controller. It is suitable for electronics, electrical, electrical, plastic and other raw materials and devices for cold resistance, heat resistance, moisture resistance, dry resistance test and quality control engineering Reliability test.
Features
1. Humanized design: fluorine-free design, multi-stage programmable PID controller, TMHM equilibrated Conditioning method, imported 304 mirror stainless steel liner, four corners and half arc transition, free loading and unloading shelf bracket.
2. Quality assurance: Parameters are automatically stored and restored in the event of a power outage, brand Compressors and circulating fans, environmentally friendly refrigerant R134a, unique air duct circulation system, and test holes with a diameter of φ 25mm.
3. Safety functions: independent temperature limit alarm system, high temperature, low temperature and over-temperature alarm, Compressor overheating, overcurrent, overload protection, fan overheating protection, water shortage protection.
4. Convenient data processing (optional): Can be connected to the printer or 485 Communication interface, the computer displays and prints Humidity and Time Linear dispersion.

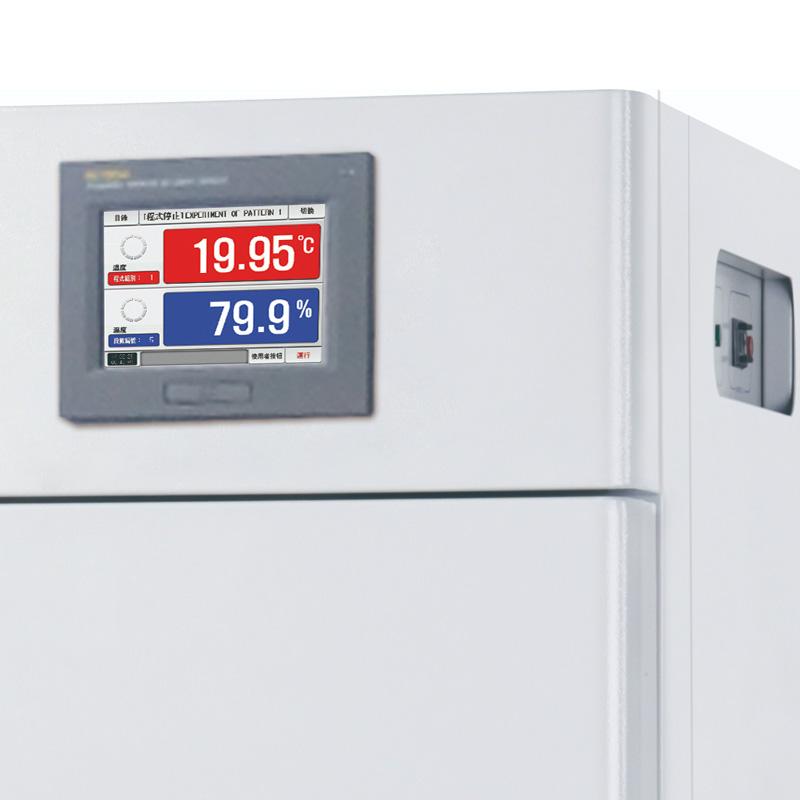

5. Programmable Touchscreen Controller: Large screen touch screen, Chinese and English Operating interface, Instant operation Linear dispersion display, 100 sets of programs 1000 segments 999 cycle step capacity, maximum time setting 99 hours 59 minutes, screen lock function, P.I.D automatic calculation function, RS-232 or RS-485 communication interface (optional).
Principle
The BPS-800CA Constant Temperature and Humidity Chamber adopts the TMHM equilibrated Conditioning method and the P.I.D automatic calculation function to precisely control the temperature and Humidity through the multi-stage programmable PID controller to ensure small fluctuations. The unique air duct circulation system ensures uniform temperature and Humidity in the working room, and the environmentally friendly refrigerant and brand Compressor operate efficiently to achieve an energy-saving and stable test environment.
Applications
Electronics, Electrical, Appliances, Plastics, Fiber Optics, LCD, Crystals, Inductance, PCB, Battery, Computer, Mobile Phone, TV, Aerospace, Research, College, Automotive, Auto Parts, Wires and cables
Steps
1. Connect the power supply and ensure that the voltage is AC380V 50Hz.
2. Open the device and use the Touchscreen controller to select the Chinese and English interface.
3. Set Temperature Humidity Parameters, Temperature range 10~ 85 ℃, Humidity Control Range 35~ 95% R.H.
4. Editing the program, you can set up multiple cycle steps, each time is up to 99 hours and 59 minutes.
5. Start the test and monitor the Linear dispersion.
6. After the test is complete, turn off the equipment and clean the liner.
Notice
● Ambient Temperature should be kept at 5~ 30 ℃.
Avoid touching the controller screen artificially to prevent unplanned downtime.
Regularly check the water shortage protection function to ensure safe operation.
● When using the option, connect the printer or Communication interface correctly.
● Pay attention to over-temperature alarms and deal with abnormal situations in a timely manner.
