Overview

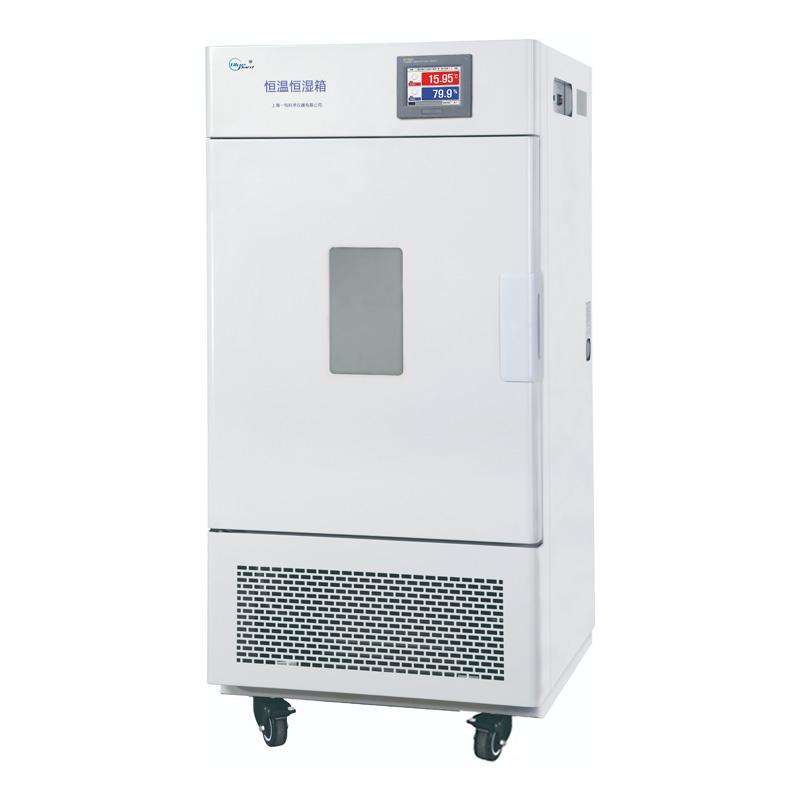

YIHENG BPS-1000CL programmable humidity chamber adopts multi-stage programmable PID controller, fully fluorine-free design, equipped with large touch screen screen, simple operation and easy editing. The controller Operating interface is optional in Chinese and English, including refrigeration system instruments. It is recommended to use the temperature not higher than 27 ° C room temperature environment.
Features
1. Humanized design: fluorine-free design; multi-stage programmable PID controller, using TMHM equilibrate Conditioning method, temperature and humidity control accurate fluctuation is small; imported 304 mirror stainless steel liner, four corners and a half arc transition, shelf bracket can be freely loaded and unloaded, easy to clean.
2. Quality assurance: Parameters are automatically stored in the event of a sudden power outage, and the original setting program is run after power on; brand Compressor and circulating fan, environmentally friendly refrigerant (R134a) has high efficiency and low energy consumption; unique air duct circulation system ensures uniform temperature and Humidity, with φ 25mm test hole.
3. Safety functions: independent temperature limit alarm system, automatic interruption of operation and sound and light alarm; high temperature, low temperature and over-temperature alarm, Compressor overheating, overcurrent, overload protection, fan overheating protection, water shortage protection, etc.
4. Convenient data processing (optional): Can be connected to a printer or 485 Communication interface, use a computer to display and print Humidity and Time Linear dispersion.

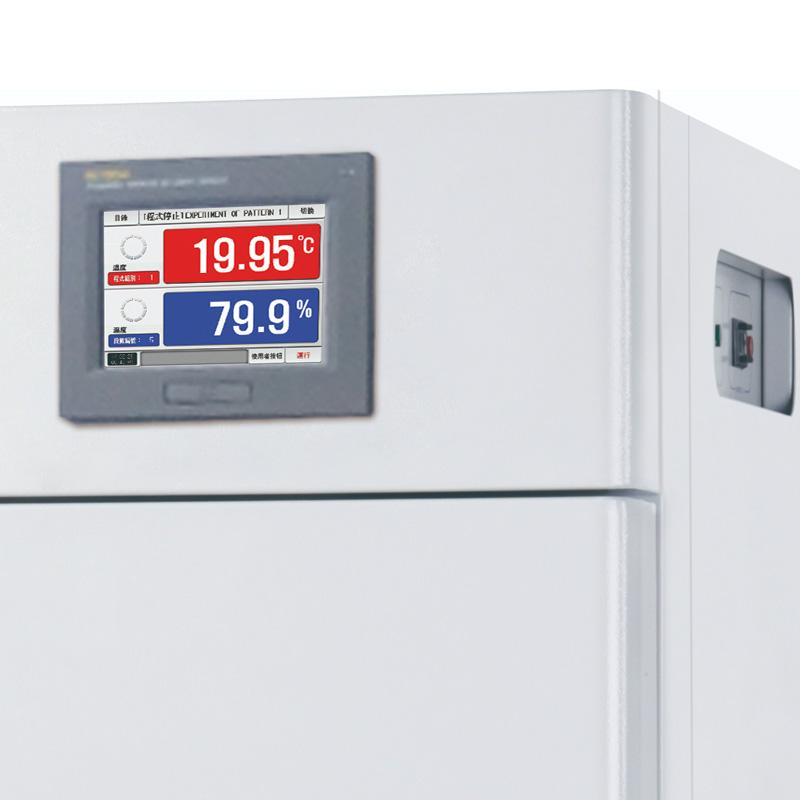

5. Programmable Touchscreen controller: large screen touch screen, simple operation, easy program editing; Chinese and English optional Operating interface, real-time operation Linear dispersion chart screen display; 100 sets of programs 1000 segments 999 cycle step capacity, set the maximum time 99 hours 59 minutes; screen lock function after data input; P.I.D automatic calculation function, precise and stable control of temperature Humidity; RS-232 or RS-485 communication interface (optional), computer design program and monitor the test process.
Principle
Using multi-stage programmable PID controller and TMHM equilibrate conditioning method, the unique air duct circulation system ensures uniform working room temperature Humidity, and realizes precise temperature control and humidity control.
Applications
Electronics, electricians, electrical appliances, plastics, optical fibers, LCD, crystals, Inductance, PCB, batteries, computers, mobile phones, televisions, aerospace, scientific research, colleges, automobiles, automotive parts, Wires and cables and other parts Storage, transportation and use adaptability test under high and low temperature alternating heat and humidity environment
Steps
1. Setting parameters: Edit the program through the Touchscreen controller, and you can choose the Chinese and English interface.
2. Start operation: Automatically run the original setting program after power on, and the controller has a screen lock function to avoid accidental touch.
3. Monitoring process: Linear dispersion diagram of real-time operation is displayed on the screen, and data monitoring and recording can be optionally connected to a computer or printer.
4. End the operation: The system automatically interrupts the operation and alarms when the limit is exceeded to ensure safety.
Notice
• It is recommended to use the temperature not higher than 27 ° C room temperature environment to ensure the heat dissipation effect.
• Avoid touching the controller screen artificially to prevent unplanned downtime.
• Pay attention to over-temperature alarm and protection functions, and deal with abnormal situations in a timely manner.
• When the data processing function is selected, the corresponding equipment such as printer or Communication interface needs to be connected.
