Overview

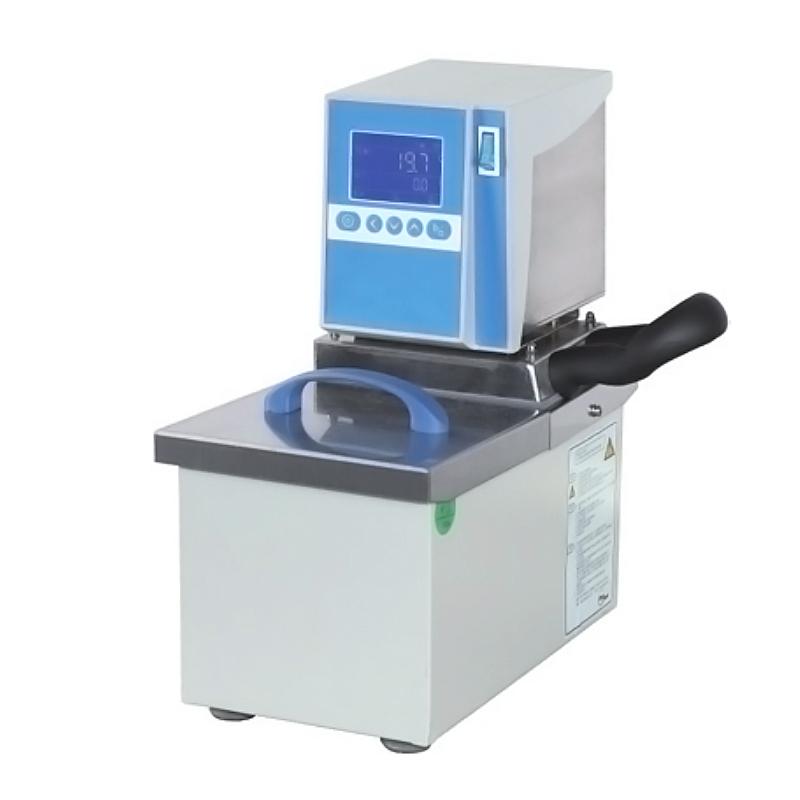

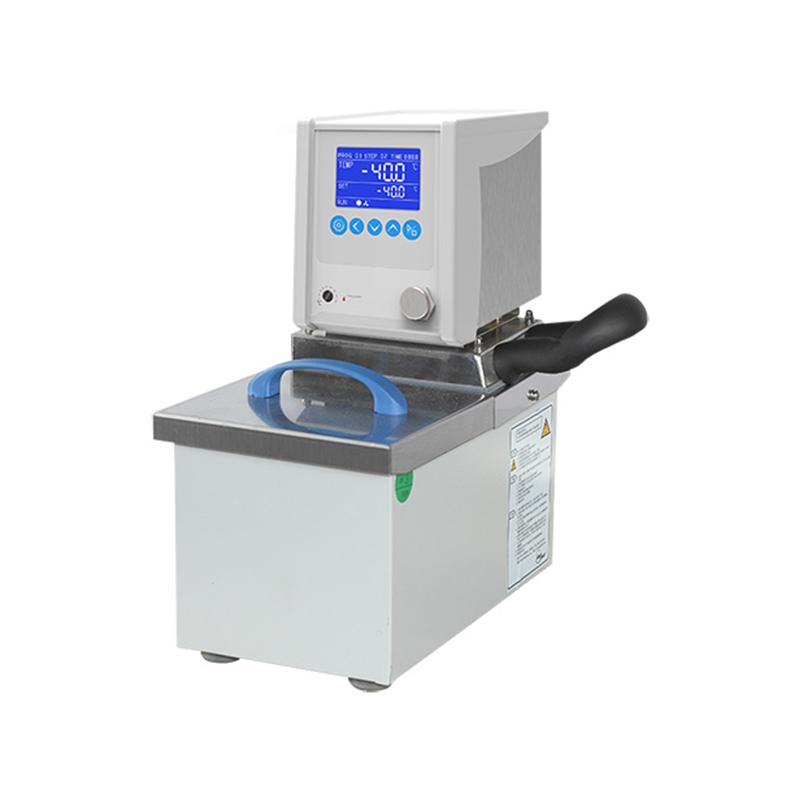

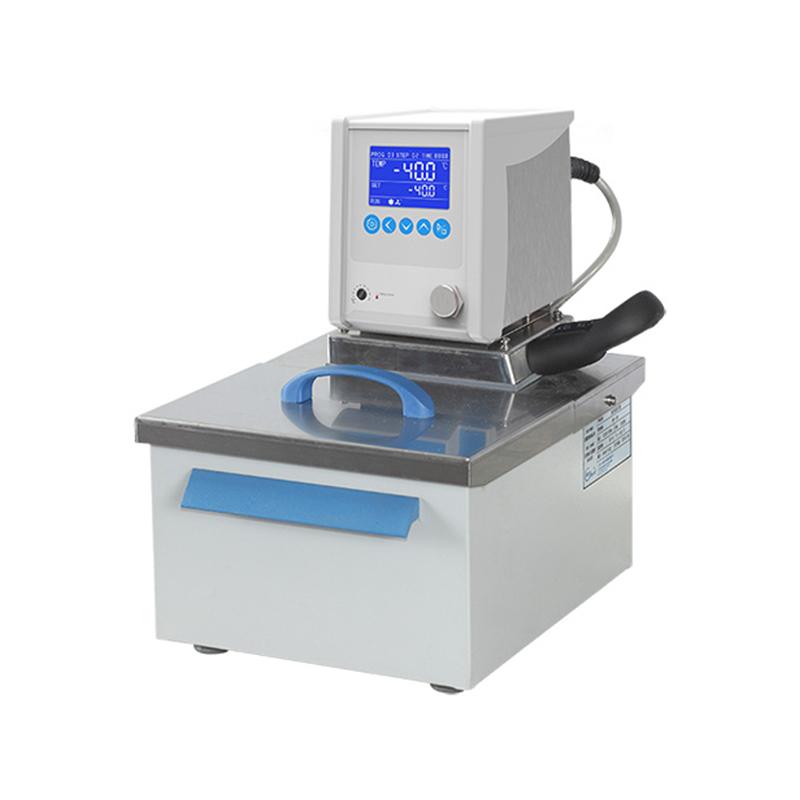

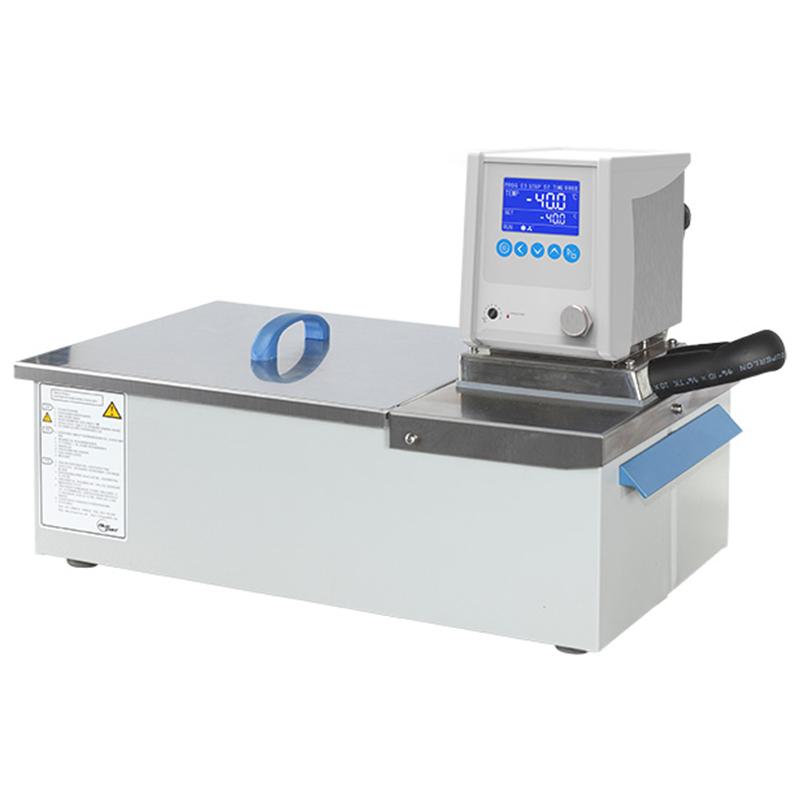

Temperature range of YIHENG MP-5H heating circulating tank is RT + 5~ 100 ℃, liquid filling volume 6.7L. The main parts are imported products, with high quality, reliability, stability and other characteristics, widely used in petroleum, chemical industry, life science, Measurement, light industry and scientific research and other fields.
Features
1. Microcomputer PID temperature controller, accurate and reliable temperature control, with timing, heating device and circulating pump and other key components are imported products.
2. Over-temperature, low-temperature sound and light tracking alarm and liquid level protection functions ensure that samples are reliably protected without accidents.
3. Equipped with a strong pressure suction pump to provide a thermostatic source for the peripheral groove.
4, MP-5H heating circulation tank with external bath connected to the connection port.
5. Multi-stage programmable liquid crystal controller (optional), microcomputer program control temperature, time and heating rate, and conduct thermostatic test at extremely fast speed; 7 sections and 63 steps can be programmed, each section is 9 steps, and each section is set. Time 1 to 99 hours and 59 minutes; preset boot and shutdown time, circulating pump Rotation speed adjustable; Multi-stage programmable control, menu-type Operating interface, simplifies complex experimental process, realizes automatic control and operation.
Principle
The temperature is precisely controlled by the microcomputer PID controller, the internal/external circulation is realized by the heating device and the circulation pump, and a stable thermostatic environment is provided.
Applications
Petroleum, Chemical, Life Science, Measurement, Light Industry, Scientific Research
Steps
1. Connect the power supply to AC220V 50HZ.
2. Set the parameters of the microcomputer PID temperature controller, including Temperature range 5~ 100 ℃, timing 1~ 9999min, etc.
3. Select the internal/external circulation mode as needed, and adjust the Rotation speed of the circulating pump.
4. If using multi-segment programmable functions, preset program segments and steps.
5. Start the equipment, monitor Temperature Fluctuation +/- 0.1 ℃ and operating status.
6. After use, shut down according to the program.
Notice
● Power supply voltage is AC220V 50HZ to avoid voltage mismatch.
Pay attention to the over-temperature and low-temperature alarm functions during operation, and deal with abnormalities in a timely manner.
Keep the liquid level within a safe range to prevent the level protection from triggering.
Regularly check key components such as circulating pumps and heaters to ensure normal operation.
When setting up a multi-segment program, carefully confirm each period of time and parameters to avoid incorrect operation.
