Overview

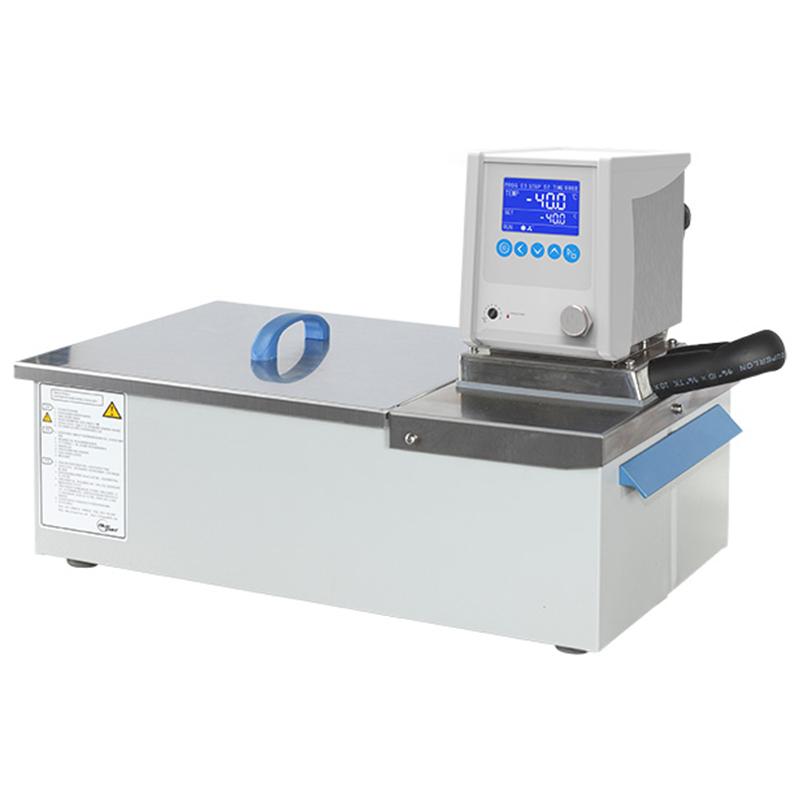

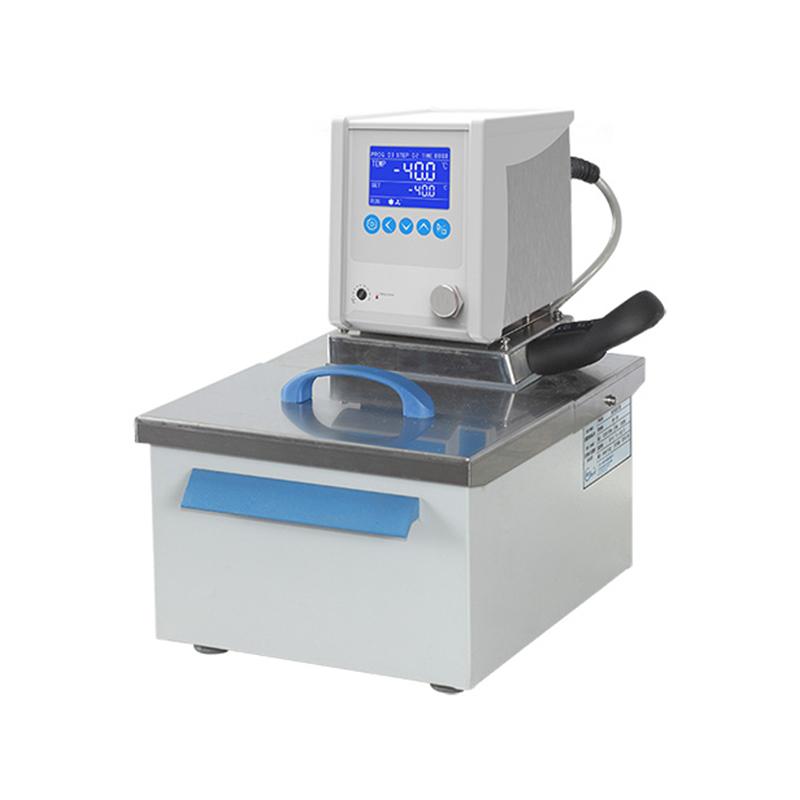

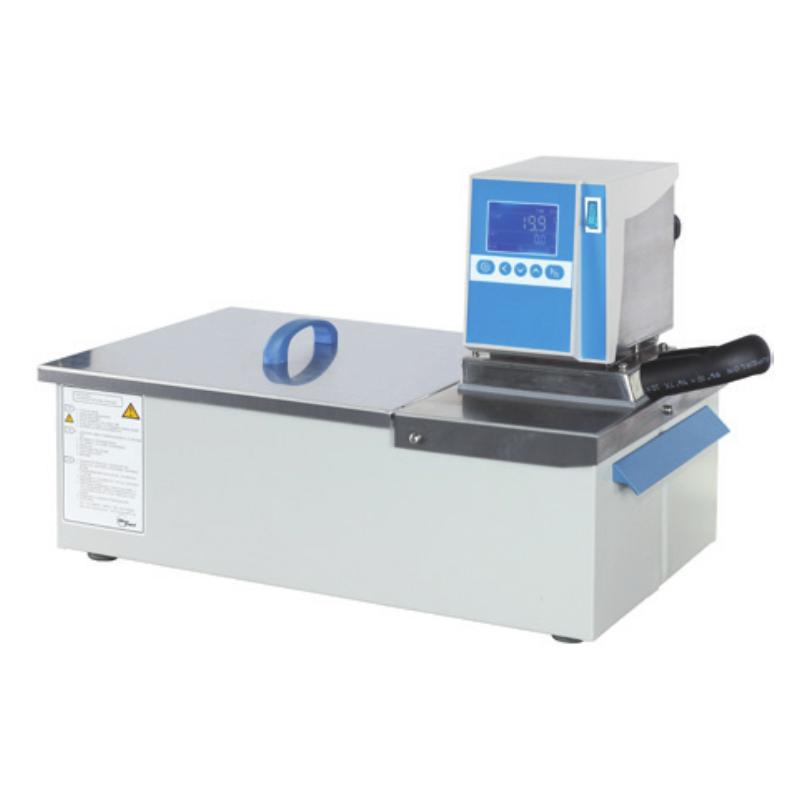

YIHENG MP-19H heating circulation tank is a metal shell rectangular water tank. Temperature range is RT + 5~ 100 ℃, and the filling volume is 22.5L. The device uses a microcomputer intelligent Control system to precisely control the temperature change and realize the thermostatic function.
Features
1. Microcomputer PID temperature controller, accurate and reliable temperature control, with timing function, key components are imported products
2. With over-temperature, low-temperature sound and light tracking alarm and liquid level protection functions to ensure sample safety
3. Equipped with a powerful pressure suction pump to provide a thermostatic source for the peripheral groove
4. Equipped with external bath connection interface
5. Optional multi-segment programmable LCD controller, supports 7-segment 63-step Program settings, each setting time is 1 to 99 hours and 59 minutes
6. Preset switch time, Rotation speed of circulating pump adjustable
7. Operating interface simplifies the complex experimental process and realizes automatic control operation
Principle
The MP-19H heating circulating tank controls the temperature change through the microcomputer intelligent Control system, and adopts the microcomputer PID control technology to precisely adjust the heating device and circulating pump to achieve a thermostatic environment. The equipment keeps the temperature in the tank uniform and stable through internal/external circulation.
Applications
Petroleum, Chemical, Life Science, Measurement, Light Industry, Scientific Research
Steps
1. Connect power supply AC220V 50HZ
2. Inject the right amount of liquid into the Tank
3. Set the required temperature parameters
4. Start the heating cycle
5. Optional multi-stage programmable controller for complex Program settings
6. Monitor the operating status of the equipment to ensure normal operation
Notice
• Power supply voltage meets AC220V 50HZ requirements before use
• Pay attention to the liquid level protection function to ensure that the liquid level is normal
• Pay attention to over-temperature and low temperature alarm prompts when the equipment is running
• Regularly check the status of key components
• Make sure the interface is installed correctly when connecting externally
• Please follow the menu guidelines to set when programming
