Overview

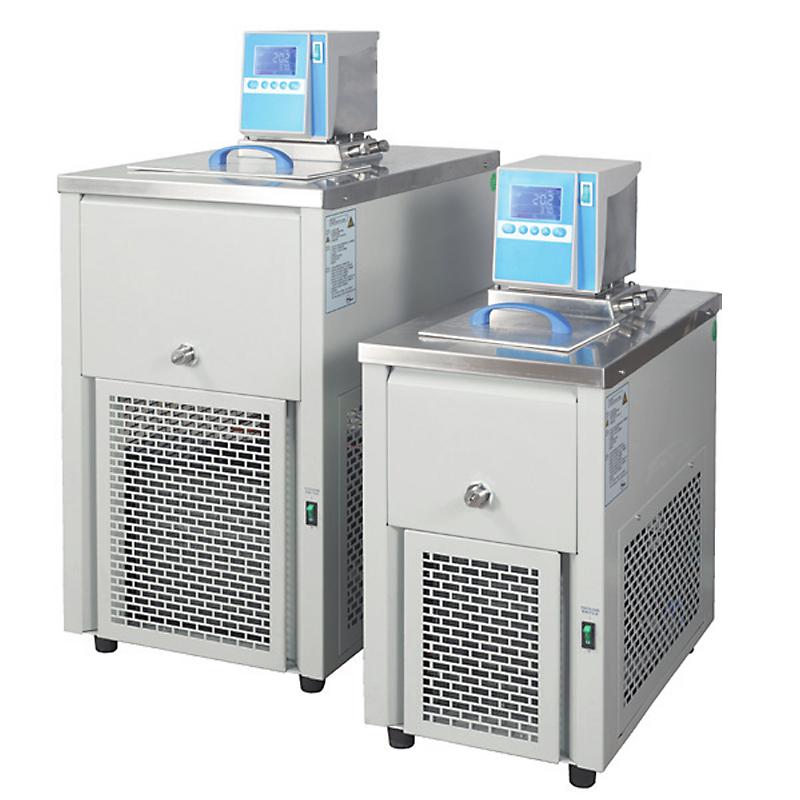

YIHENG MP-50C low temperature circulating water tank is a circulating tank with dual functions of refrigeration and heating, and the filling volume is 4.5L. The product adopts German technology and uses imported parts to ensure accuracy and reliability.
Features
1. Intelligent microcomputer temperature controller, high temperature control accuracy, environmentally friendly refrigerant, Compressor, circulating pump and heating device and other key components are imported products.
2. Over-temperature, low-temperature sound and light tracking alarm and liquid level protection functions ensure that samples are reliably protected without accidents.
3. Equipped with a strong pressure suction pump to provide a thermostatic source for the peripheral groove.
4. Equipped with a connecting port for external baths.
Convenient data processing (optional): can be connected to the printer, 485 Communication interface or USB data transfer interface (U disk), with a computer and printer to record temperature and time Linear dispersion, providing a strong guarantee for data storage and playback during the test.
6. Multi-stage programmable liquid crystal controller (optional): Microcomputer program controls temperature, time and heating rate, and conducts thermostatic test at an extremely fast speed; 15 segments and 30 steps can be programmed, each setting time is 1-99 hours and 59 minutes. Rotation speed of circulating pump is adjustable.
Principle
The product controls the temperature, time and heating rate through a microcomputer program, adopts internal/external circulation mode, and uses key components such as Compressors, circulation pumps and heaters to achieve cooling and heating functions, providing a thermostatic environment for the sample.
Applications
Petroleum, Chemical, Life Science, Measurement, Light Industry, Scientific Research
Steps
1. Connect the power supply to AC220V 50HZ.
2. Set the parameters of the microcomputer temperature controller.
3, start the circulation pump and refrigeration/heating system.
4. Monitor temperature fluctuations and alarm functions.
5, optional data processing equipment for data recording.
Notice
• Power supply voltage match AC220V 50HZ before use.
• Pay attention to over-temperature, low temperature sound and light alarm and liquid level protection functions to ensure sample safety.
• Rotation speed of circulating pump can be adjusted as needed.
• Optional parts such as multi-segment programmable LCD controller or German Julabo controller require additional booking, delivery period is 7 days.
• Avoid exceeding Temperature range -50~ 100 ℃ during operation.
