Overview

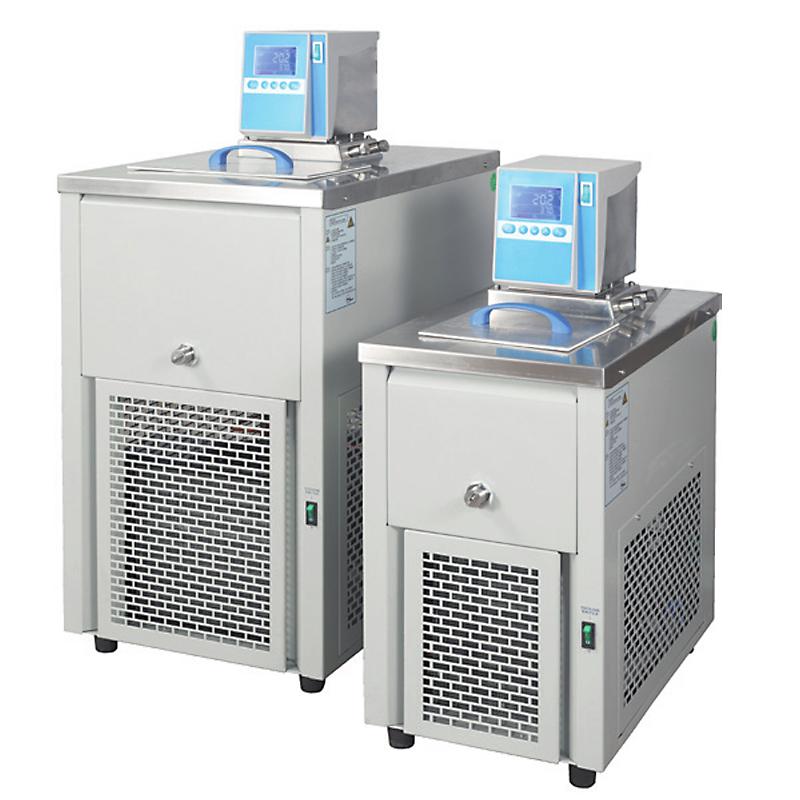

YIHENG MPG-50C cryogenic circulating water tank is a dual-function equipment with refrigeration and heating functions. It is equipped with over-temperature and low-temperature sound and light tracking alarm and liquid level protection functions. The filling volume is 13L. The product integrates the company's many years of design and production experience, introduces and digests German technology, and the main components are imported products. It has the characteristics of high quality, reliability and stability. It is widely used in petroleum, chemical industry, life science, Measurement, light industry and scientific research.
Features
1. Intelligent microcomputer temperature controller, high temperature control accuracy, environmentally friendly refrigerant, Compressor, circulating pump and heating device and other key components are imported products.
2. Over-temperature, low-temperature sound and light tracking alarm and liquid level protection functions ensure that samples are reliably protected without accidents.
3. Equipped with a strong pressure suction pump to provide a thermostatic source for the peripheral groove.
4. Equipped with a connecting port for external baths.
Convenient data processing (optional): can be connected to the printer, 485 Communication interface or USB data transfer interface (U disk), with a computer and printer to record temperature and time Linear dispersion, providing a strong guarantee for data storage and playback during the test.
6, multi-stage programmable liquid crystal controller (optional): can be preset 15 segments 30 steps programmable, each setting time 1-99 hours 59 minutes, circulating pump Rotation speed adjustable; microcomputer program control temperature, time and heating rate, at a very fast speed thermostatic test.
Principle
The equipment uses microcomputer PID Control mode, through the internal/external circulation system to achieve accurate temperature control. Equipped with environmentally friendly refrigerant and imported Compressor, circulation pump, heating device and other key components to ensure efficient cooling and heating functions, while ensuring sample safety through over-temperature, low temperature sound and light alarm and liquid level protection mechanism.
Applications
Petroleum, Chemical, Life Science, Measurement, Light Industry, Scientific Research
