Overview

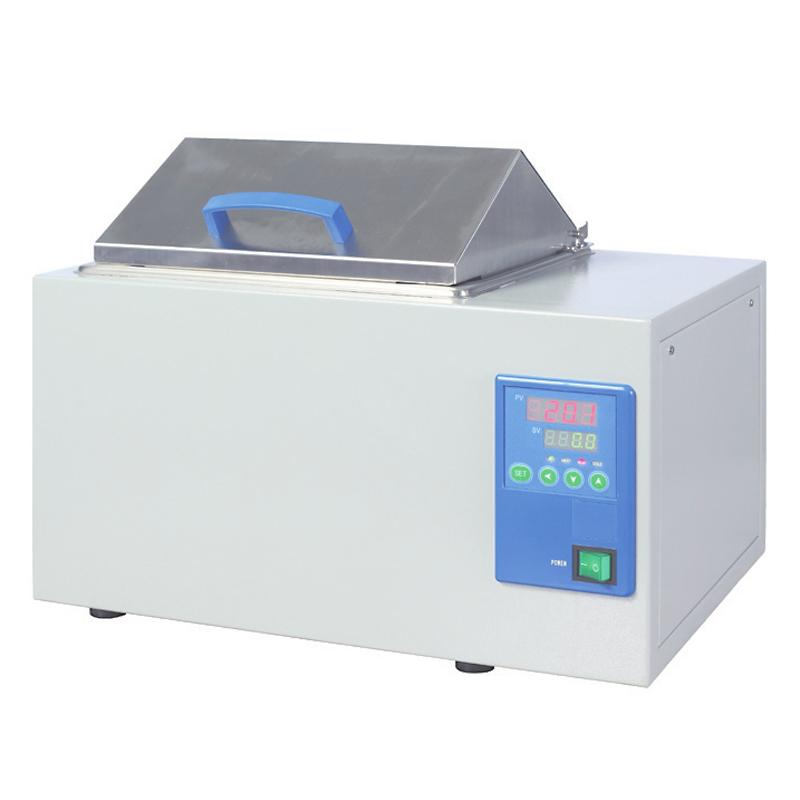

YIHENG BWS-27 Precision Thermostatic water bath is a high-end export product with a Temperature range of RT + 5~ 100 ° C. It breaks through the defect of the existing China sink without water shortage and anti-burning function. It adopts one-time stamping stainless steel liner with independent water shortage and anti-air burning function and independent temperature limit safety system to ensure safe operation without accidents. The input Power is 1000W and the effective volume is 20L.
Features
1, LCD screen, multiple sets of data one-screen display, menu Operating interface, with timing function, easy to observe and operate (optional multi-segment programmable LCD temperature controller).
2, one-time stamping forming stainless steel liner, anti-corrosion, easy to clean.
3. The stainless steel spire cover can prevent water evaporation and water dew from entering the specimen and causing pollution.
4. It has the function of water shortage and air burning. If there is a water shortage phenomenon, the heating device will be cut off immediately, and the sound and light alarm will prompt the operator to ensure the safe operation of the instrument.
Can be connected to micro printer, 485 Communication interface or USB Interface (optional).
Principle
BWS-27 Precision Thermostatic water bath uses microcomputer to control the temperature and uses internal/external circulation to achieve precision thermostatic. When water shortage is detected, the system automatically cuts off the heating device and issues an audible and visual alarm to prevent air burning and ensure safe operation.
Applications
Biology, chemistry, physics, plants, chemicals
Steps
1. Connect the power supply to AC220V 50HZ.
2. Set temperature, timing and other parameters through the LCD menu Operating interface.
3. Start the equipment, and the system automatically controls the temperature and circulates.
4. Turn off the power after use.
Notice
• Power supply voltage meets AC220V 50HZ requirements before use.
• Pay attention to check the water shortage situation to avoid the failure of the air-burning function.
• Use proper cleaning methods to avoid damage to the stainless steel liner.
• Optional functions require additional corresponding accessories.
