Overview

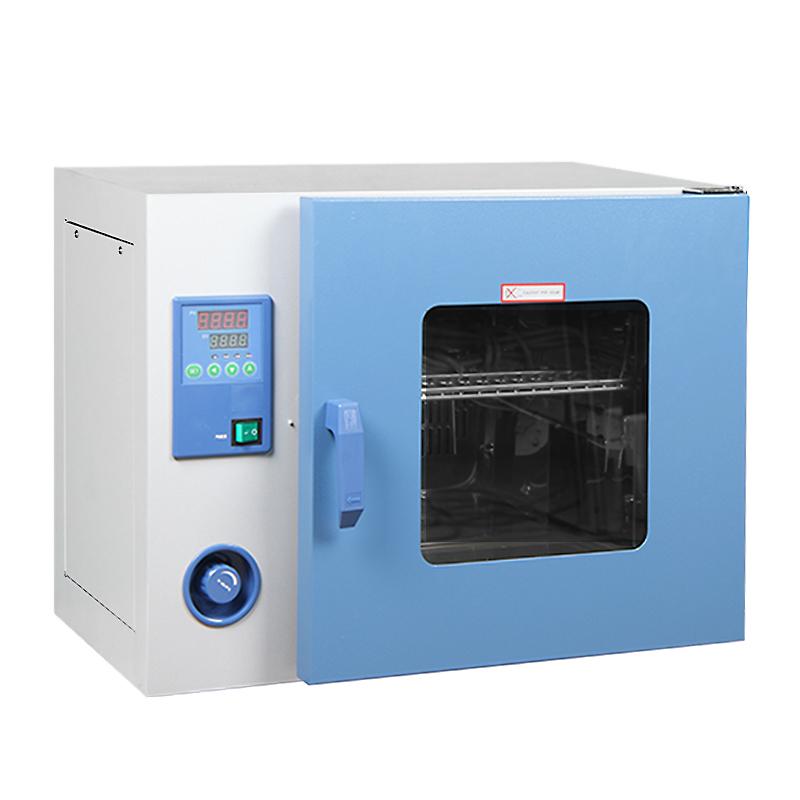

YIHENG DHG-9035A blast drying oven Temperature range is 10~ 300 ℃, Temperature resolution 0.1 ℃, Input Power 850W. Suitable for industrial and mining enterprises, laboratories, R & D institutions for drying, baking wax melting, sterilizing, using professional laser and numerical control processing equipment production.
Features
1. The inside of the box is made of mirror stainless steel argon arc welding, and the outside of the box is made of good steel plate, which is beautiful and novel in appearance
2. Microcomputer P.I.D temperature controller with over-temperature deviation protection and digital display, with timing function, accurate and reliable temperature control
3. The hot air circulation system consists of high temperature continuous operation fans and suitable air ducts to improve Temperature Uniformity
4, the use of new synthetic silicon sealing strip, long-term high temperature operation, long service life, easy to replace
5. The air inlet and exhaust volume in the box can be adjusted from the temperature control panel
6. Independent temperature limit alarm system, automatically interrupts when the temperature exceeds the limit to ensure experimental safety (optional)
7. Can be equipped with a printer or RS485 interface, connect to a printer or computer, and record temperature parameter changes (optional)
Principle
Precise temperature control through microcomputer P.I.D temperature controller, combined with hot air circulation system to form a uniform temperature field inside the studio, to achieve drying, baking and other functions.
Applications
Industrial and mining enterprises, laboratories, R & D institutions
Steps
1. Turn on the power supply AC 220V 50Hz
2. Set the required temperature and time through the temperature control panel
3. Start the device and start working
4. Monitor the operating status and adjust the intake and exhaust volume if necessary
5. Turn off the power after completing the work
Notice
• Ambient Temperature should be in the range of RT + 5~ 40 ℃
• When the temperature limit is exceeded, the independent temperature limit alarm system will automatically interrupt the operation
• Regularly check the sealing strip and fan operation status
• Optional functions require additional corresponding accessories
