Overview

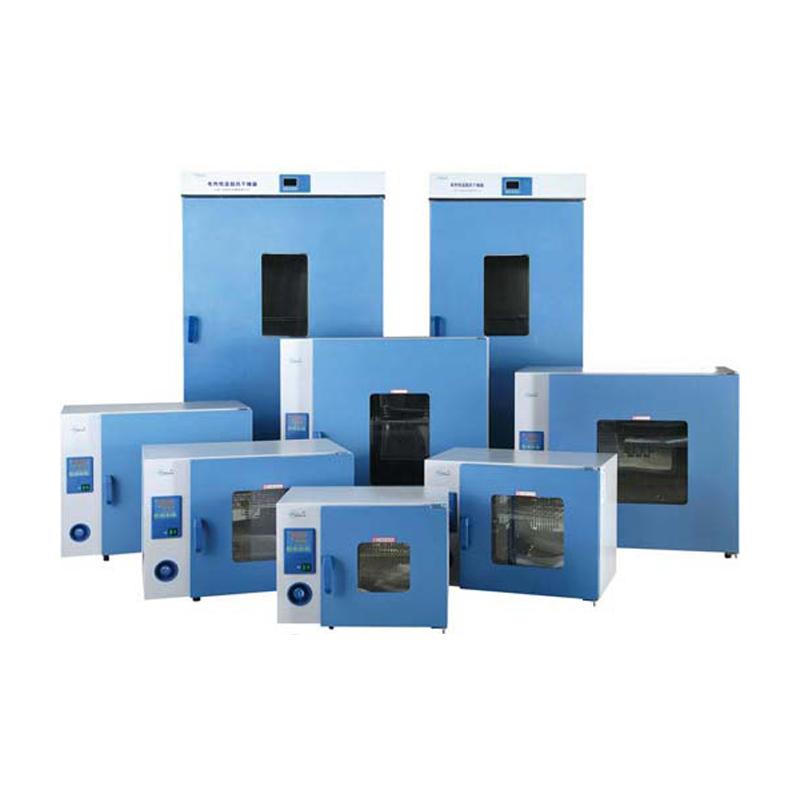

YIHENG DHG-9245A blast drying oven adopts stainless steel liner with a volume of 220L and a Temperature range of 10~ 300 ℃. The product is produced by professional laser and numerical control processing equipment, with a microcomputer PID controller, which can be used by industrial and mining enterprises, laboratories, R & D institutions for drying, baking wax melting, sterilizing use.
Features
1. Microcomputer P.I.D temperature controller with over-temperature deviation protection and digital display, with timing function, accurate and reliable temperature control
2. The inside of the box is made of mirror stainless steel argon arc welding, and the outside of the box is made of good steel plate, which is beautiful and novel
3. The air inlet and exhaust volume in the box can be adjusted from the temperature control panel
4. The hot air circulation system consists of fans that can operate continuously at high temperatures and suitable air ducts to improve the Temperature Uniformity in the working room
5, using a new type of synthetic silicon sealing strip, long-term high temperature operation, long service life, easy to replace
6. Independent temperature limit alarm system, which automatically interrupts when the temperature exceeds the limit to ensure the safe operation of the experiment without accidents (optional)
7. Can be equipped with a printer or RS485 interface for connecting to a printer or computer, capable of recording changes in temperature parameters (optional)
Principle
DHG-9245A blast drying oven precisely controls the temperature through the microcomputer PID controller, combined with the hot air circulation system, realizes the uniform distribution of the temperature in the working room by the high temperature fan and the air duct, and ensures a stable drying environment.
Applications
Industrial and mining enterprises, laboratories, R & D institutions
Steps
1. Power supply voltage AC 220V 50Hz
2. Set the required temperature (RT + 10~ 300 ℃) and Timer Range (1~ 5999min) through the microcomputer PID controller
3. Adjust the air intake and exhaust volume in the box as needed
4. Start the device and start working
5. Monitor temperature parameters, optional recording function
Notice
• Ambient Temperature Range of RT + 5~ 40 ℃
• Power supply voltage is AC 220V 50Hz to ensure matching
• Check that the independent temperature limit alarm system (if optional) functions normally before use
• Regularly check the sealing strip status to ensure long-term high temperature operation Reliability
• Avoid over-temperature use to prevent accidents
