Overview

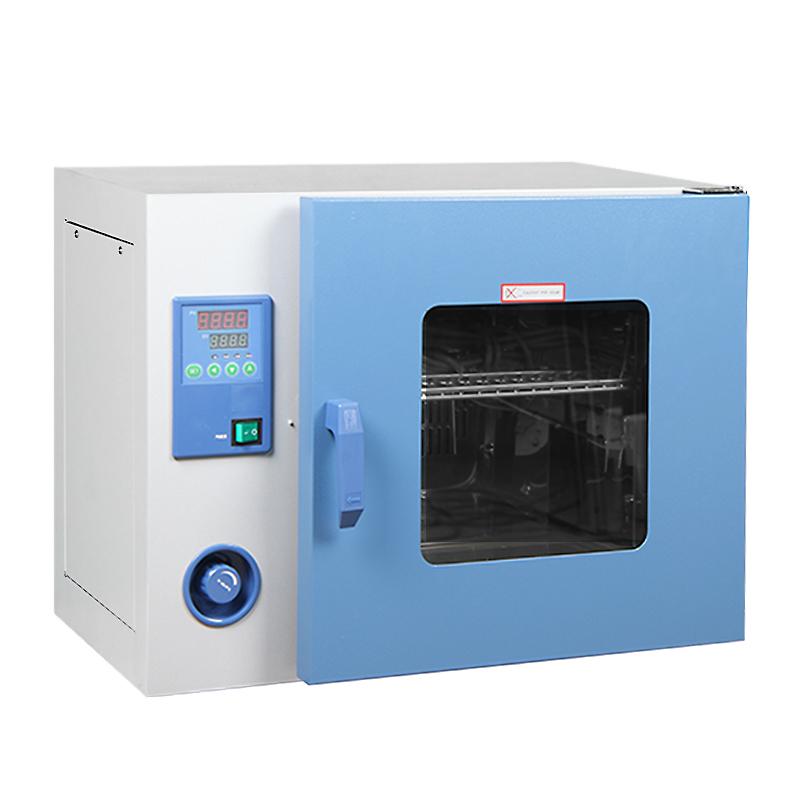

YIHENG DHG-9203A Blast drying oven adopts mirror stainless steel argon arc welding box, and the outside of the box adopts good steel plate with good mass. Blast drying oven adopts synthetic silicon sealing strip, which can operate at high temperature for a long time, has a long service life, and the control range is 10~ 200 ℃. Temperature range can be determined according to user needs for RT + 10~ 250 ℃ products, RT refers to Ambient Temperature.
Features
1. The inside of the box is made of mirror stainless steel argon arc welding, and the outside of the box is made of good steel plate, which is beautiful and novel in appearance.
2. Adopt microcomputer P.I.D temperature controller with over-temperature deviation protection and digital display, with timing function, accurate and reliable temperature control.
3. The hot air circulation system consists of fans that can operate continuously at high temperatures and suitable air ducts to improve the temperature uniformity in the working room.
4. DHG-9203A blast drying oven adopts a new type of synthetic silicon sealing strip, which can operate at high temperature for a long time, has a long service life and is easy to replace.
5. The intake and exhaust volume of the box can be adjusted from the temperature control panel.
6. Independent temperature limit alarm system, which automatically interrupts when the temperature exceeds the limit to ensure the safe operation of the experiment without accidents. (optional)
7. Can be equipped with a printer or RS485 interface, used to connect to a printer or computer, and can record changes in temperature parameters. (optional)
Principle
The blast drying oven is composed of a fan that can continuously operate at high temperature and a suitable air duct through the hot air circulation system to improve the temperature uniformity in the working room. The microcomputer P.I.D temperature controller is used for precise temperature control, and the air inlet and exhaust volume in the box can be adjusted from the temperature control panel.
Applications
Industrial and mining enterprises, laboratories, R & D institutions
Steps
1. Power supply voltage AC 220V 50Hz
2. Set the required Temperature range (RT + 10~ 200 ℃)
3. Set Timer Range 1~ 5999min
4. Start the device and start working
5. Adjustable air intake and exhaust through the temperature control panel
6. Turn off the equipment after the work is completed
Notice
• Power supply voltage meets AC 220V 50Hz requirements before use
• Temperature range is between RT + 10~ 200 ℃
• Regularly check the condition of the sealing strip to ensure the sealing performance
• Pay attention to safety protection during high temperature operation
• Optional independent temperature limit alarm system can improve safety
• Keep equipment well ventilated
