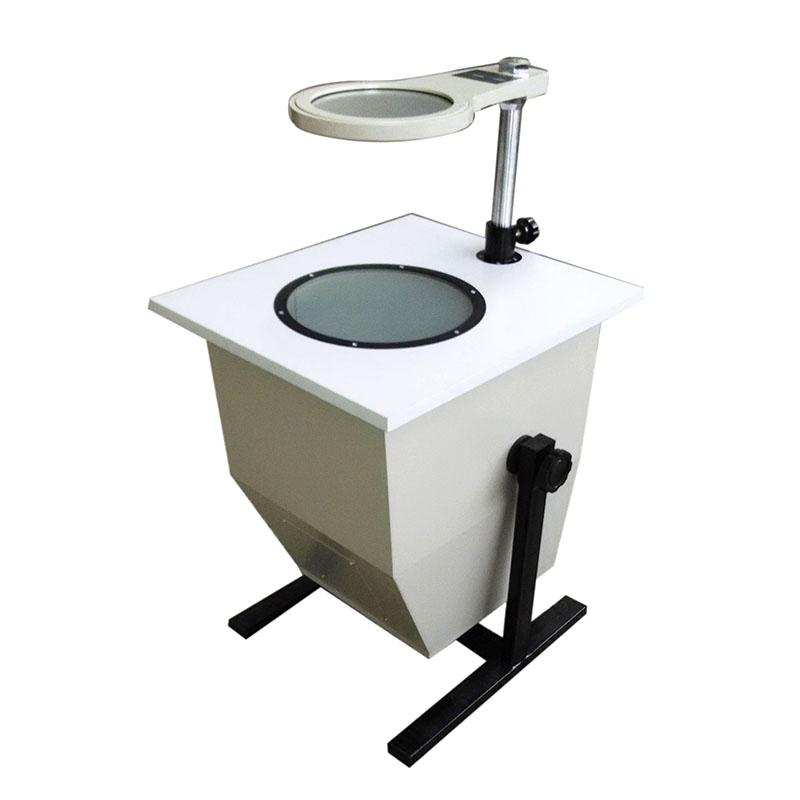

SUOGUANG WYL-2A Stress Meter Glass internal stress Detector, polarized light interference full-wave plate

Name: SUOGUANG WYL-2A Stress Meter Glass internal stress Detector, polarized light interference full-wave plate
Brand: Suoguang
SKU: NB009356
Price: 994.0 USD
Availability: InStock

$ 994.00Ex works

Using the principle of polarized light interference, equipped with a 560nm full-wave plate, the light diaMeter of the Analyzer is 150mm, which can quickly and continuously analyze the internal stress of transparent materials and support qualitative or semi-Basis Weight measurement.

Model

WYL-2A

Get Quote

Category : Refractometer

Brand : Suoguang

SKU : NB009356

Service :The delivery and service By NBCLab.Com

Overview

The SUOGUANG WYL-2A stress analyzer is used to rapidly and continuously analyze the internal stress mass of Optical inspection Glass, Glass products or Miscellaneous transparent materials by observing the birefringence phenomenon of the sample.

Features

1. Adopt the principle of polarized light interference 2. Equipped with a full-wave plate, it can be qualitatively determined according to the interference color sequence in the polarization field or the internal stress value of the semi-Basis Weight measurement Glass

Principle

The birefringence phenomenon of the sample is observed by the principle of polarized light interference, and the internal stress of the material is analyzed by using the full-wave plate and the interference color sequence in the polarization field.

Applications

Optical inspection Glass, Glass products, transparent materials

Standards

Not mentioned

Steps

Not mentioned

Notice

Not mentioned

Stress measurement Range
≤560nm
full wave plate optical path difference
560nm
Transparent aperture
Φ150mm
Glass pass diameter of countertop
Φ220mm
standard film
lambda/8-lambda (divided into 8 * 2)
mass
21kg
Dimension
62cm*50cm*75cm
Illuminant
12V／100W
Power Supply
220V
