Overview

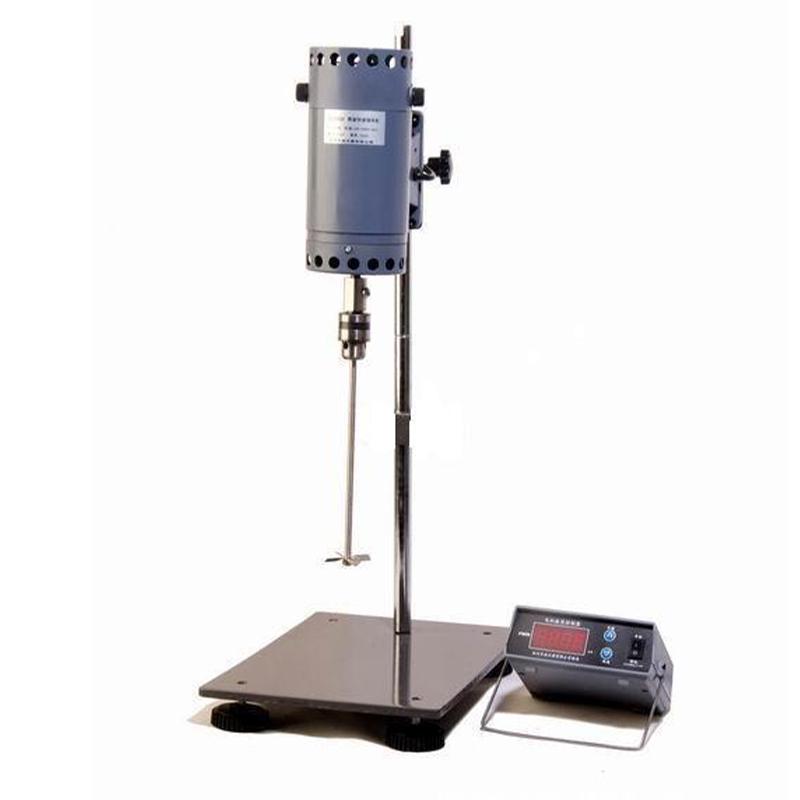

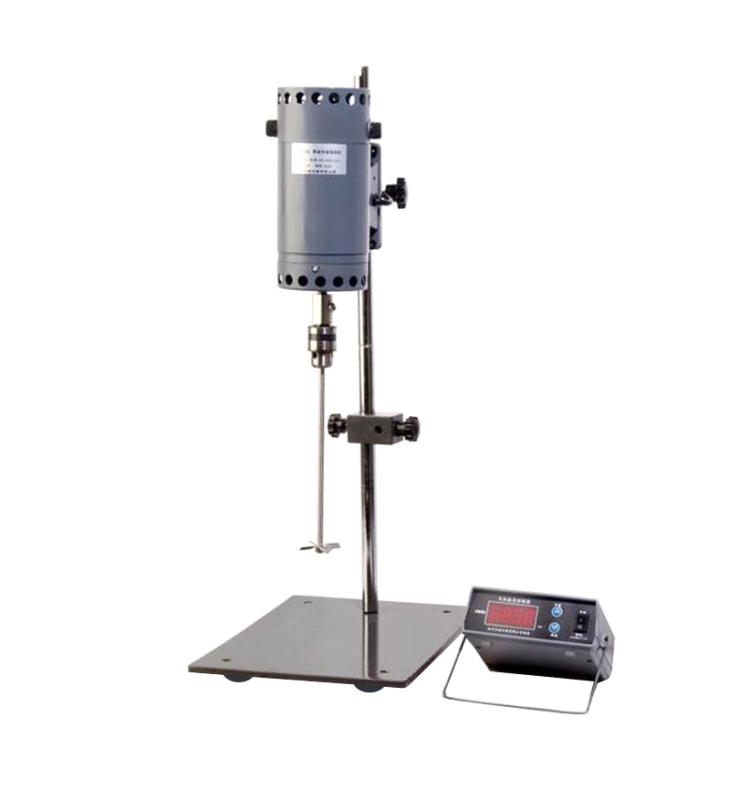

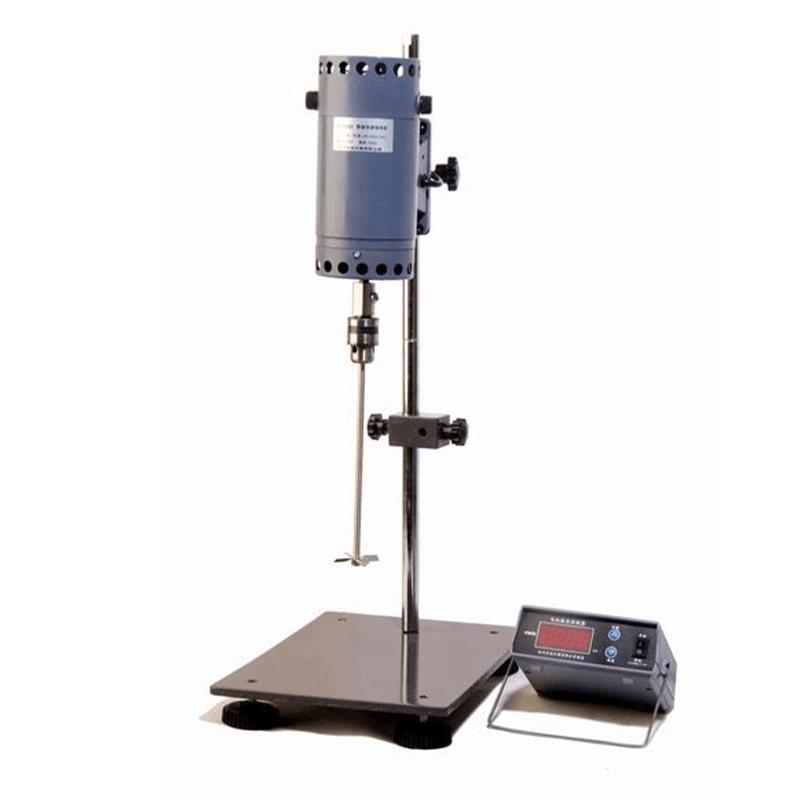

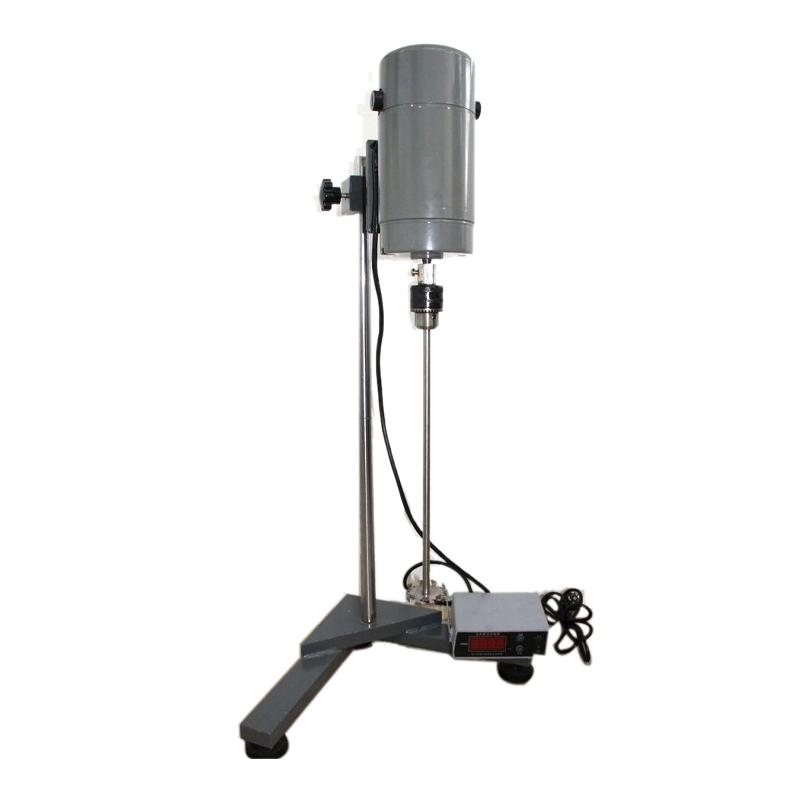

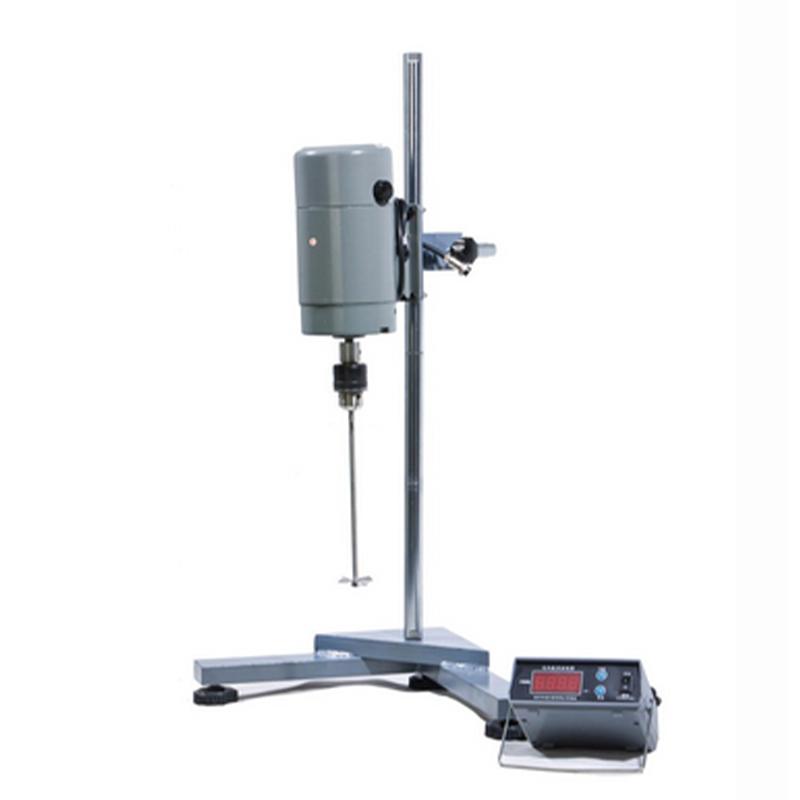

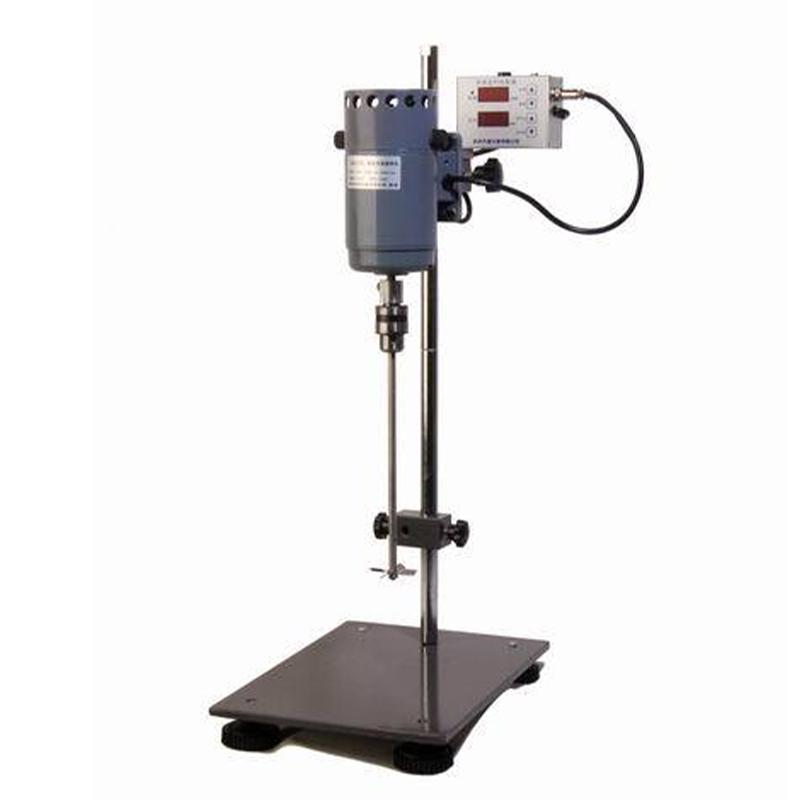

QIWEI JB-60D Stirrer (digital display constant speed) is a laboratory Stirrer with high Rotation speed, high output power, low noise, reliable operation, smooth speed regulation, easy to use and other characteristics. The Stirrer consists of a series motor with soft mechanical characteristics and a low noise deceleration mechanism. It is equipped with a microcomputer digital display timing control instrument with an output power of 60W.
Features
1. Rotation speed, high output power
2. Low noise and reliable operation
3. Smooth speed regulation, easy to use
4. Equipped with microcomputer digital timing control instrument
5. Impeller of stainless steel
Principle
Stirrer uses an electronic constant force speed control circuit, and the number directly displays the rotating shaft Rotation speed, which can adapt to the different test needs of the laboratory, and can directly calculate the relationship between the stirring, dispersing linear speed and chemical reaction rate according to the displayed rotating shaft speed, providing correct process data for large-scale production. The stirring head generates a swirl/spin tangential high linear speed under the high-speed drive of the motor. Under the action of huge centrifugal force, the material produces strong hydraulic shearing and high-frequency mechanical effects, so that the fluid material can withstand thousands of shearing and high-frequency mechanical effects per minute, so as to achieve the effect of efficient mixing and dispersion.
Applications
Heavy industry, light industry, chemical industry, scientific equipment
Steps
1. Connect the power supply (220V 50HZ)
2. Set the required Rotation speed (100~ 2000rpm)
3. Start Stirrer for mixing or dispersing operations
4. Turn off the power after use
Notice
• Power supply voltage 220V 50HZ
• Rotation speed setting should be within the range of 100~ 2000rpm
• Stirring with Stainless Steel Impeller
• Pay attention to safety during operation to avoid material splashing
