Overview

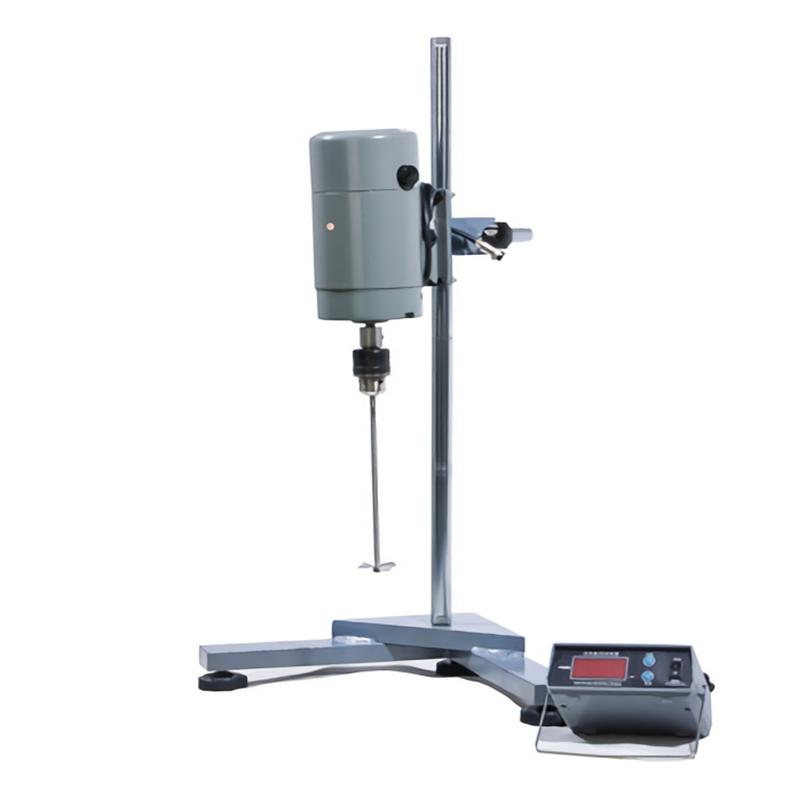

QIWEI JB-500D high-speed Stirrer (digital display constant speed) is a JB series laboratory digital display constant speed timing Stirrer. It is composed of a series motor with soft mechanical characteristics and a low-noise deceleration mechanism. It is equipped with a microcomputer digital display timing control instrument. The Stirrer has the characteristics of high output power, low noise, reliable operation, smooth speed regulation, and convenient use. It is suitable for heavy industry, light industry, chemical industry, science and instrument and other production enterprises.
Features
1. High output power
2. Low noise
3. Reliable operation
4. Smooth speed regulation
5. Easy to use
6. Equipped with microcomputer digital timing control instrument
Principle
The QIWEI JB-500D high-speed Stirrer adopts an electronic constant force speed regulation circuit, and the number directly displays the rotating shaft Rotation speed, which can adapt to the different test needs of the laboratory, and can directly calculate the relationship between the stirring, dispersing linear speed and chemical reaction rate according to the displayed rotating shaft speed, providing correct process data for large-scale production. The stirring head is driven by the high-speed motor to generate a swirl/spin tangential high linear speed. Under the action of huge centrifugal force, the material produces strong hydraulic shearing and high-frequency mechanical effects, so that the fluid material can withstand thousands of shearing and high-frequency mechanical effects per minute, so as to achieve the effect of efficient mixing and dispersion.
Applications
Heavy industry, light industry, chemical industry, scientific equipment
Steps
1. Connect the power supply (220V 50HZ)
2. Set the required Rotation speed (100~ 2000rpm)
3. Install stainless steel stirring paste (φ 8 * 300mm)
4. Start the equipment for mixing operation
Notice
• Power supply voltage 220V 50HZ
• Rotation speed setting should be within the range of 100~ 2000rpm
• Using stainless steel stirring pulp, the specification is φ 8 * 300mm
• Note that the Dimension of the equipment is 350 * 250 * 750mm, and the weight of the whole machine is 19kg. Ensure stable placement during operation
