Overview

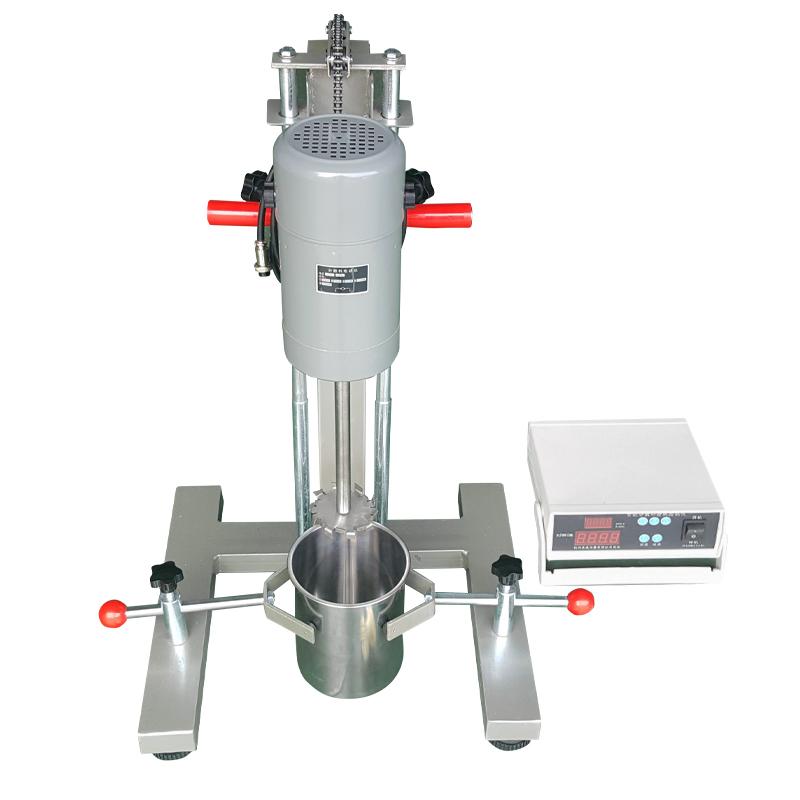

QIWEI FS-1100D Disperser (Digital Display High Speed) is a device that integrates dispersion and stirring functions. The motor Power is 1.1KW, which can efficiently complete the dispersion and homogenization process. It has the characteristics of good mixing effect, easy cleaning and simple and convenient manual lifting. It is widely used in the dispersion and mixing of materials in liquids such as factories, scientific research institutions, Universities & colleges and medical units. This model adopts square column struts and chain lifting design, which is different from the FS-1100T without chains.
Features
1. Integrating dispersion and stirring functions, one machine and one container complete the dispersion and homogenization process; 2. Efficient mixing, good mixing effect and easy cleaning; 3. Manual lifting is simple and convenient; 4. Adopt square column strut and chain lifting design; 5. Digital direct display of shaft Rotation speed for easy monitoring; 6. Can adapt to different experimental needs and provide correct process data; 7. Optional with a variety of Mixing Tanks, such as 2.5 liters single-layer Mixing Tank and 5 liters double-decked Mixing Tank.
Principle
The Disperser adopts an electronic constant force speed control circuit, which directly displays the rotating shaft Rotation speed digitally, and is equipped with a dispersion impeller and a sand grinding disc. Driven by the motor at high speed, the dispersion head produces a swirl/spin tangential high linear speed, and the material experiences hydraulic shearing and high-frequency mechanical effects under centrifugal force, withstanding thousands of actions per minute to achieve efficient mixing, dispersion and homogenization. This helps to provide process data for large-scale production based on the relationship between Rotation speed and material viscosity and chemical reaction rate.
Applications
Factories, Research Institutions, Universities & colleges, Medical Units
Steps
1. Fix the stainless steel material cylinder on the two gripper fixing frames to ensure that the cylinder cover hole is in line with the motor shaft; 2. Connect the motor with the five-core aviation plug on the governor (pay attention to the direction of the notch); 3. Connect the ground wire; 4. Fix the selected sand grinding disc or dispersed impeller with the rotating shaft when using it; 5. Adjust the high position of the rotating shaft and the container, lock the motor seat and the container, put in the material and cover the container cover; 6. Turn on the power supply, turn on the switch, and wait for the display screen to reset to zero. After that, adjust the Rotation speed through the touch button as needed.
Notice
- Explosion-proof workshop should not be used, because the brush has sparks when rotating; - Rotation speed is greater than 4000r/min should not be turned on empty machine; - When the motor brush is less than 10mm, it should be replaced; - Pay attention to the notch direction when connecting the five-core aviation plug; - Make sure the equipment grounding wire is connected correctly.
