Overview

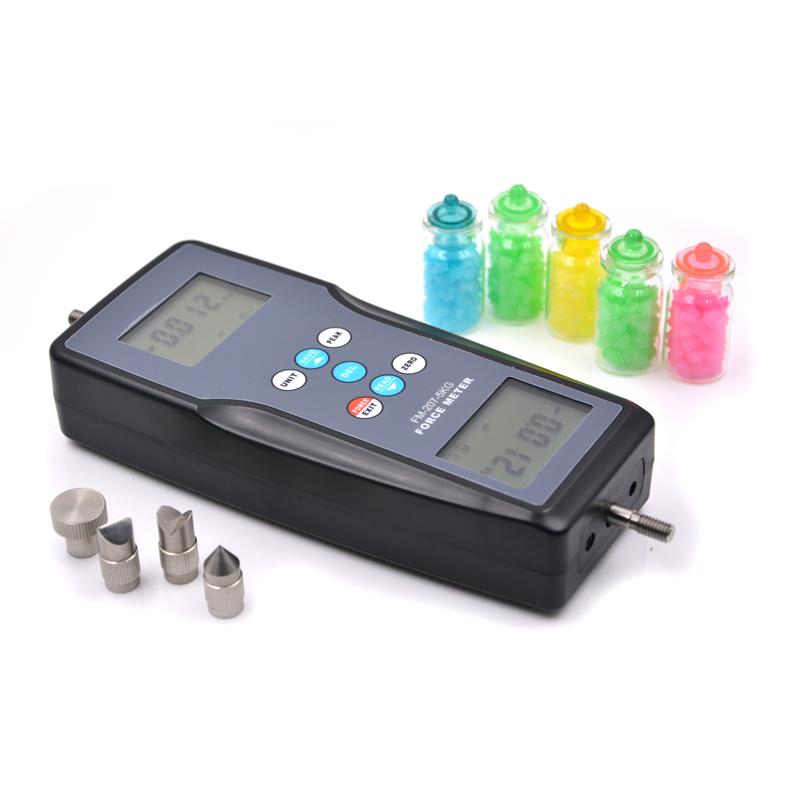

LANDTEK FM-207-200K Portable Force Gauge is a small, simple and multi-functional high Accuracy thrust and tension testing instrument, which is widely used in Electronics, Construction Hardware, Light Industry Spinning & Weaving, Auto Parts, Lighters and other ignition devices, fire equipment, pen making, lock making, fishing gear, chemical industry, power machinery, scientific research institutions and other industries. Push-pull load, plug force test, Destructiveness test, etc.
Features
1. High Accuracy and high resolution.
2. Numbers show, ignoring the difference.
3. N (newton), kg (kilogram), lb (pound) three measurement units are available for selection and conversion.
4. Peak hold function. Keep peak display until manually cleared.
5. Data storage function, capable of storing 99 test values.
6. Data output function, data can be input into the computer through data cable or Bluetooth for various analysis.
7. Green and environmentally friendly, it can be set to automatically shut down without operation for 10 minutes; it can also be shut down manually.
8. Can be powered by alkaline battery; can also be connected to 6V DC power supply.
9. Adopt RS-232 data cable output and connect to PC.
10. Provide Bluetooth data output selection.
Principle

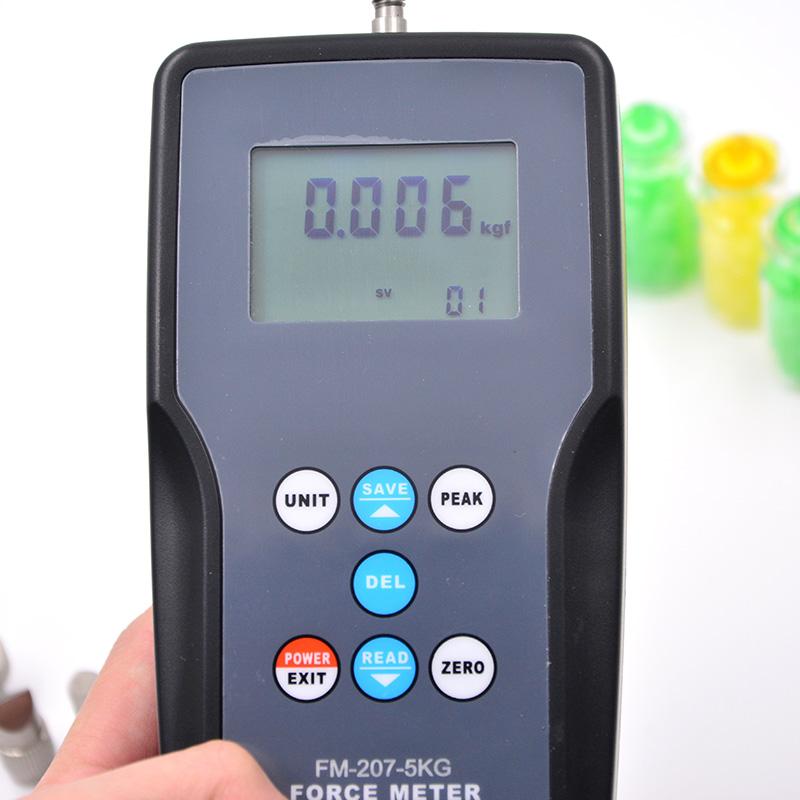

LANDTEK FM-207-200K Force Gauge converts physical signals into electrical signals through Sensor measurement of push-pull loads, and displays the Measured value on a large four-digit LCD screen after processing. Supports peak hold and data storage, and can transfer data to a computer for further analysis via RS-232 data cable or Bluetooth.
Applications
Electronics, Construction Hardware, Light Industry Spinning & weaving, Auto Parts, Lighters and other ignition devices, Fire Equipment, Pen Making, Lock Making, Fishing Tackle, Chemical Industry, Power Machinery, Scientific Research Institutions
Standards
Precision: 0.2 grade
Steps

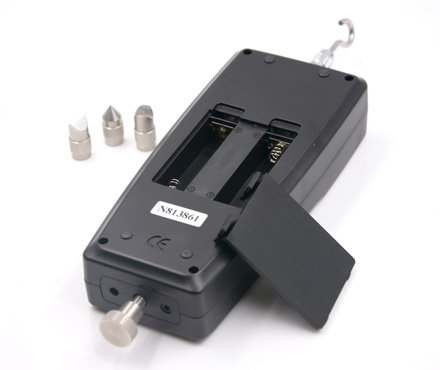

1. Install the battery or connect the 6V DC power supply.
2. Select Measurement unit (N, kg or lb).
3. Perform a push-pull force test, and the instrument automatically displays the instantaneous value or peak value.
4. When using the peak hold function, manually clear to reset.
5. The data is automatically stored or output to the computer through the data cable/Bluetooth.
6. After the test is completed, you can shut down manually or wait for 10 minutes to shut down automatically.
Notice
* Avoid overload use, allowing a load of 150% F.s, and a beep alarm when it exceeds 110% F.s.
* The working environment should be free of source and corrosion medium.
* Operating temperature is 0~ 40 ℃, relative humidity < 80%.
* Make sure the power supply is sufficient before use, you can choose alkaline battery or 6V DC power supply.
* Regularly check instrument accuracy to ensure measurement accuracy.
