Overview
LANDTEK FM-207-500K Portable Force Gauge is a small, simple and multi-functional high Accuracy thrust and tension testing instrument, which is widely used in Electronics, Construction Hardware, Light Industry Spinning & Weaving, Auto Parts, Lighters and other ignition devices, fire equipment, pen making, lock making, fishing gear, chemical industry, power machinery, scientific research institutions and other industries. Push-pull load, plug force test, Destructiveness test, etc.
Features
1. High Accuracy and resolution
2. Numbers are displayed, ignoring the difference
3. Three measurement units of N (newton), kg (kilogram), and lb (pound) are available and can be converted to each other
4. Peak hold function, keep peak display until manually cleared
5. Data storage function, capable of storing 99 test values
6. Data output function, data can be input into the computer through data cable or Bluetooth for various analysis
7. Green and environmentally friendly, it can be set to automatically shut down without operation for 10 minutes; it can also be shut down manually.

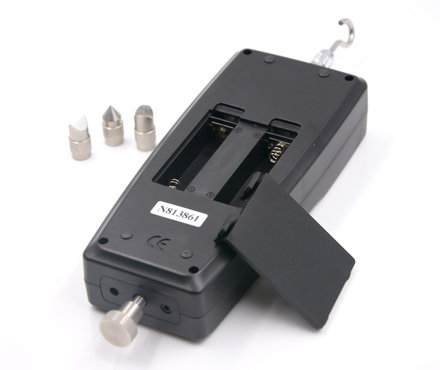

8. Can be powered by alkaline battery; can also be connected to 6V DC power supply
9. Adopt RS-232 data cable output and connect to PC
10. Provide Bluetooth Bluetooth data output selection
Principle

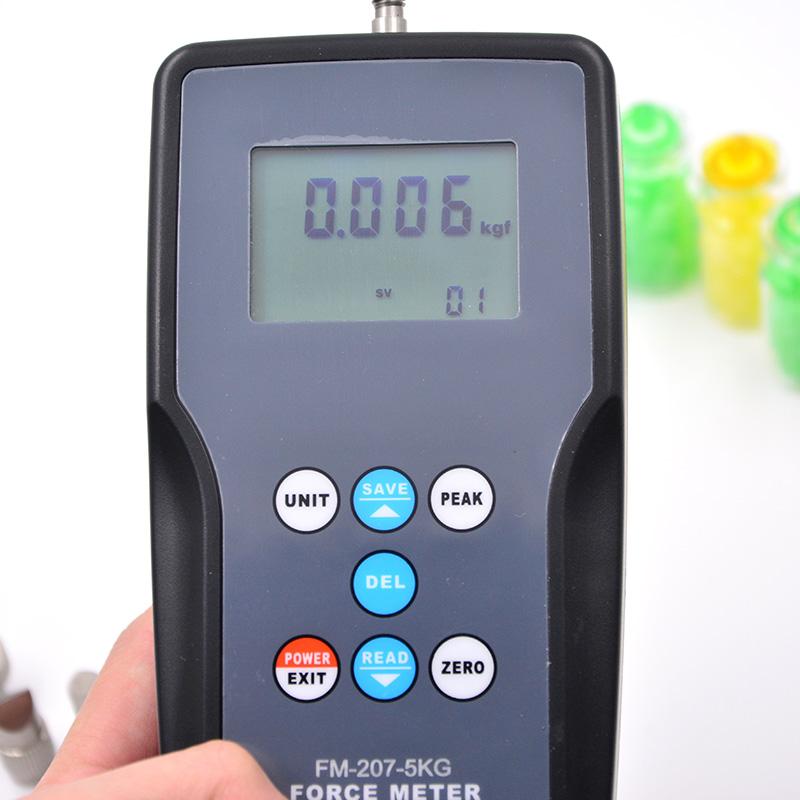

The Force Gauge converts mechanical forces into electrical signals through Sensor measurement of thrust or tensile loads, and displays measurement results on a four-digit large LCD screen after internal processing, supporting peak hold and Data storage functions.
Applications
Electronics, Construction Hardware, Light Industry Spinning & weaving, Auto Parts, Lighters and other ignition devices, Fire Equipment, Pen Making, Lock Making, Fishing Tackle, Chemical Industry, Power Machinery, Scientific Research Institutions
Standards
Precision 0.2 grade
Steps
1. Select Measurement unit (N, kg or lb)
2. Connect the test sample
Step 3 Apply push or pull
4. Read the instantaneous value or peak value on the display
5. Manual clearing using peak hold function
6. Data can be stored or output to the computer via RS-232 data cable/Bluetooth
7. After use, you can manually shut down or wait for automatic shutdown.
Notice
* Avoid overload use, there is a beep alarm when it exceeds 110% F.s
* The working environment should be free of source and corrosion medium
* Operating temperature 0~ 40 ℃
* Allowable relative humidity < 80%
* Ensure sufficient power supply before use, can choose alkaline battery or 6V DC power supply
* It is recommended to shut down when not in use for a long time to save power
