Overview

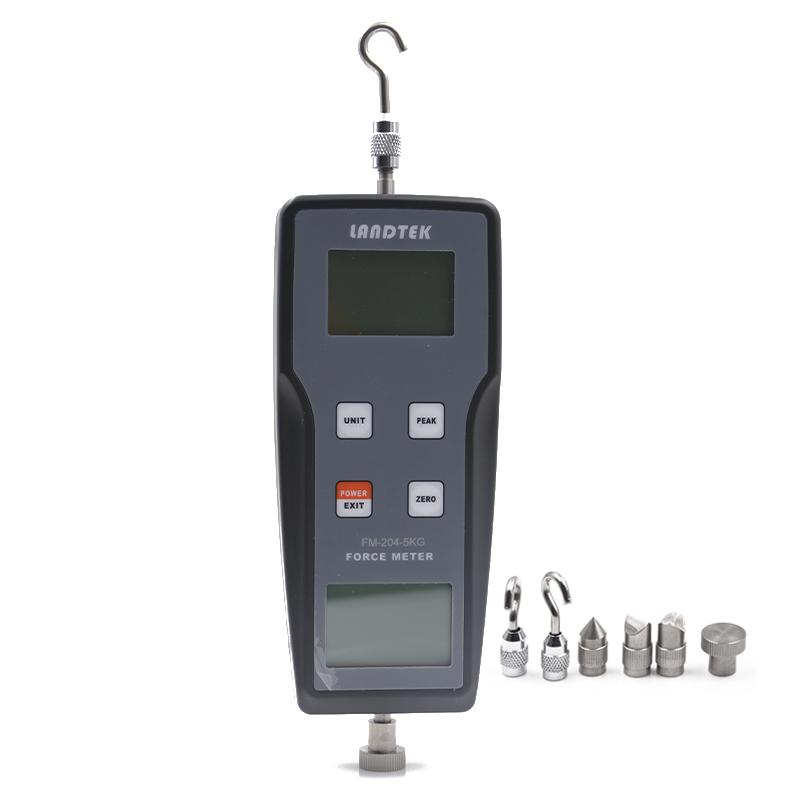

LANDTEK FM-204-5K Push-pull force tester is a small, simple and High Accuracy thrust and tension testing instrument, which is widely used in Electronics, Construction Hardware, Light Industry Spinning & Weaving, Auto Parts, Lighters and other ignition devices, fire equipment, pens, locks, fishing gear, chemical industry, power machinery, scientific research institutions and other industries. Push-pull load, plug force test, Destructiveness test, etc.
Features
1. High Accuracy and high resolution.
2. Numbers show, ignoring the difference.
3. N (newton), kg (kilogram), lb (pound), g (gram) four measurement units are available for selection and conversion.
4. Peak hold function. Keep peak display until manually cleared.
5. Green and environmentally friendly, it can be set to automatically shut down without operation for 10 minutes; it can also be shut down manually.
6. Can use alkaline battery power supply; can also be connected to 6V DC power supply.
Principle
The push-pull force tester converts mechanical signals into electrical signals through Sensor measurement of thrust or tensile loads, and displays them in digital form on the LCD screen after processing. It supports peak holding and various unit conversions.
Applications
Electronics, Construction Hardware, Light Industry Spinning & weaving, Auto Parts, Lighters and other ignition devices, Fire Equipment, Pen Making, Lock Making, Fishing Tackle, Chemical Industry, Power Machinery, Scientific Research Institutions
Standards
Precision: 0.5 grade
Steps
1. Install the battery or connect the 6V DC power supply.
2. Select Measurement unit (N, kg, lb, g).
3. Perform a push-pull load test, and the instrument automatically displays the instantaneous value or peak value.
4. When using the peak hold function, manually clear to reset.
5. After the test is completed, you can shut down manually or wait for 10 minutes to shut down automatically.
Notice
* Avoid overload use, allowing a load of 150% F.s, and a beep alarm when it exceeds 110% F.s.
* The working environment should be free of source and corrosion medium.
* Operating temperature is 0~ 40 ℃.
* Allowable relative humidity < 80%.
* Make sure the power supply is sufficient before use, you can choose alkaline battery or 6V DC power supply.
