Overview

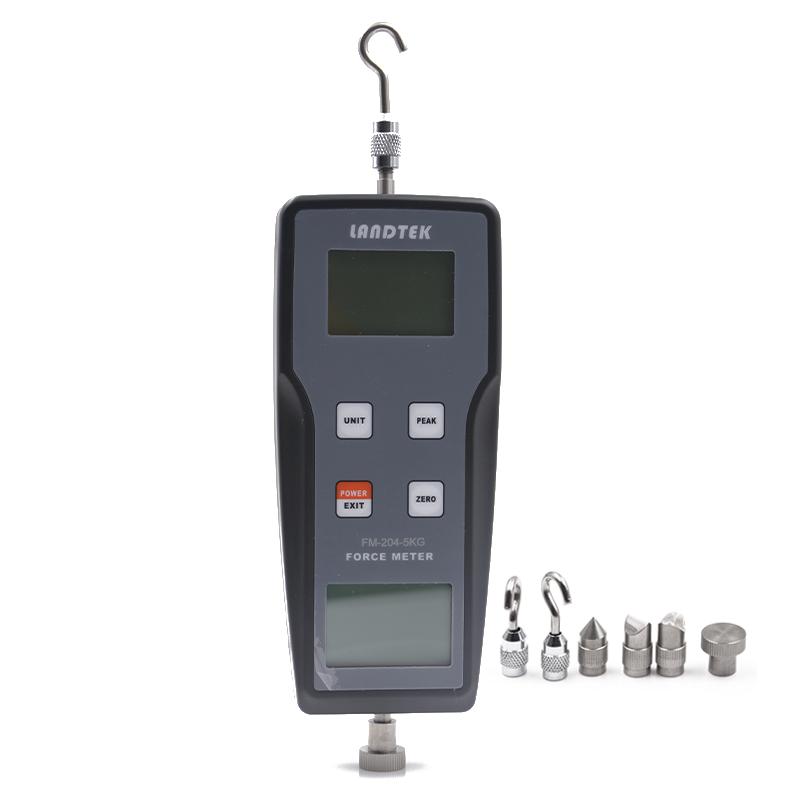

LANDTEK FM-204-1000K Electronic Force Gauge is a small, simple and High Accuracy Thrust and Tension Testing Instrument, which is widely used in Electronics, Construction Hardware, Light Industry Spinning & Weaving, Auto Parts, Lighters and other ignition devices, fire equipment, pen making, lock making, fishing gear, chemical industry, power machinery, scientific research institutions and other industries. Push-pull load, plug force test, Destructiveness test, etc.
Features
1. High Accuracy and resolution
2. Numbers are displayed, ignoring the difference
3. Three measurement units of N (newton), kg (kilogram), and lb (pound) are available and can be converted to each other
4. Peak hold function, keep peak display until manually cleared
5. Green and environmentally friendly, it can be set to automatically shut down without operation for 10 minutes; it can also be shut down manually.
6. Can be powered by alkaline battery; can also be connected to 6V DC power supply
Principle
The Force Gauge converts mechanical forces into electrical signals through built-in Sensor measurement of thrust or pull, displays Measured values in real time through a large four-digit LCD display, supports peak hold function, and can measure peak and instantaneous values.
Applications
Electronics, Construction Hardware, Light Industry Spinning & weaving, Auto Parts, Lighters and other ignition devices, Fire Equipment, Pen Making, Lock Making, Fishing Tackle, Chemical Industry, Power Machinery, Scientific Research Institutions
Standards
Precision: 0.5 grade
Steps
1. Install the battery or connect the 6V DC power supply
2. Measurement unit (N, kg, lb)
3. Perform a push-pull test
4. Measured values (peak or instantaneous) read on the display
5. When using the peak hold function, manually clear the zero
6. Manual shutdown or wait 10 minutes for automatic shutdown after the test is completed
Notice
* The working environment should be free of source and corrosion medium
* Operating temperature 0~ 40 ℃
* Allowable relative humidity < 80%
* Allowable load is 150% F.s, there is a beep alarm when it exceeds 110% F.s
Make sure the power supply is sufficient before use (2 AA batteries or 6V DC power supply)
* Measurement range ： +/- 1000 kgf/+/- 9800N/+/- 2200 Lbf
