Overview

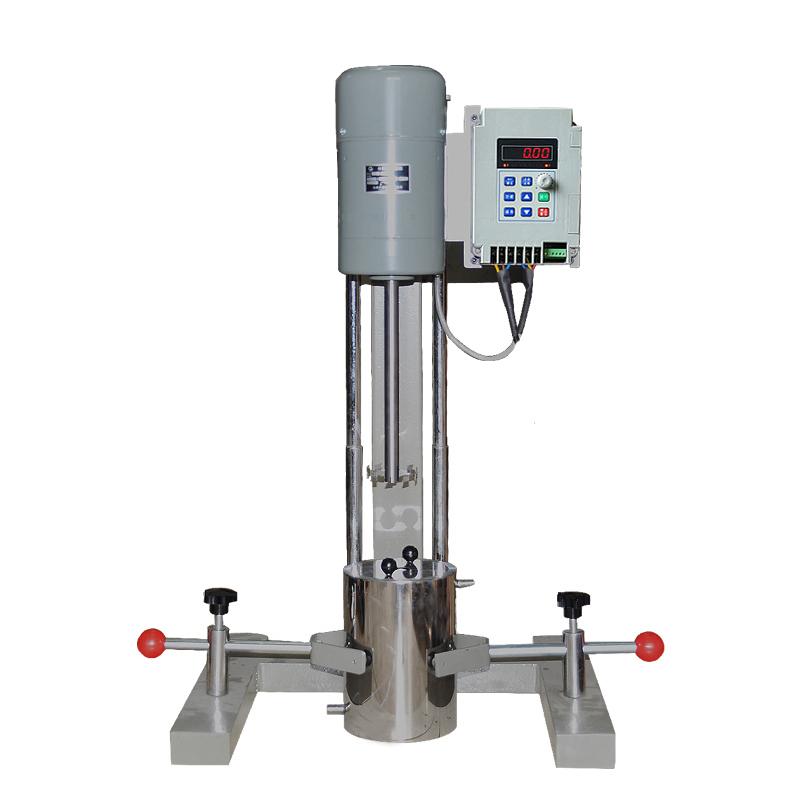

QIWEI GFJ-0.5 (GFJ-550) Disperser (high-speed frequency conversion) adopts frequency conversion controller control, Rotation speed is stable and low noise. The Disperser integrates dispersion, grinding and stirring functions, suitable for paints, inks, Coating and other industries. It can experiment three functions at the same time, save costs and improve experimental efficiency.
Features
1. Adopt frequency conversion controller, Rotation speed is stable, low noise
2. Set dispersion, grinding, mixing functions in one, multi-functional integration
3. With timing function
4. Optional Mixing Tank of different capacities (2.5 liters single-layer Mixing Tank, 5 liters double-decked Mixing Tank)
5. Spring lift, round tube bracket design
6. Motor Power 550W, processing viscosity up to 100000mPa.s
7. Wide speed range (60~ 8000rpm)
Principle
The dispersion head of the GFJ-0.5 (GFJ-550) Disperser (high-speed frequency conversion) generates a swirl/spin tangential high linear speed under the high-speed drive of the motor, and the material generates powerful hydraulic shearing and high-frequency mechanical effects under the action of huge centrifugal force, enabling the fluid material to withstand thousands of shearing and high-frequency mechanical effects per minute, thus achieving efficient mixing, dispersion and homogenization effects.
Applications
Paints, inks, Coatings
Steps
1. Choose the appropriate Mixing Tank according to your needs (standard 1.5L, optional 2.5L single layer or 5L double-decked)
2. Put the material into the Mixing Tank
3. Set the required Rotation speed (within the range of 60~ 8000rpm)
4. If you need timing, set the timing function
5. Start the equipment for dispersion, grinding or mixing operations
6. Turn off the device after the operation is completed
