Overview

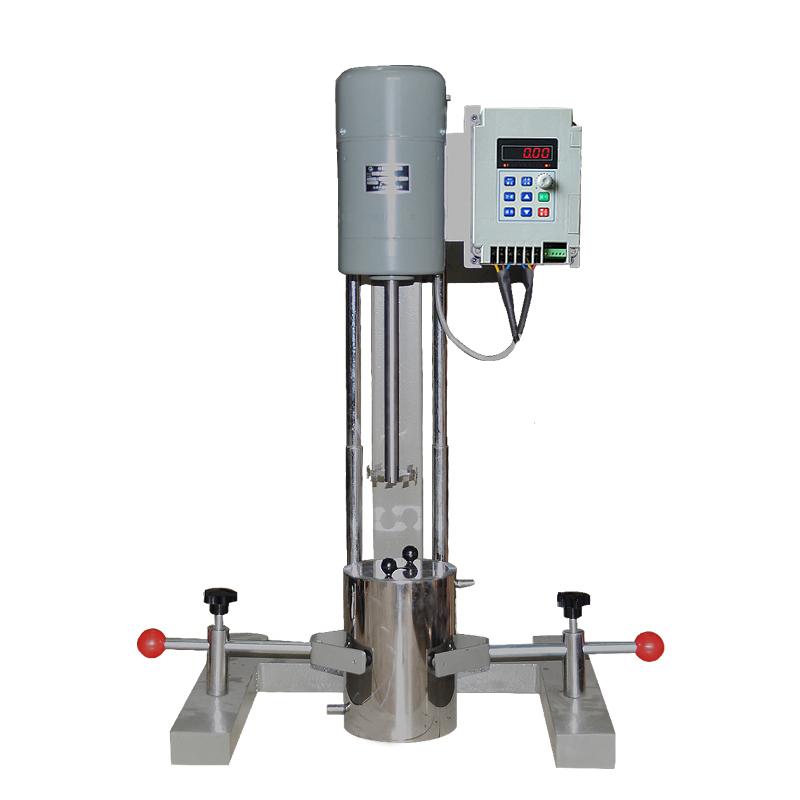

QIWEI GFJ-0.7 (GFJ-750) Disperser is a high-speed frequency conversion dispersion Grinder, which integrates stirring, dispersing and grinding functions and is suitable for laboratory experiments. The motor Power of this equipment is 750W, which is suitable for Coating inks with a viscosity below 10000cp. The structure is simple. It consists of a host, a material tank container and a smart motor speed control instrument. It has the characteristics of energy saving and environmental protection, sufficient stirring and low noise.
Features
1. Set stirring, dispersing, grinding three functions in one
2. High-speed frequency conversion design, energy saving and environmental protection
3. Simple structure, mainly composed of host, tank container, smart motor speed control instrument
4. Stir well and have low noise
5. With timing function
6. Optional 2.5-liter single-layer cartridge or 5-liter double-decked cartridge
Principle
Driven by the motor at high speed, the dispersion head generates a swirl/spin tangential high linear velocity, and the material generates strong hydraulic shearing and high-frequency mechanical effects under the action of huge centrifugal force, enabling the fluid material to withstand thousands of shearing and high-frequency mechanical effects per minute, thus achieving efficient mixing, dispersion and homogenization effects.
Applications
Paints, Coatings, inks
Steps
1. Connect the power supply and ensure that the voltage is 220V 50HZ.
2. Put the material into the Mixing Tank (standard 1.5L, optional 2.5L or 5L cartridge)
3. Use smart motor speed controller to set Rotation speed (range 60~ 8000rpm)
4. Start the equipment for stirring, dispersing or grinding operations
5. If you need timing, set the timing function
6. Turn off the equipment and clean the Mixing Tank after the operation is completed
Notice
• Ensure that the viscosity of the material does not exceed 100000mPa.s
• Power supply voltage check before use 220V 50HZ requirements
• Pay attention to safety during operation and avoid contact with high-speed swirling/spinning parts
• Regularly clean and maintain equipment to ensure stable performance
• Optional accessories need to be configured according to actual needs
