Overview

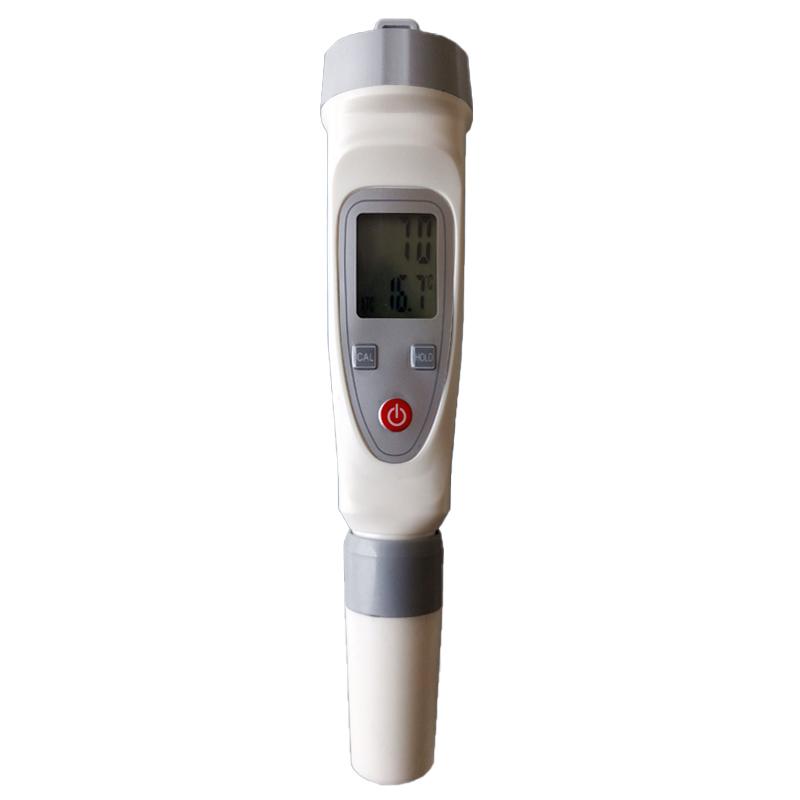

The QIWEI DDB-12L Pen Conductivity Meter is a precision instrument for detecting the conductivity value of solutions, which can display the μS value and the temperature value at the same time. The product is compact, easy to carry, stable performance, easy to operate, Measurement range is 0~ 1999 μS/cm, with automatic temperature compensation function.
Features
1. Adopt microcontroller technology, LCD display
2, automatic temperature compensation and temperature display function, one point correction
3. Integrated digital pen Conductivity detector with Electrode, Electrode can be replaced
4. The shell is waterproof
5. With hold function and low voltage prompt
6 or 5 minutes automatic shutdown function
Principle
The Conductivity Meter through the built-in Electrode measurement solution conductivity value, using microcontroller technology for data processing, LCD display while displaying conductivity and temperature values, and has automatic temperature compensation function to ensure measurement accuracy.
Applications
Chemical, electronics, food and other industries
Steps
1. Boot preparation
2. Perform 2-point automatic correction
3. Electrode immersion in the solution to be tested
4, read the conductivity and temperature values on the display
5. Use the hold function to record data
6. The instrument will automatically shut down after 5 minutes
Notice
• Measurement range limited to 0~ 1999 μS/cm
• Operating temperature range 0~ 50 ℃
• Powered by 3 AG13 button batteries
• Pay attention to the low voltage prompt to replace the battery in time
• Electrode replaceable and needs to be installed correctly
• The instrument is waterproof but still needs to avoid long-term soaking
• Automatic shutdown time is 5 minutes
