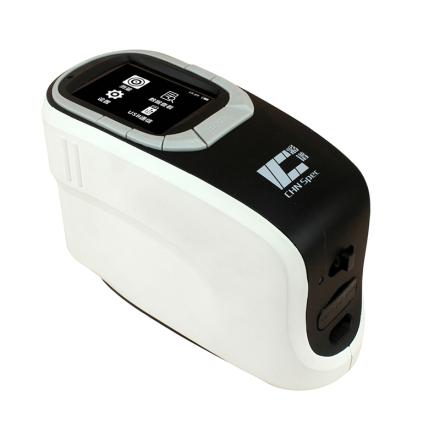

| Product Name | CHNSpec CS-600CG Portable 45/0 ColoriMeter | EVERFINE PSC-30 Portable ColoriMeter |
| Product Price | $6256.00 | Login |
| Details | Details | |
| Model comparison | ||
| Type | Portable | Portable |
| Measurement method | Contact | Contact |
| Caliber | F11mm | F8mm F11mm |
| light source | LED light source | |
| integrating sphere | ||
| Chromatic value repeability | ≤0.03 | ≤0.03 |
| Measurement shape | plane | plane |
| software | computer software | computer software |
| Special features | Gloss measurement | |
| Parameter comparison | ||
| Lighting method | 45/0 (45 ° circular illumination, 0 ° viewing angle) | |
| Sensor | High Sensitivity Silicon Photodiode | |
| Measurement light source | LED Illuminant | |
| Measurement caliber | 11mm | |
| Repeatability | Spectroscopic reflectance: Standard Deviation within 0.08%; Delta E * ab 0.03 (after correction, at intervals of 5s measurement whiteboard 30 Standard Deviation), MAX Maximum 0.050.2GU(0-100GU)；0.2%(100-1000GU) | |
| Operating language | Chinese, English | |
| Interface | USB | |
| viewing angle | 2°； 10° | |
| Available Light Sources | A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30.DLF,NBF,TL83,TL84.U35 | |
| Color difference formula | delta E * ab, delta E * CH, delta E * uv, delta E * cmc (2:1), delta E * cmc (1:1), delta E * 94, delta E * 00, delta Eab (Hunter), 555 shade classification | CIELab、CIELch、CIELuv、CMC、CIE1994、CIE2000、HunterLab、Metamerism |
| data storage | 20,000 articles | |
| Power mode | Battery | |
| Humidity Range | 0-45 ℃, relative humidity 80% or less (at 35 ℃), no condensation | |
| instrument Size | 181*73*112mm | |
| instrument weight | About 800g (without battery) | |
| function | Color, 60 ° Gloss | |
| Wavelength Range | 400-700nm | |
| interval | 10nm | |
| Inter-instrument Agreement | 0.2 Delta E * (average of measurements on 12 BCRA II plates) | |
| color space | CIE-L * a * b, L * C * h, L * u * v, XYZ, Yxy, reflectance, Hunter-lab, Munsell MI, CMYK | |
| Chroma indicator | WI(ASTM E313-00,ASTM E313-73，CIE/ISO，AATCC，Hunter，Taube Berger Stensby),YI(ASTM D1925,ASTM E313-00,ASTM E313-73)Tint (ASTM E313, CIE, Ganz), Metamerism index Milm, colour fastness, discoloration fastness, ISO luminance, A density, T density, M density, E density | |
| Chroma indicator | WI(ASTM E313-00,ASTM E313-73，CIE/ISO，AATCC，Hunter，Taube Berger Stensby),YI(ASTM D1925,ASTM E313-00,ASTM E313-73)Tint (ASTM E313, CIE, Ganz), Metamerism index Milm, colour fastness, discoloration fastness, ISO luminance, A density, T density, M density, E density | |
| Meet the standard | CIE-15-2004；ASTM-D523；ASTM-D2244；ASTM D2457 | |
| Measurement area | 5x10mm | |
| Reflection Range | 0~1000GU | |
| Repeatability | Spectroscopic reflectance: Standard Deviation within 0.08%; Delta E * ab 0.03 (after correction, at intervals of 5s measurement whiteboard 30 Standard Deviation), MAX Maximum 0.050.2GU(0-100GU)；0.2%(100-1000GU) | |
| Reproducibility | 1.0GU(0-100GU) ；1.0%(100-1000GU) | |
| Illuminant life | 10 years 3 million times | |
| display screen | 2.8-Inch full-color true color screen | |
| Battery life | Charging, repeability, continuous measurement 20000 times, 7.4V/6000mAh | |
| Optional accessories | Measurement area locator | |
