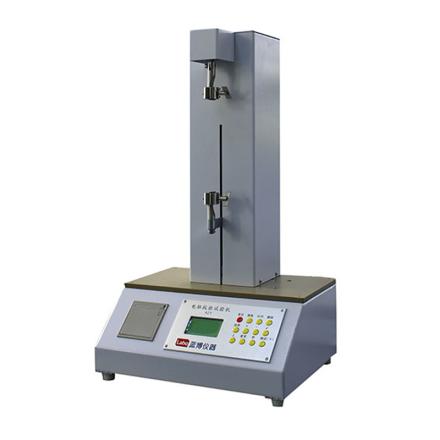

| Product Name | Labo LB-KZY100 Tensile Strength Tester | IMT IMT-Tensile 01 Tensile strength Tester (horizontal high precision) |
| Product Price | In coming | Login |
| Details | Details | |
| Model comparison | ||
| type | vertical | |
| Force range | ≤300N | |
| Parameter comparison | ||
| Indication Error | ±1% | |
| Indication variability | ≤1% | |
| Measurement Range of elongation | 0~21mm | 45-260mm |
| Measuring accuracy of elongation | ±0.1mm | |
| stretching speed | 1~220mm/min | (1~ 500) mm/min stepless speed change. |
| Test speed error | ±1% | |
| Fixture positioning error | ±0.5mm, ±0.1mm | |
| return speed | 450mm/min | (1~ 500) mm/min stepless speed change. |
| Upper and lower chuck spacing | 10~ 200Mm adjustable, 50mm 90mm 100mm 180mm 200mm | |
| Measurement Range | 3~100N | (0.1~ 300) N. Mainly used for paper tensile experiments |
| Force resolution | 1N | ≤0.01N |
| Applicable material | tissue paper | |
| Chinese measurement and control LCD screen service life | About 50,000 hours | |
| power supply | AC 220V +/- 22V 50Hz 0.5A should be reliably grounded | |
| Dimension | 400*230*700mm | 650*500*400mm |
| Net weight | 31kg | |
