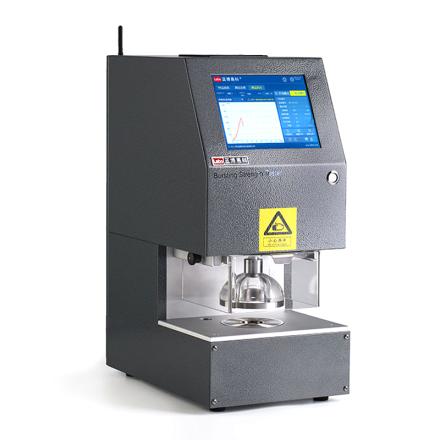

| Product Name | Labo 16032 Flake Burst Tester | IMT MT-Burst 01P Burst resistance Tester (paper type) |
| Product Price | In coming | Login |
| Details | Details | |
| Model comparison | ||
| test subject | Paper | |
| Parameter comparison | ||
| Measurement Range | 20~6000kPa | 10~1600kpa |
| resolution | 0.1kPa | 0.01kpa |
| Indication Error | ±1% | |
| Indication variability | ≤1% | |
| Oil delivery speed | 170±15ml/min10 times/65 seconds | 95±5ml/min |
| clamping force | 0~1400kPa | 100Kpa~ 1200kpa (adjustable) |
| System sealing | 1min pressure drop < 10% Pmax | |
| Upper clamp ring aperture | Φ(31.5±0.05)mm | |
| Lower clamp ring aperture | Φ(31.5±0.05)mm | |
| Film resistance | Raise 10mm, 170kPa~ 220kPa; Raise 18mm, 250kPa~ 350kPa | |
| Oil delivery speed | 170±15ml/min10 times/65 seconds | 95±5ml/min |
| Power supply Voltage | AC100-240V 50/60Hz 0.5A should be reliably grounded | |
| Air source pressure | (0.6~ 0.8) MPa, gas source user-provided | |
| gas consumption | 0.4m³/h | |
| Dimension | 380*240*530mm | |
| Net weight | 33kg | |
