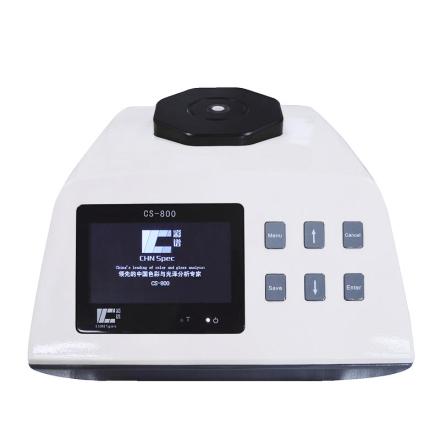

| Product Name | CHNSpec CS-800CG Benchtop 45/0 ColoriMeter | EVERFINE HACA-3800 High Accuracy Color Analyzer |
| Product Price | In coming | $27183.00 |
| Details | Details | |
| Model comparison | ||
| Sample type | Plane Powder Paste | Plane Liquid |
| Measurement aperture | Φ11mm | Φ11mm Miscellaneous |
| Measurement Geometry | 45°/0 | D/8 D/0 |
| Color difference formula | ΔE*ab ΔE*CH ΔE*uv ΔE*94 ΔE*00 ΔE*cmc(2:1) ΔE*cmc(1:1) ΔEab(Hunter) | ΔE*ab |
| Parameter comparison | ||
| Optical inspection structure | 45/0 (45 ° circular illumination, 0 ° viewing angle) | |
| Sensor | High Sensitivity Silicon Photodiode | |
| Field of view | 2°；10° | |
| Illuminant | LED Illuminant | |
| Illuminant life | 10 years 3 million times | |
| Observational Illuminant | A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30.DLF,NBF,TL83,TL84.U35 | LED |
| Wavelength range | 400~700nm | 360~780nm |
| wavelength interval | 10nm | Optional, up to 1nm |
| Measurement caliber | 11mm | |
| Repeatability of chromatic value | Delta E * ab 0.03 (after correction, whiteboard measurement at intervals of 5s 30 Standard Deviation), MAX Maximum 0.05 | Standard Deviation Delta E * ab0.01 or less (10s interval measurement of calibrated whiteboard 30 times); Standard Deviation Delta E * ab0.05 or less (10s interval measurement of blackboard (reflectance 1%) 30 times) |
| Spectroscopic reflectance Repeatability | Standard Deviation within 0.08% | |
| Inter-instrument Agreement | 0.2 Delta E * (average of measurements on 12 BCRA II plates) | ΔE*ab<0.08 |
| Measurement mode | Loaded, test port facing up | |
| Color space | CIE-L * a * b, L * C * h, L * u * v, XYZ, Yxy, reflectance, Hunter-lab, Munsell MI, CMYK | |
| Color difference formula | delta E * ab, delta E * CH, delta E * uv, delta E * cmc (2:1), delta E * cmc (1:1), delta E * 94, delta E * 00, delta Eab (Hunter), 555 shade classification | |
| Whiteness/Yellowness/Blackness | WI(ASTM E313-00,ASTM E313-73，CIE/ISO，AATCC，Hunter，Taube Berger Stensby), YI(ASTM D1925,ASTM E313-00,ASTM E313-73) | |
| Tint/Metamerism | Tint (ASTM E313, CIE, Ganz), Metamerism Milm | |
| Colour fastness/force/coverage | Dip colour fastness, discoloration fastness | |
| Color density | A density, T density, M density, E density | |
| Glossiness/shade | Compatible with 60 ° gloss measurement | |
| Software support | Color management software as standard | |
| Data storage | 20,000 articles | |
| Interface | USB | LAN/USB/WIFI/RS-232 |
| display screen | 5.0-Inch full-color true color screen | |
| Operating language | Chinese, English | |
| Operating temperature | 0-45℃ | |
| Allowable relative humidity | Relative humidity 80% or less (at 35 ° C), no condensation | |
| Power supply method | Charging, repeability | |
| Battery capacity | 7.4V/6000mAh | AC100V~240V 50/60Hz |
| Dimension | 350*300*200mm | 315 * 310 * 680Mm (width * height * length) |
| Net weight | About 4.5kg | |
| Optional accessories | Measurement Area Locator, Micro Printer, Custom Bluetooth | Cuvette, Cuvette fixture, transmission sample fixture (10 mm or 6 mm) |
| Special features | Built-in High Accuracy Gloss measurement Sensor, large capacity lithium battery, continuous measurement 20000 times, connected to PC via USB and Bluetooth | |
