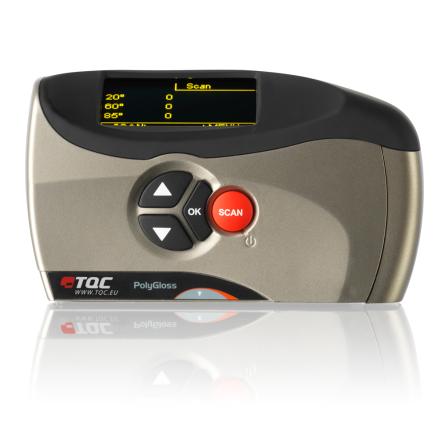

    Product Name TQC sheen GL0030 Gloss Meter KSJ MG268-F2 Smart GlossoMeter
    Product Price $6184.00 Login
    Details Details
    Model comparison
    Type Triple angles Triple angles
    Geometry 20° 60° 85° 20° 60° 85°
    Measuring range 0~2000GU 0~300GU 0~1000GU 0~2000GU
    Applicable industry General General
    Error of indication 0.6GU 1.2GU Miscellaneous 1.5GU Miscellaneous
    Parameter comparison
    Measurement Angles 20°/60°/85° 20°/60°/85°
    Measurement Range 0~2000GU Gs(20°)：0~119.9、Gs(60°)：0~119.9、Gs(85°)：0~119.9；Gs(20°)：120~2000、Gs(60°)：120~1000、Gs(85°)：120~160
    Repeatability 20°：0.4 GU；60°：0.2 GU；85˚：0.2 GU 0.2GU；0.2%
    reproducibility 1.69GU|1.58GU|1.88GU 0.5GU|0.5%
    Measuring Area 5*5mm(20°)；20*9mm(60°)；40*9mm(85°) 9*10mm(20°)；9*16mm(60°)；5*39mm(85°)
    Indication Error 20°:1.2GU；60°:0.6GU；85˚:1.6GU ±1.5；±1.5%
    Graduation 0.1GU|1GU 0.1GU|1GU
    Meet the standard ISO 2813、ASTM D523、 ASTM D2457、ASTM C584、 AS 1580 (602.2)、 BS 3900 D5、DIN 67530、 JIS Z 8741、ISO 7668、MFT 30064 ASTM D523、GB/T13891、GB7706、GB8807、JJG 696-2002
    Interface USB port
    Data storage 2000 readings, maximum 8 batches, 2000 readings per batch
    Operating language English
    Dimension 90*140*45mm 155 * 48 * 75Mm (without base)
    weight 398g 400G (including battery and base)
    power supply 2 AA alkaline batteries One AA (or LR6) alkaline dry battery or rechargeable battery
    software TQC analysis software
    Measurement port Size 10*50mm
    scan function Yes.
    security password protection
    Measurement speed 70 measurements per minute at 3 angles
    Measurement mode MIN minimum, MAX Maximum, Average, Standard Deviation, Number of measurements
