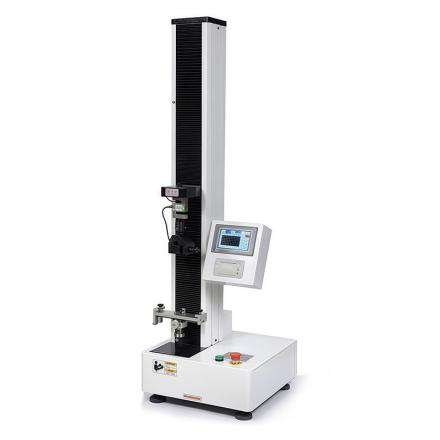

    Product Name JingHuaYiQi LD-BL-A(180°/2kg) 180 ° Peel strength Tester labchen WDB-020（400mm） Peel strength Tester
    Product Price $1625.00 In coming
    Details Details
    Model comparison
    Parameter comparison
    capacity 0-2kg; (2kg, 5kg, 10kg, 20kg, 30kg, 50kg, 100kg, 200kg optional)
    Accuracy grade Level 0.5
    Maximum load 10kg
    Effective force Range 0.02/100-100%
    Test force resolution Maximum load 250,000 code; inside and outside are not divided, and the whole process resolution remains unchanged
    effective test width 100mm
    Efficient stretching of space 400mm
    Speed Range 5~500mm/min 1mm/min~500mm/min
    Speed accuracy +/- 0.5% of the indication
    Measurement accuracy +/- 0.5% of the indication
    Acquisition sensing method High Accuracy Sensor
    Control system Stepper motor + stepper driver
    Software measurement and control system Full Digital Closed Loop Control system, can realize constant stress, constant strain, constant displacement, test function
    Test bench lifting device Computer digital control/manual point control
    Safety protection device Software automatic diagnosis, electronic limit
    re-test Manual can return to the initial position of the test at the highest speed, and automatic can return automatically after the test is over
    Overload protection Maximum load value can be set, automatic protection
    Fixture configuration Customized according to user product sample requirements
    Optional device A set of brand Lenovo LCD computers
    Motor Power 400W
    Host weight About 55kg
