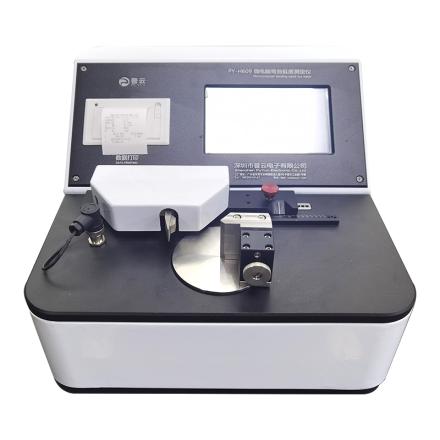

| Product Name | PuYun PY-H609 Bending stiffness Tester | YunDa YD-WTD Bending stiffness Tester (7 inch screen) |
| Product Price | $2736.00 | $2074.00 |
| Details | Details | |
| Model comparison | ||
| Principle | Static Bending | Static Bending |
| Bending Angle | Adjustable Angle (1-90°) | Adjustable Angle (1-90°) |
| Specimen Type | Paper Paperboard Plastic Film Metal Foil Thin Sheet Composite Material | Paper Paperboard Plastic Film Metal Foil Thin Sheet Composite Material |
| Measuring Range | High Range (≥2000 mN) | High Range (≥2000 mN) |
| Clamp Type | Manual Clamp | Manual Clamp |
| Parameter comparison | ||
| Specimen Size | 38 * 70Mm (standard Size) | The old standard 38 * 70mm, the new standard 38 * 80mm, the instrument can be tested; the actual measurement Size |
| Actual measurement Size | 38 * 50Mm (standard) | |
| span Range | Span length 1~ 60mm, 5mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm, 8 gear arm adjustable | 5-10-15 - 20-25-30 - 40 - 50 8 gear arm adjustable |
| Span accuracy | ±0.1mm | |
| Measurement Range | 0~10000mN | (0~ 500) mN.m, (0~ 10000) mN, choose according to actual needs |
| Sensor accuracy | ±0.1% | |
| resolution | 0.01mN | 0.01mN |
| bending angle | 1~ 92 ° stepless adjustable | (1~ 92 ° stepless adjustable), common angle (+/- 7.5 ° or +/- 1 5 °） +/- 0.3 ° |
| Angular accuracy | ±0.1° | |
| Angle measurement | A single test can measure 3 different angles at the same time, and 1-90 ° can be set arbitrarily | |
| Angular velocity control | 0.5 to 50 °/sec adjustable, three test angles and durations independently adjustable | 0.5~ 1000 °/min adjustable |
| Thickness measurement | Suitable for paper and other composites with a thickness of 0.01~ 5.0mm | |
| bending time | Choose different bending times based on material resilience | Choose different bending times according to the resilience of the material and can be set by yourself within the Range of 5~ 35s |
| Specimen fixture | Manual fixture operation, automatic reset after test completion | |
| Operating interface | 7Inch Touchscreen Operating interface, visual menu operation | |
| clamping method | Unlimited blessing, nondestructive continuous clamping | |
| signal output | Standard computer signal output, link computer, computer operating platform, can realize document editing (optional) | |
| Self-calibrating | Equipment can be self-calibrated, standard calibrating tools | Self-calibrating equipment with calibrating tools and weights as standard |
| printout | Modular integrated thermal printer | Modular integrated thermal printer |
